Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 8-113
Service Parts Disassembly

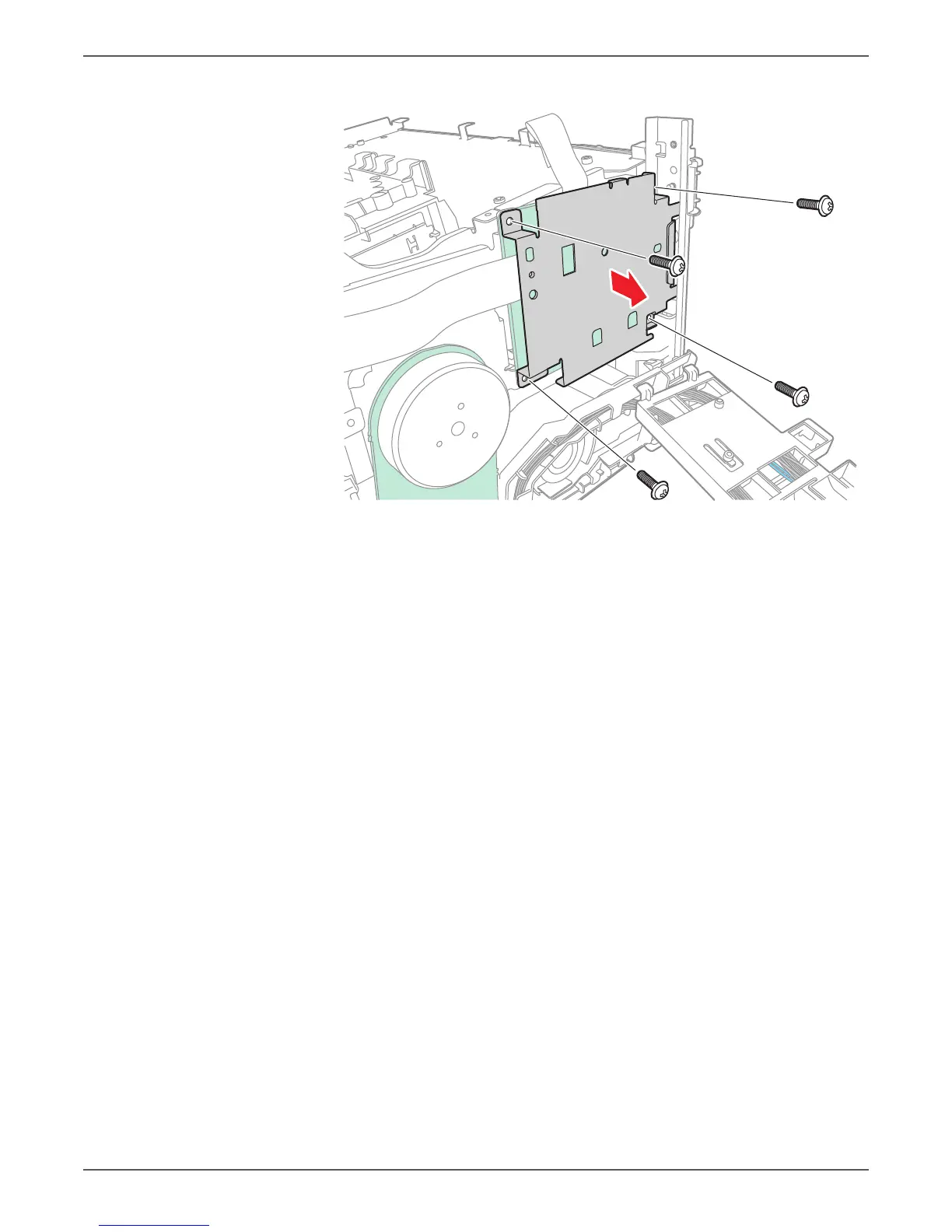

11. Remove 4 screws (silver, M3, 6 mm), and remove the plate from the printer.
12. Disengage the LED/MCU Cable from P/J1 on the LED Driver Board and P/J23
on the MCU Board.
s6000-122
