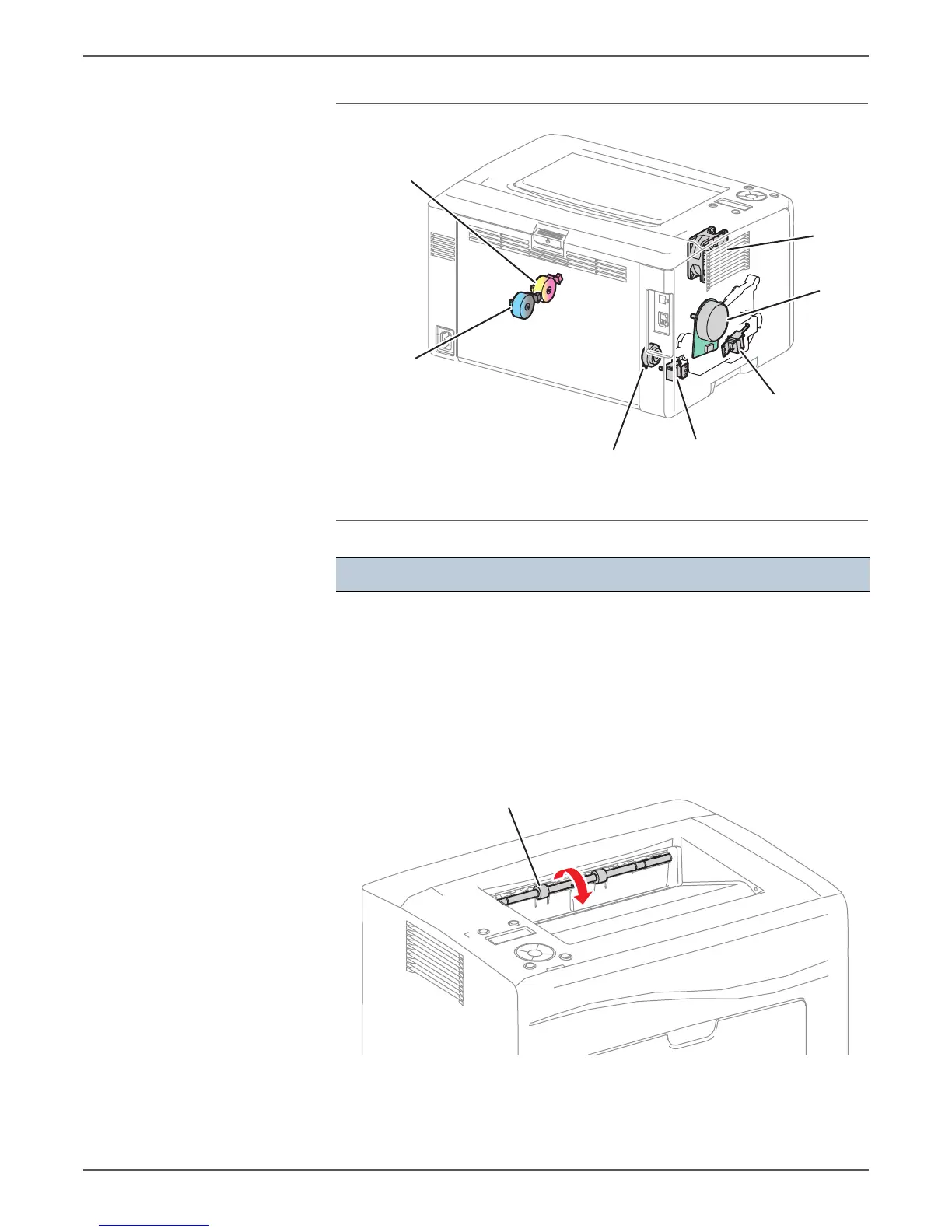

Digital Output Components Locations
Digital Output Test Procedures
Test Procedure
MAIN MOTOR ON FULL
MAIN MOTOR ON HALF
MAIN MOTOR OR SLOW
1. Power on the printer, and start the CE Diag
Too l.
2. Click the CE Diag tab, and then select
Digital Input.
3. Select the MAIN MOTOR ON FULL, MAIN
MOTOR ON HALF, or MAIN MOTOR ON
SLOW test, and click the OK button.
4. Check that the Exit Roller rotates.
s6000-003
Yellow/Magenta
Toner Motor
Feed Solenoid
Regi Clutch
K Mode Solenoid
Main
Motor
Fan
Cyan/Black
Toner Motor
Exit Roller
s6000-147
