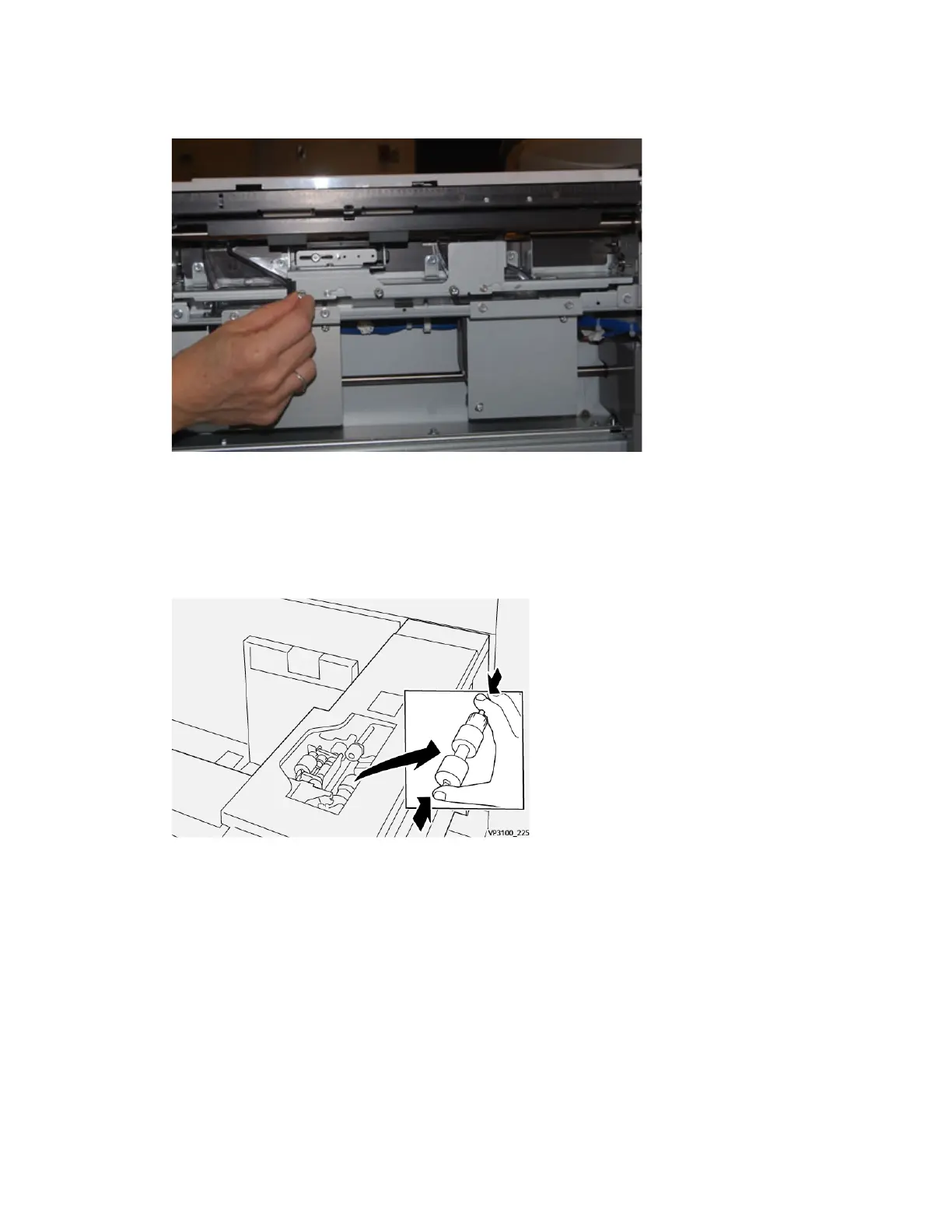

a. Unscrew the three thumbscrews.
b. Slide the separator roll assembly all the way to the left so it is out of the slots.
c. Pull the assembly out towards you until completely removed from the tray and set aside the
assembly.
4. With the separator roll assembly out, replace the feed roll:
a. To remove the feed roll, squeeze both ends of the metal shaft and lift out.
268
