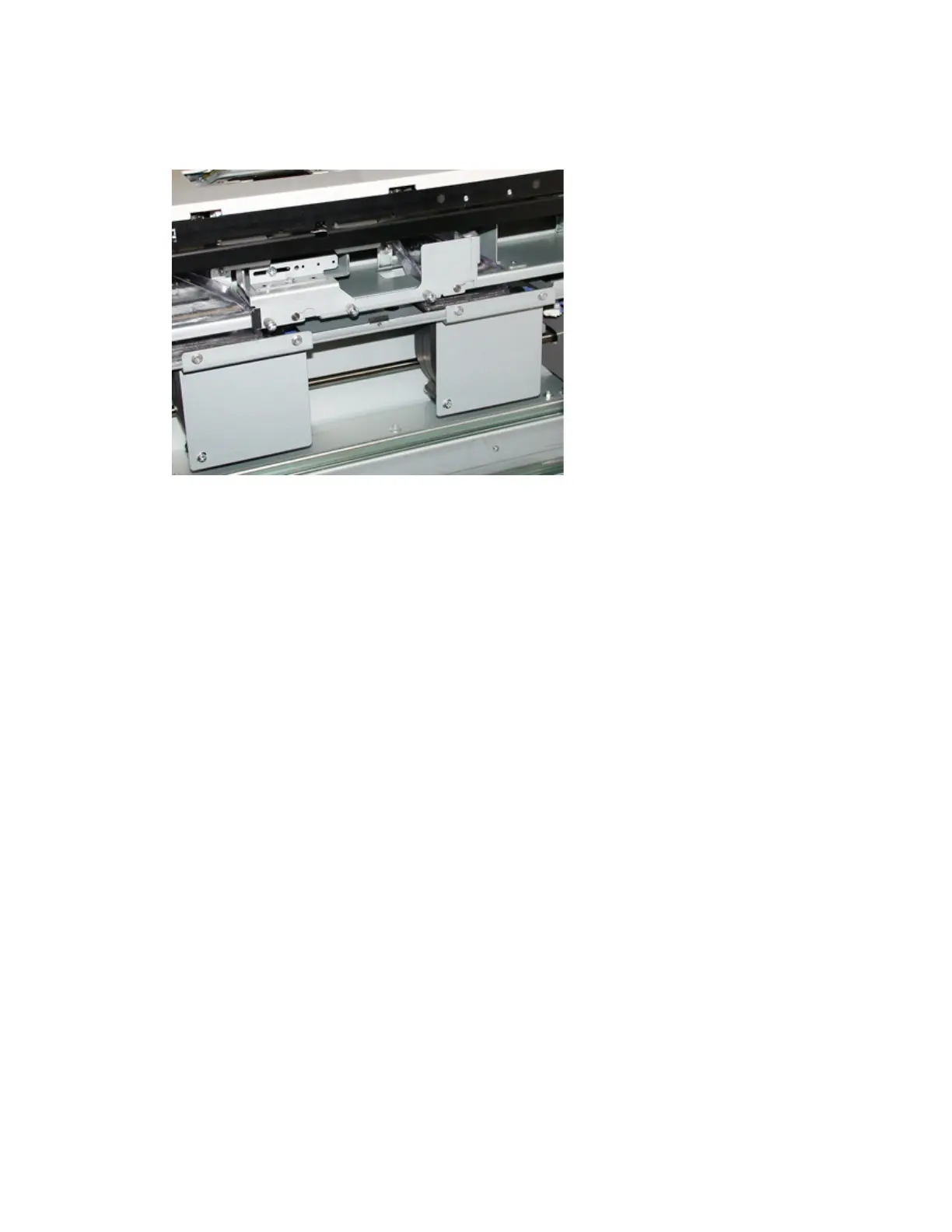

c. Slide the assembly all the way to the right using the pin as a guideline.
d. Ensure the device is all the way into the slots and the three screw areas align.
e. Screw in the three thumbscrews to attach the assembly. Do not over tighten.
7. Close the tray and verify that the tray is operating successfully by feeding paper using that tray.
8. Log in as the administrator or ask the administrator to perform the following steps to reset the
High Frequency Service Item (HFSI) counters to zero (0) for each component.
a. At the control panel, press the Tools button.
b. From the screen that displays, select the Tools icon.
c. Select System Settings→Common Service Settings→Maintenance.
d. Use the up / down arrow buttons to access the next Maintenance screens.
e. Select the Technical Key Operator icon.
The Technical Key Operator feature displays.
f. Select the item that corresponds with the newly-replaced components.
g. Select Reset Current Value. The system resets the High Frequency Service Item (HFSI) to 0.
h. Repeat the previous steps until the counters for all three components are reset to zero (0).
i. Exit administrator mode by pressing the Log In / Out button on the control panel.
When prompted, select Logout.
