5 Measurements and Math Functions
168 InfiniiVision 7000B Series Oscilloscopes User’s Guide
1 Press the Settings softkey to select the source 1 and source 2 channels
for the phase measurement.
The default Phase settings measure from channel 1 to channel 2.

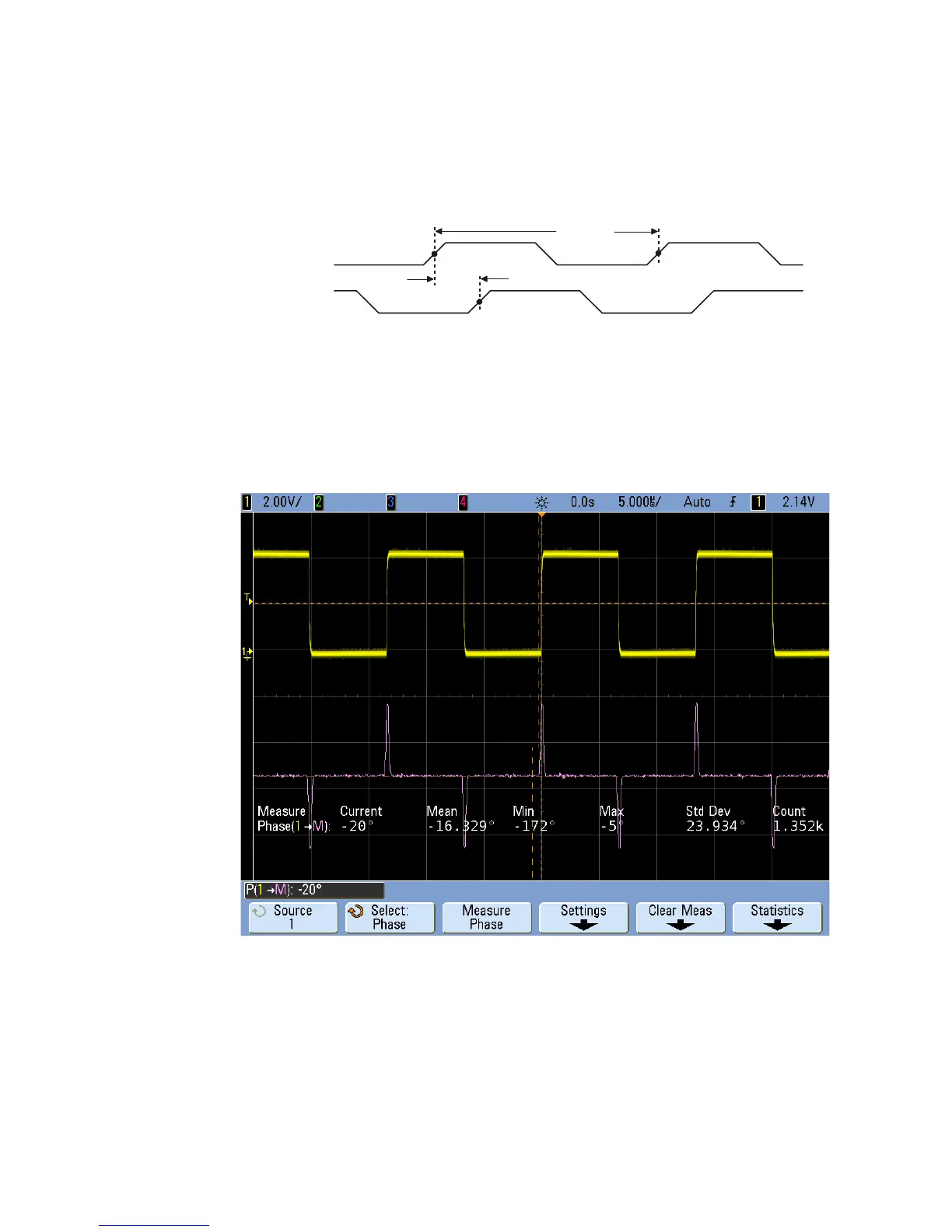

The example below shows a phase measurement between the channel 1
and the math d/dt function on channel 1.
Source 1
Source 2
Delay
Period
