Press to go/Location/Save to softkey (Using the oscilloscope’s File Explorer)
The second softkey from the left in the Save Menu is the file explorer
softkey.
If no USB mass storage device is connected to the oscilloscope, you will
only be able to save Trace and Setup files to the oscilloscope’s internal
memory. You will not be able to save display image files or waveform data
files as described on page 210 unless a USB mass storage device is
connected.

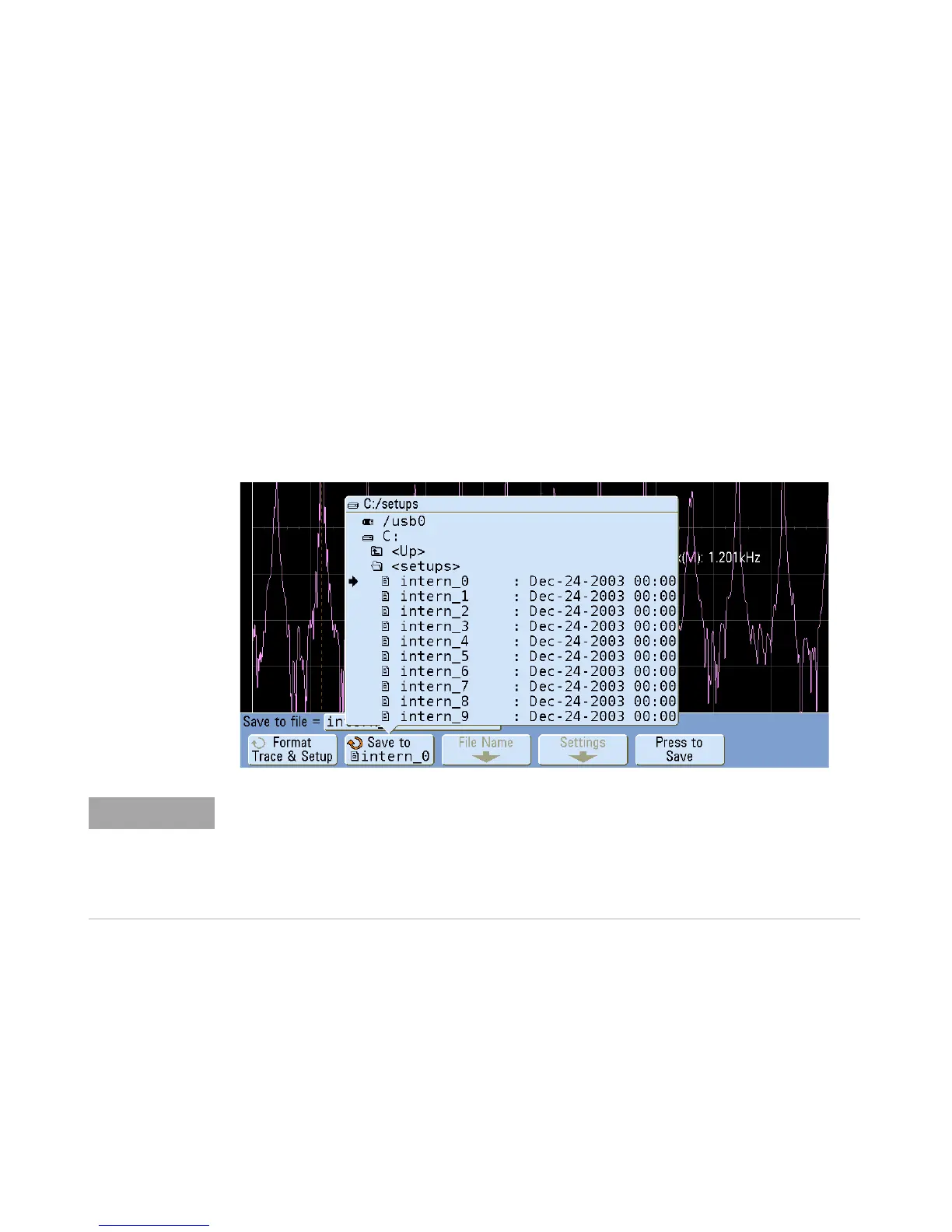

Rotate the Entry knob to align the selection arrow with “C:” and push the
Entry knob to select it. Then rotate and push the Entry knob to select the
“setups” directory, then select a file (intern_n) to be overwritten.
The File Explorer in the Save and Recall Menus can be used to save the following file types:
oscilloscope setup, waveform trace, display image and waveform data. It can be used to
recall oscilloscope setup and waveform trace files.
The File Explorer in the Utility Menu can be used for loading files into the oscilloscope or
deleting files.
