If the signal you are measuring has more than about 1 s of “dead time”
(inactivity), consider selecting Normal trigger mode to prevent
AutoTriggering. Press the [Mode/Coupling] key, then press the Mode softkey
and select Normal.
Navigating segments
Press the Current Seg softkey and turn the Entry knob to display to the
desired segment along with a time tag indicating the time from the first
trigger event.
You can also press the Knob softkey to toggle between Current Segment and
Time. When Current Segment is selected, the Horizontal position control knob
moves the display to the desired segment. When Time is selected, the
Horizontal position control knob moves the display horizontally just as it

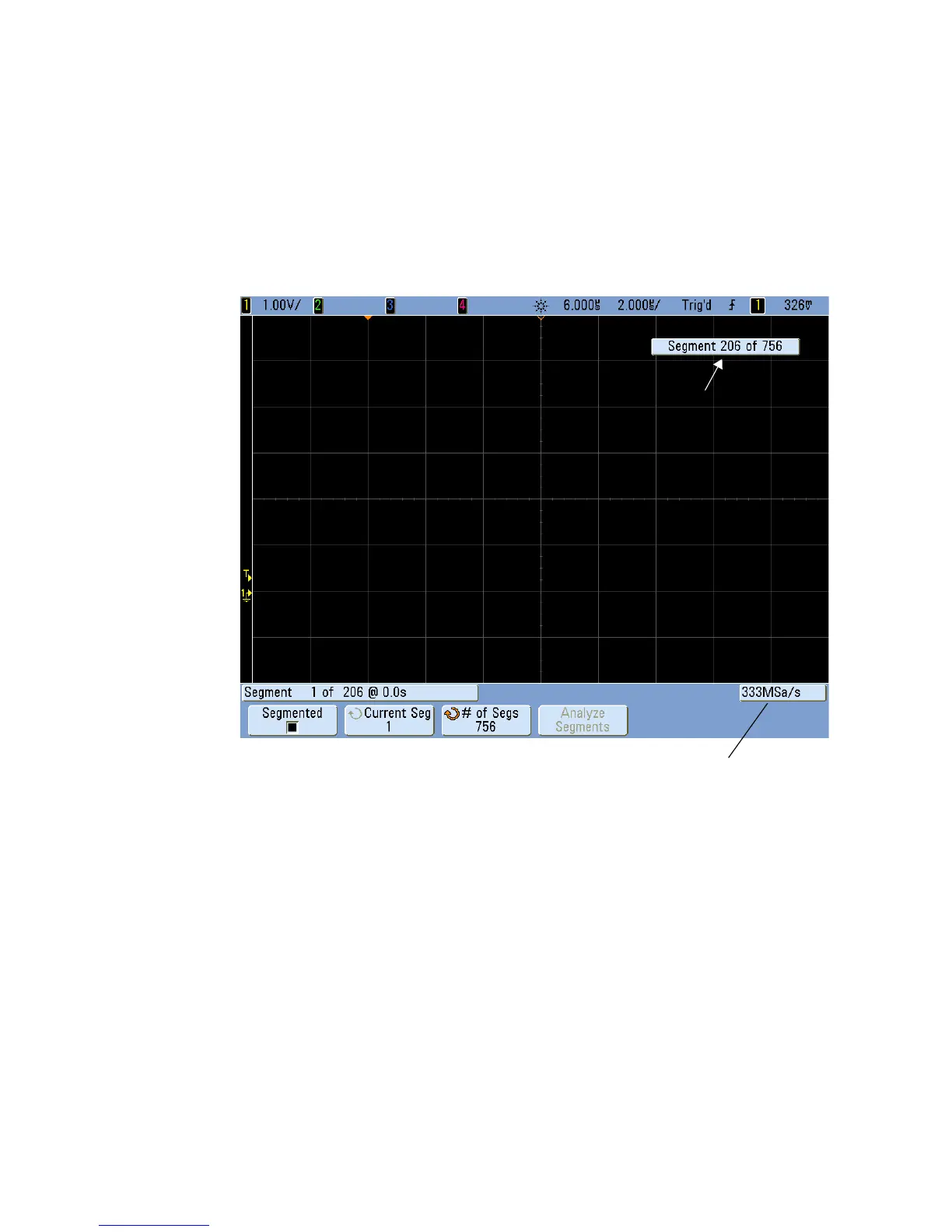

Sample
rate
Progress indicator
