Acquisition Modes 7
InfiniiVision 7000B Series Oscilloscopes User’s Guide 237
Saving data from segmented memory
You can save either the currently displayed segment (Save Segment -
Current), or all segments (Save Segment - All) in the following data formats:
CSV, ASCII XY, and BIN. Be sure to set the Length control to capture
enough points to accurately represent the captured data. When the
oscilloscope is busy saving multiple segments, progress is displayed in the
upper right area of the display.
To select the current segment or all segments, press [Save/Recall] > Save >
Settings > Save Seg. A USB storage device must be connected to the
oscilloscope to enable this Save option. You can also save the screen image
in BMP or PNG formats. For more information see “Save Segment” on
page 212.

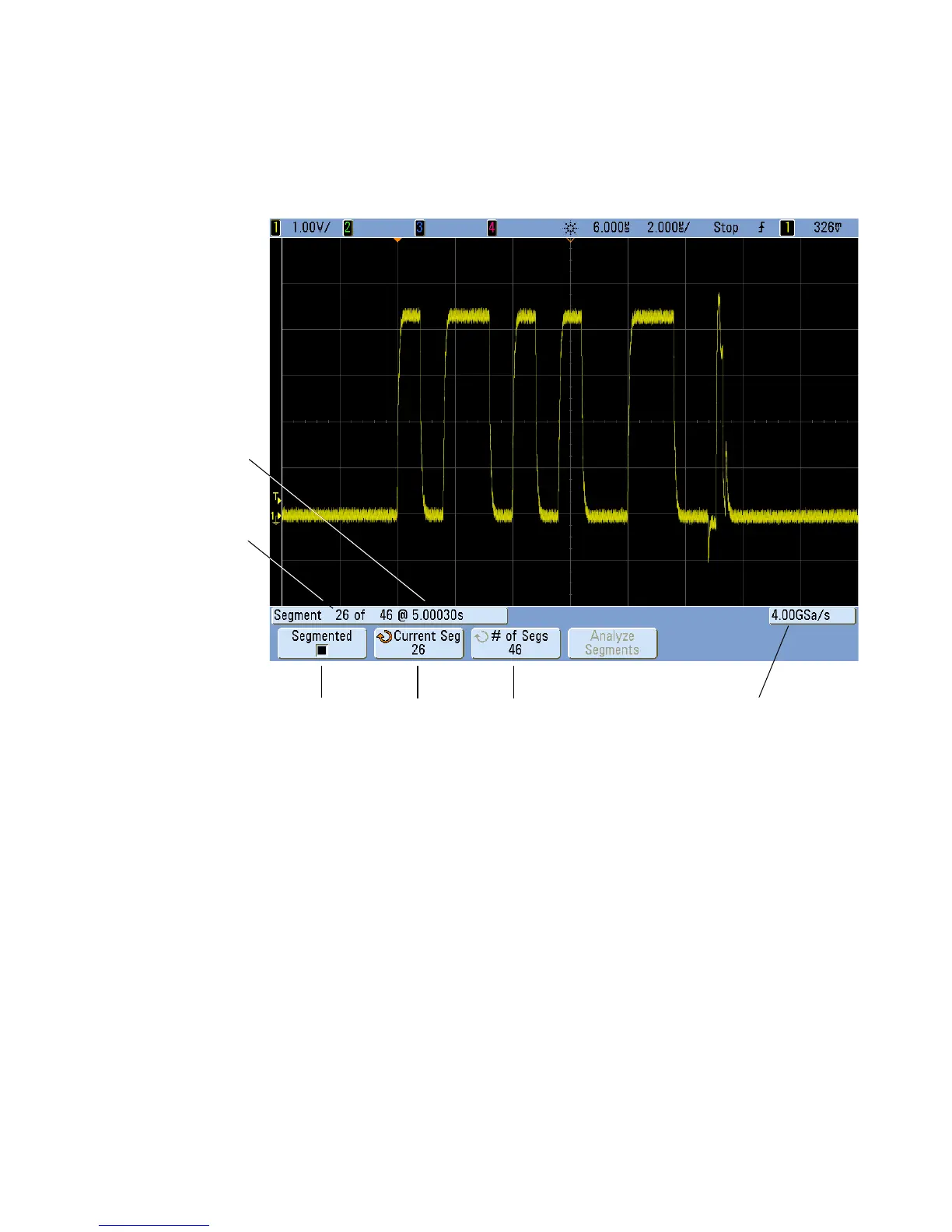

Select
segment to
display
Select
number of
segments
Displayed segment
number and number of
segments acquired
Time (in seconds)
since the first trigger
Sample rate
Switch
segmented
on/off
