8Web Interface
254 InfiniiVision 7000B Series Oscilloscopes User’s Guide

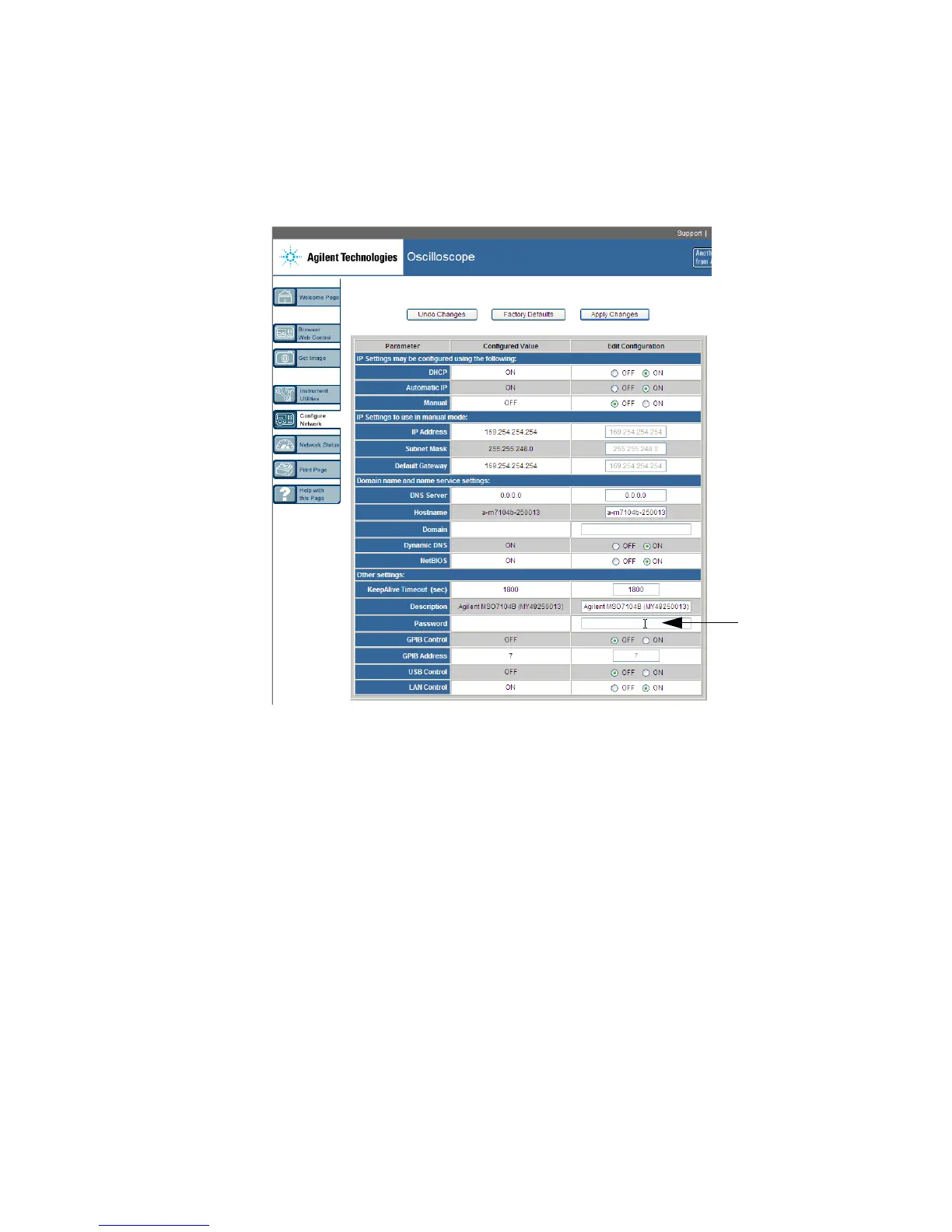

4 Enter your desired password, and click Apply Changes.
When accessing the password protected oscilloscope, the user name is the
IP address of the oscilloscope.
To reset the password
Do one of these things to reset the password:
• Using the keys on the front panel of the oscilloscope, press [Utility] > I/O
> LAN Reset
• Using the web browser select the Configure Network tab, select Modify
Configuration, erase the Password, and select Apply Changes.
