CAN/LIN Triggering and Serial Decode 10
InfiniiVision 7000B Series Oscilloscopes User’s Guide 273

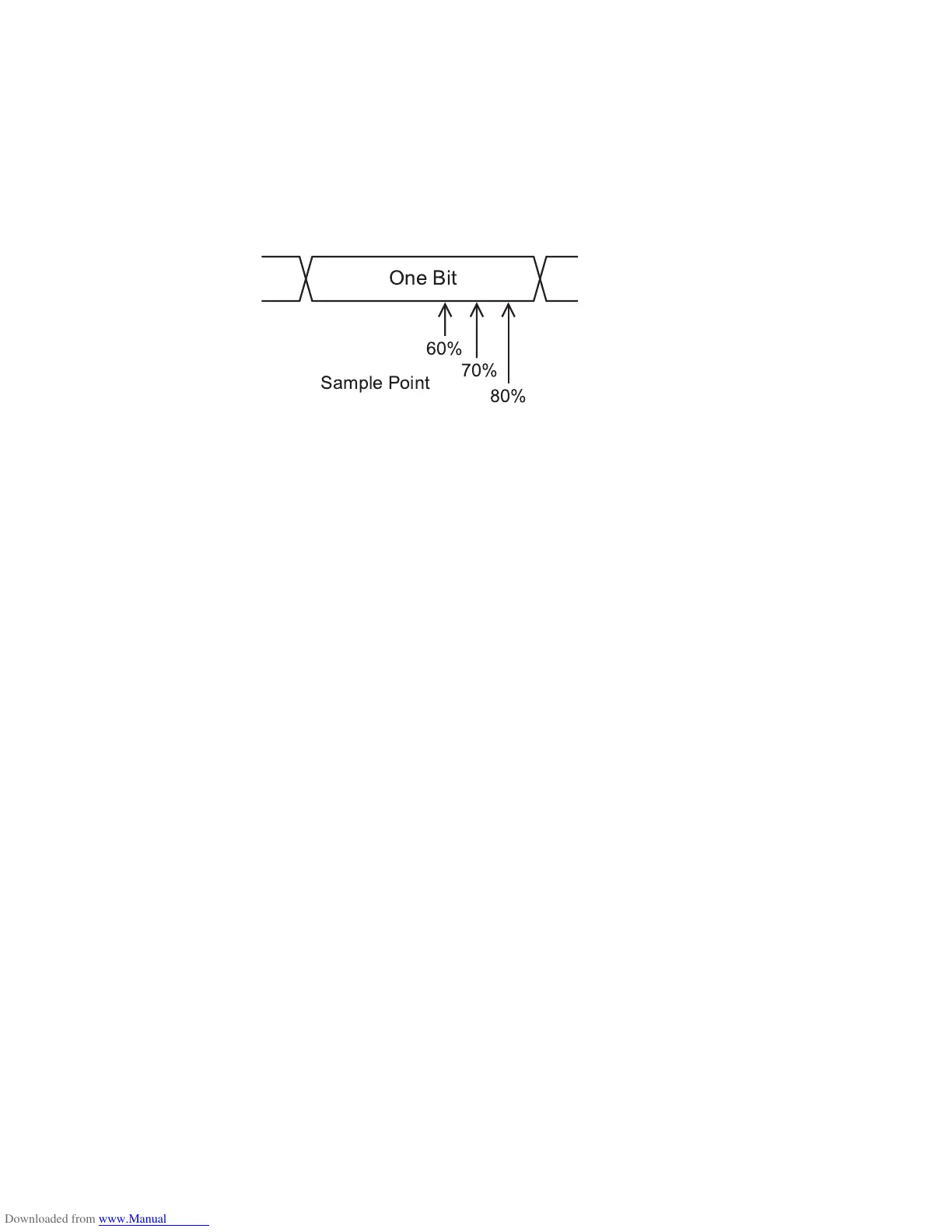

7 Press the Smpl Pt softkey to select the sample point at which the
oscilloscope will sample the bit value.
8 Press the Standard softkey to select the LIN standard your are
measuring (LIN 1.3 or LIN 2.0).
For LIN 1.2 signals, use the LIN 1.3 setting. The LIN 1.3 setting assumes
the signal follows the “Table of Valid ID Values” as shown in section A.2
of the LIN Specification dated December 12, 2002. If your signal does
not comply with the table, use the LIN 2.0 setting.
9 Press the Sync Break softkey and select the minimum number of clocks
that define a sync break in your LIN signal.
