InfiniiVision 7000B Series Oscilloscopes User’s Guide 3

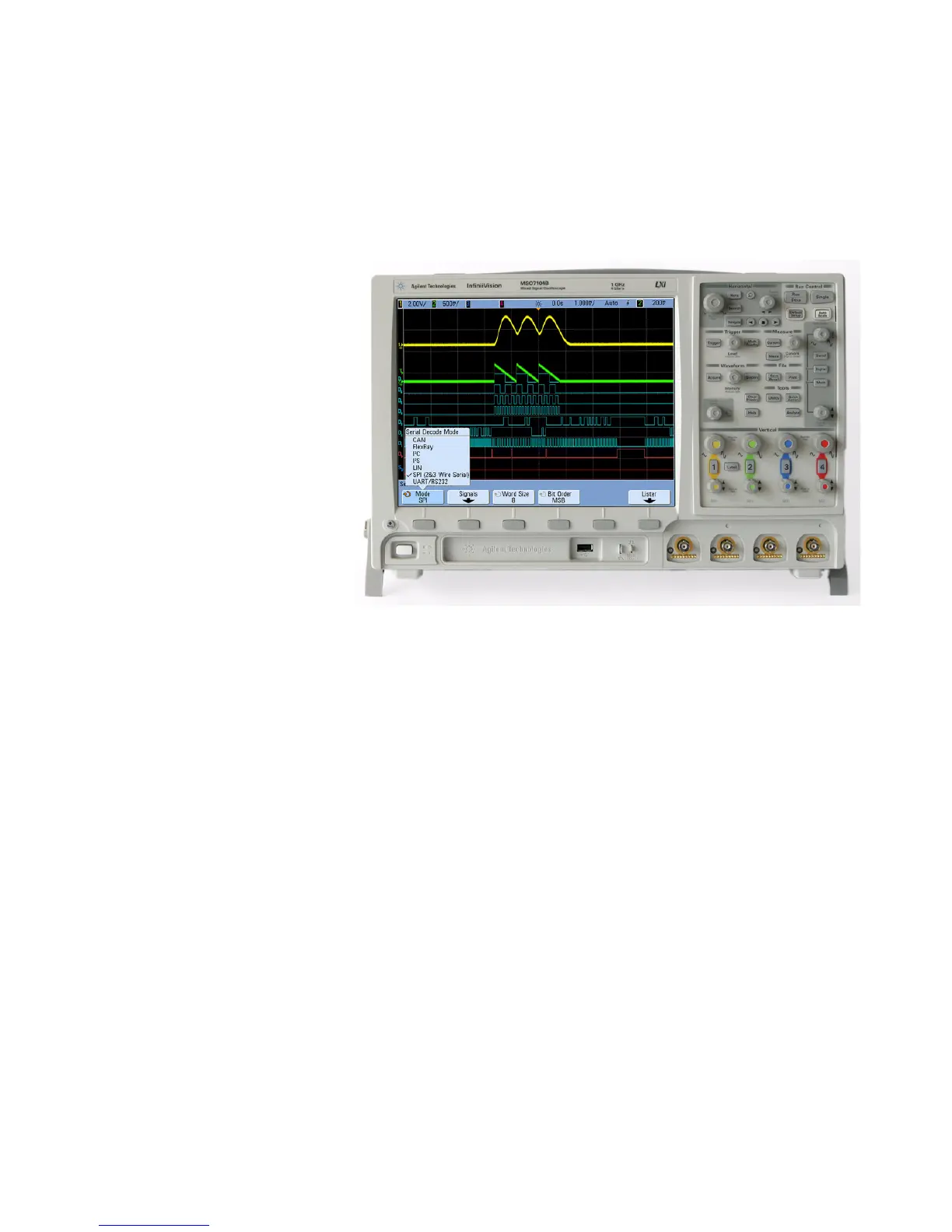

InfiniiVision 7000B Series Oscilloscopes—At a Glance
The Agilent InfiniiVision 7000B Series oscilloscopes deliver
powerful features and high performance:
• 100 MHz, 350 MHz, 500 MHz, and 1 GHz bandwidth
models.
•Up to 4GSa/s sample rate.
• 12.1 inch XGA display.
• Powerful triggering including analog HDTV and USB.
Options for CAN, FlexRay, I
2
C, I
2
S, LIN, MIL- STD 1553,
SPI, and UART/RS232.
• USB and LAN ports make printing, saving and sharing
data easy.
• 2- channel and 4- channel Digital Storage Oscilloscope
(DSO) models.
• 2+16- channel and 4+16- channel Mixed Signal Oscilloscope
(MSO) models.
• An MSO lets you debug your mixed- signal designs using
up to four analog signals and 16 tightly correlated digital
signals simultaneously.
