Agilent Technologies 7000B Series User Manual

Analyzing Data 16
InfiniiVision 7000B Series Oscilloscopes User’s Guide 351
• Mask Title.
• Mask Violation Regions.
• Oscilloscope Setup Information.
Mask File Identifier
The Mask File Identifier is MASK_FILE_548XX.
Mask Title
The Mask Title is a string of ASCII characters.
Example: autoMask CH1 OCT 03 09:40:26 2008
When a mask file contains the keyword “autoMask” in the title, the edge
of the mask is passing by definition. Otherwise, the edge of the mask is
defined as a failure.

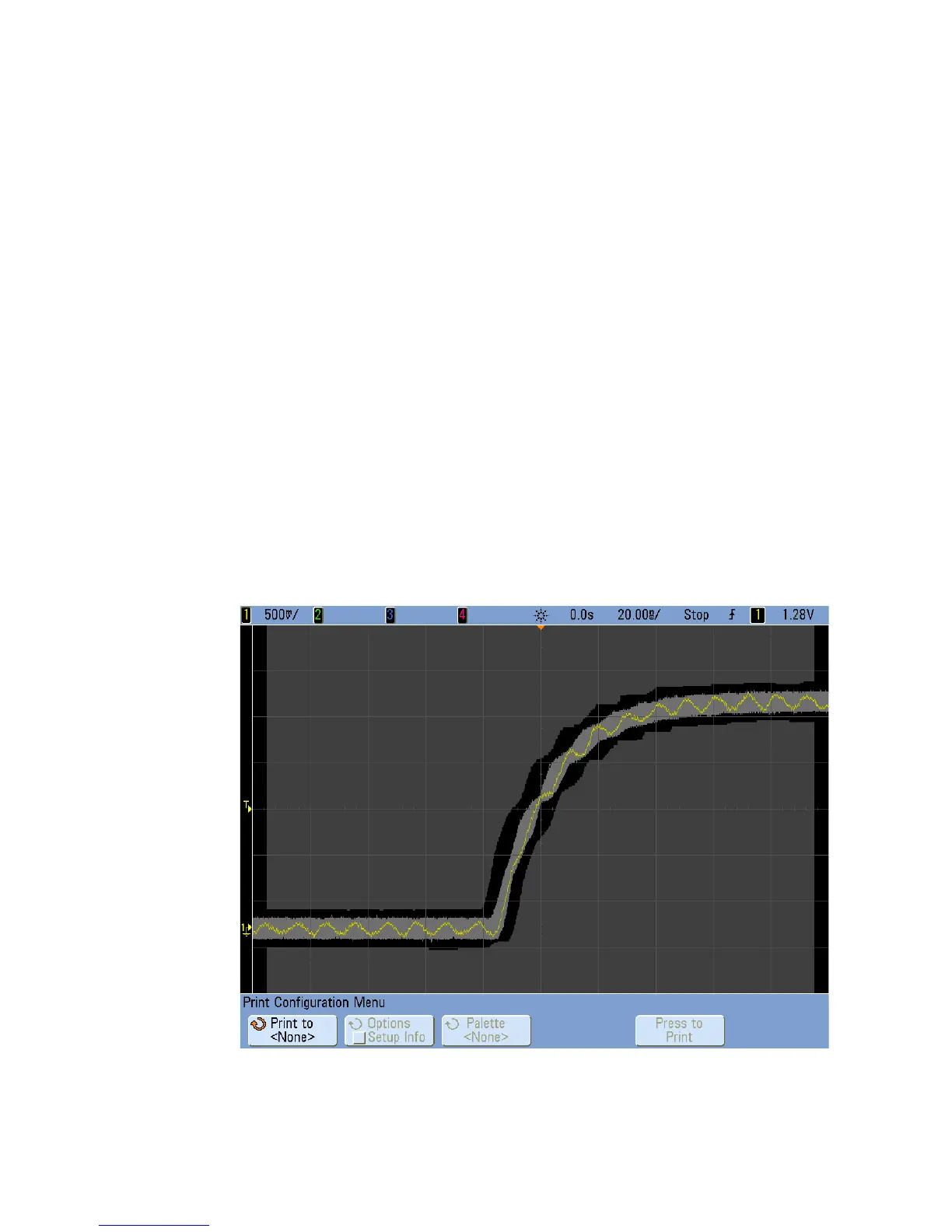

Mask Violation Regions
Region 1
Region 2
