11. TBEI M6x30 screw (x2)
12. Washer (x2)

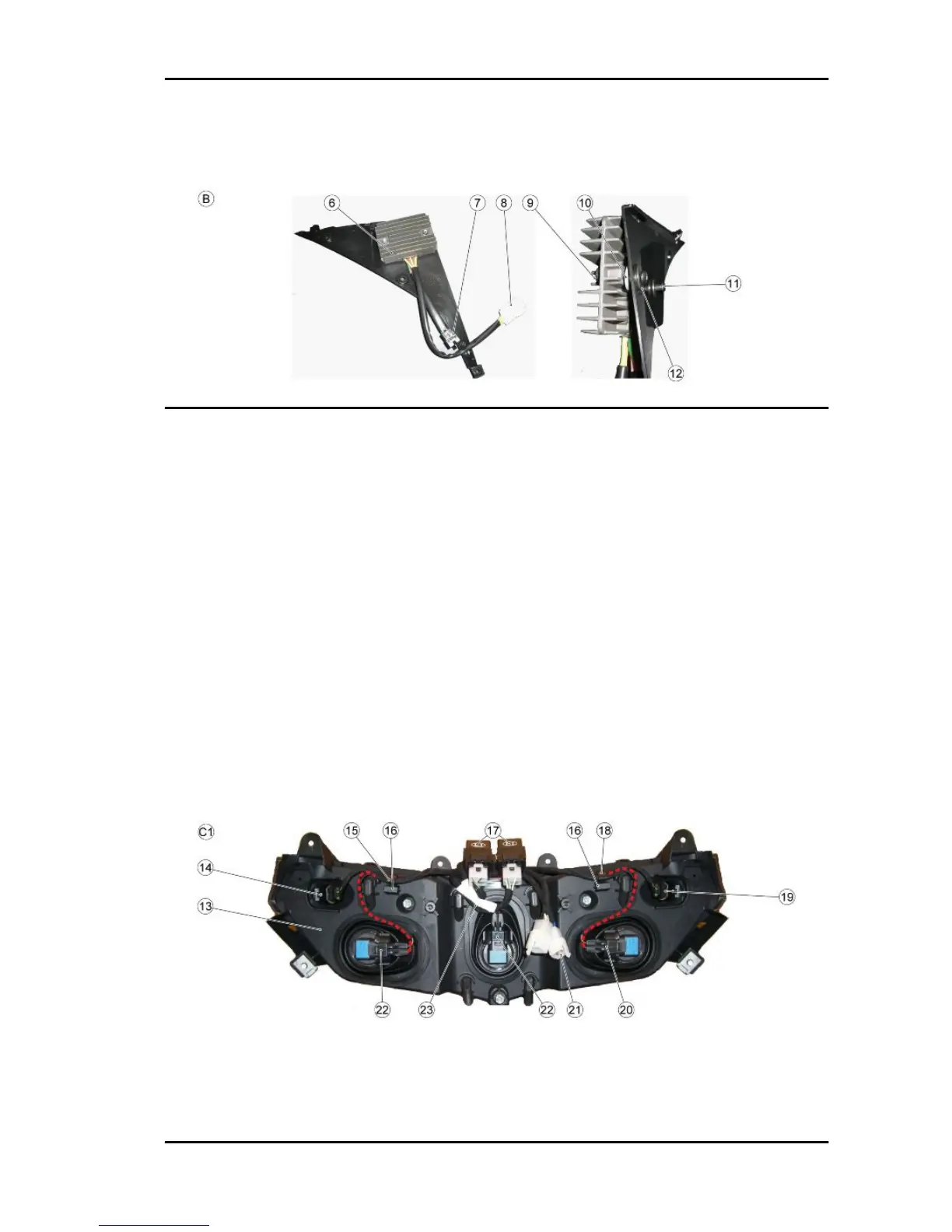

TABLE C1 - HEADLAMP PRE-FITTING
The headlamp cable harness (23) and the two relays with a relay socket rubber ring (17) must be fit on
the headlamp (13) as shown in the photos below.
13. Headlamp
14. Left position light connector
15. Cable harness routing in the cable grommet
16. Cable grommet
17. Relay with relay socket rubber ring
18. Cable harness routing in the cable grommet
19. Right position light connector
20. Right low beam light connector
21. Vehicle cable harness interface connectors
22. High beam light connector
23. Headlamp cable harness
24. Left low beam light connector
RSV4 R Electrical system
ELE SYS - 101

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
