REAR WHEEL RIM
•

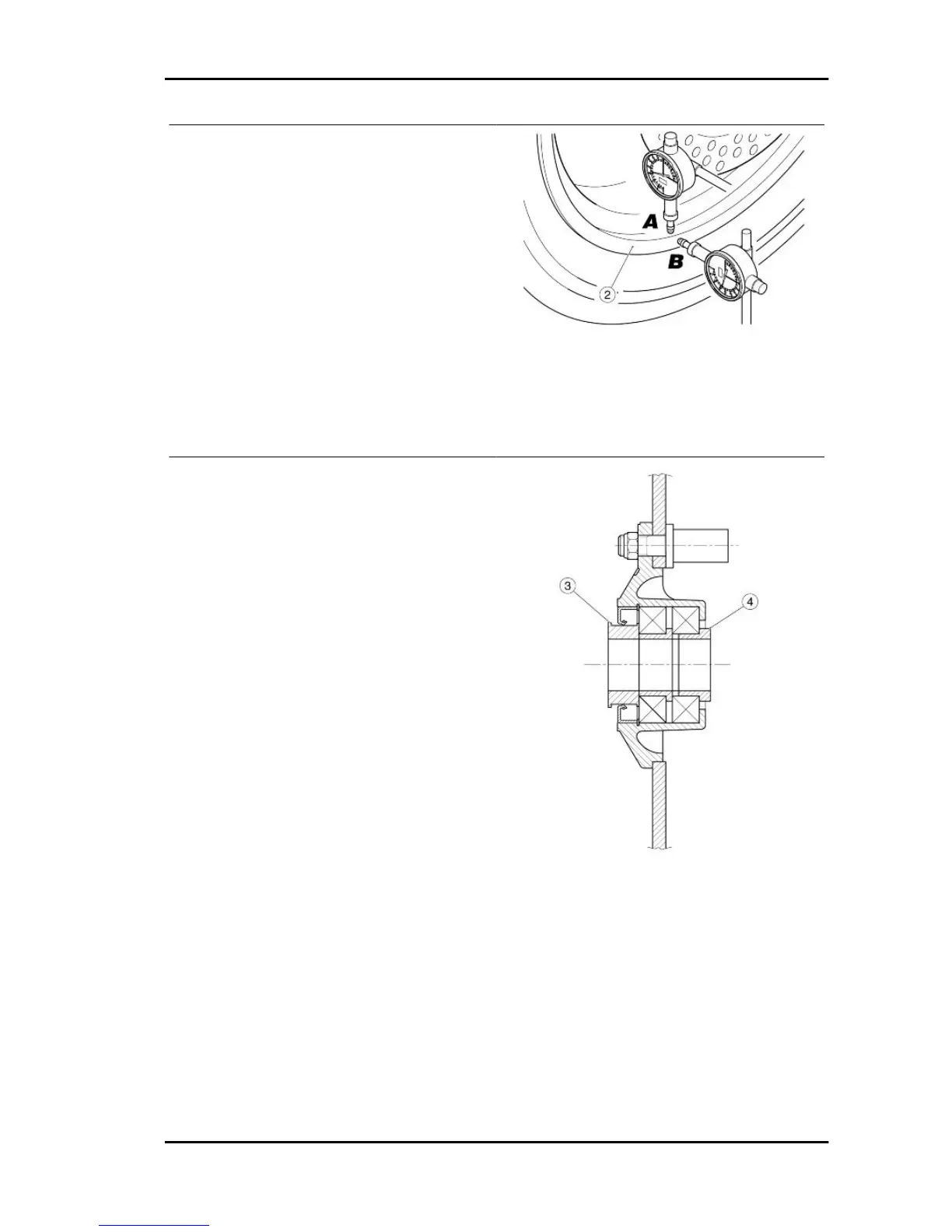

Using a dial gauge, check that the ra-
dial (A) and the axial eccentricity (B) of
the rim (2) do not exceed the limit val-
ue.
An excessive eccentricity is usually caused by
worn or damaged bearings. Replace the rim (2) if
after replacing the bearings, the value is not within
the specified limit.
Characteristic
Maximum radial and axial eccentricity:
0.8 mm (0.031 in)
FINAL TRANSMISSION UNIT BEARINGS
Carry out the check with the bearings fitted on the
final transmission unit.
ROTATION CHECK
•
Remove the left spacer (3).
•
Remove the right spacer (4).
•
Manually rotate the inside ring of each
bearing. Rotation must be constant,
smooth and noiseless.
If one or both bearings do not fall within the control
parameters:
•
Replace both bearings of the final
transmission unit.
RADIAL AND AXIAL CLEARANCE CHECK
•
Check the radial and axial clearance. Axial clearance: a minimum axial clearance is allowed.
Radial clearance: none.
If one or both bearings do not fall within the control parameters:
•
Replace both bearings of the final transmission unit.
RSV4 R Suspensions
SUSP - 389
