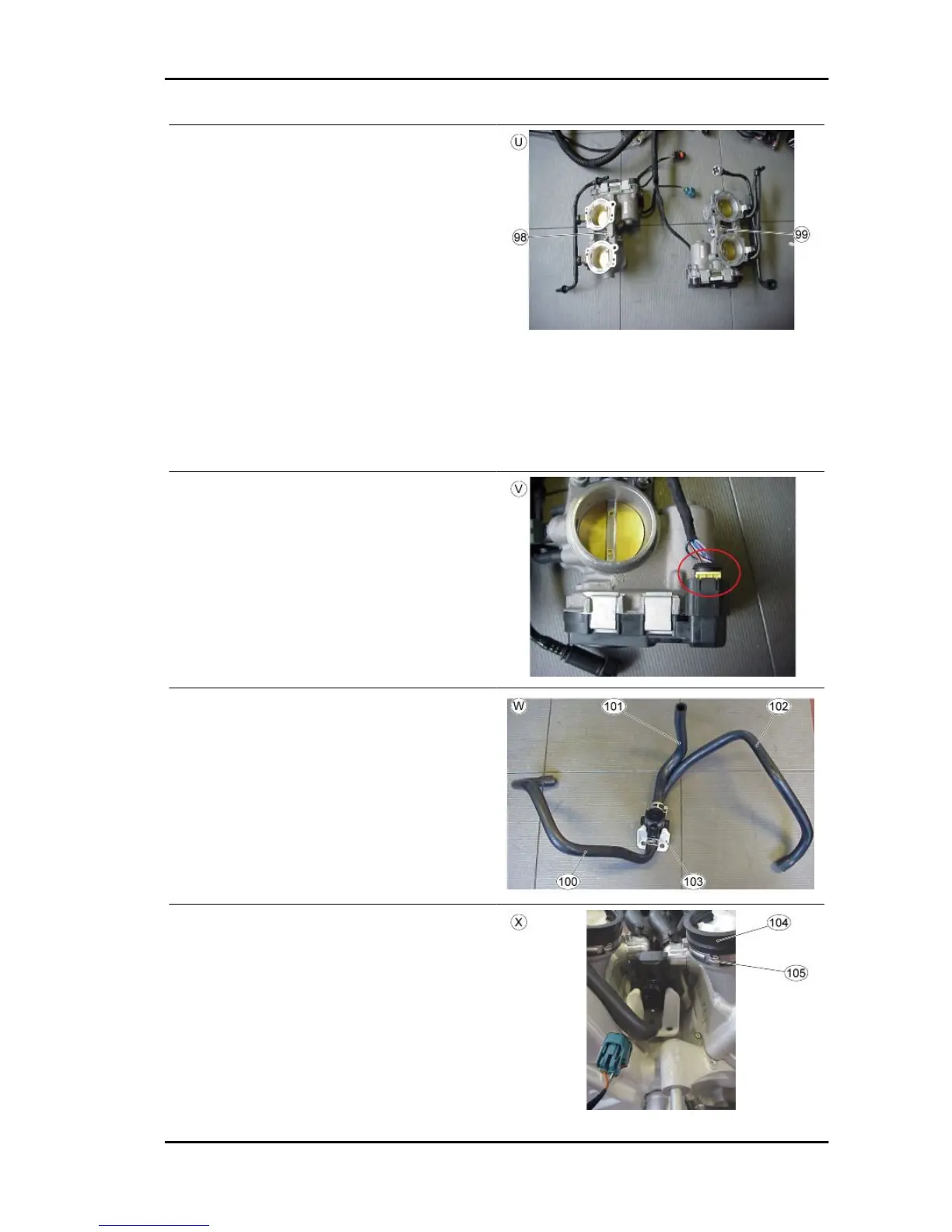

TABLE U - MOTORISED THROTTLE BODY
CONNECTION PREPARATION AND SECON-
DARY AIR SOLENOID FITTING
Before fitting the motorised throttle bodies (98 and
99), the respective engine cable harness connec-
tors must be connected: on branch "2" of the cable
harness (corrugated pipe marked with RED tape),
there are outputs 13 and 14, which are respec-
tively motorised throttle body 1 (98 - rear) (shorter
branch) and motorised throttle body 2 (99 - front)
(longer branch).
98. Rear motorised throttle body
99. Front motorised throttle body
TABLE V
Check that the connectors are inserted correctly
and that the security locks are in the locked posi-
tion.
CENTRAL W - FITTING THE PIPES ON THE
SECONDARY AIR SOLENOID
100. Pipe
101. Pipe
102. Pipe
103. Secondary air solenoid mounting
TABLE X - FITTING AND CONNECTING THE
SECONDARY AIR SOLENOID AND FITTING
THE RUBBER MANIFOLD WITH THE CLIP-ON
CLAMP
104. Rubber manifold
105. Clip-on clamp
