APRILIA RSV4 R User Manual

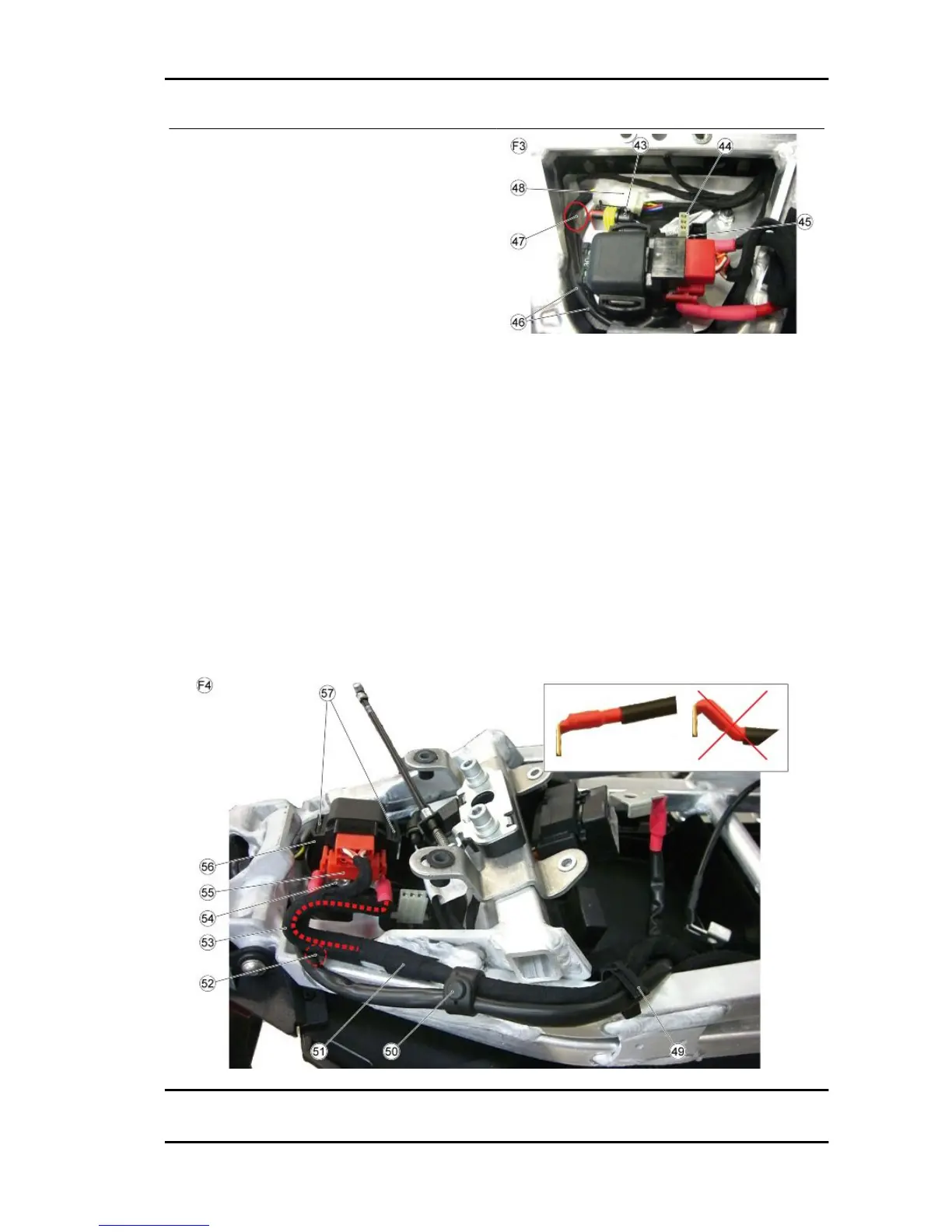

TABLE F3
43. ECU diagnosis connector
44. Instrument panel diagnosis connector
45. Insert the instrument panel diagnosis and the
ECU diagnosis connectors in their specific seats
46. License plate frame and taillight cable harness
routing
47. Taillight connector
48. License plate frame cable harness connector
TABLE F4
49. Cable grommet
50. Rubber clamp
51. Vehicle cable harness
52. Insert the tape clamp on the cable harness in the hole on the right side of the saddle mounting
53. Starter motor cable
54. M5x8 screw
55. Start-up relay connector
56. Start-up relay
57. Insert the start-up relay in the two plastic tongues
Pay attention not to bend the starter motor cable
TABLE F5 - RIGHT SIDE SADDLE MOUNTING
RSV4 R Electrical system
ELE SYS - 129

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
