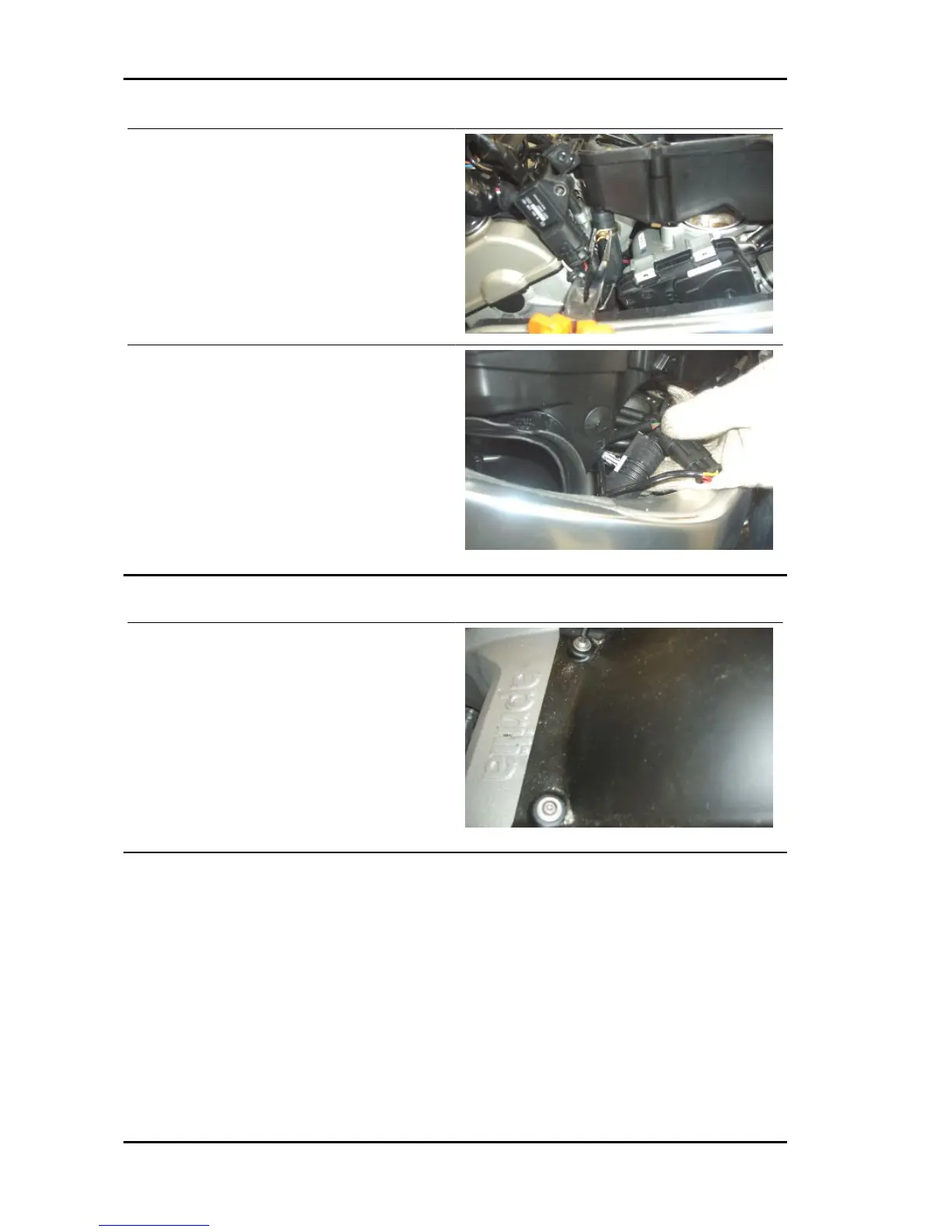

APRILIA RSV4 R - Lower Cowl; Rear Mudguard

•
Working from both sides, disconnect
the Blow-by system intake pipes.
•
Release the cable harness from the
cable grommet on the filter box.
•
Remove the air filter box base.
Rear mudguard
•
Unscrew and remove the two screws.
•
Remove the rear mudguard.
Lower cowl
•
The following procedure is applicable to both parts of the fairing lug.
•
Remove the lower side fairing.
Bodywork RSV4 R
