APRILIA RSV4 R - Crankcase

Crankcase

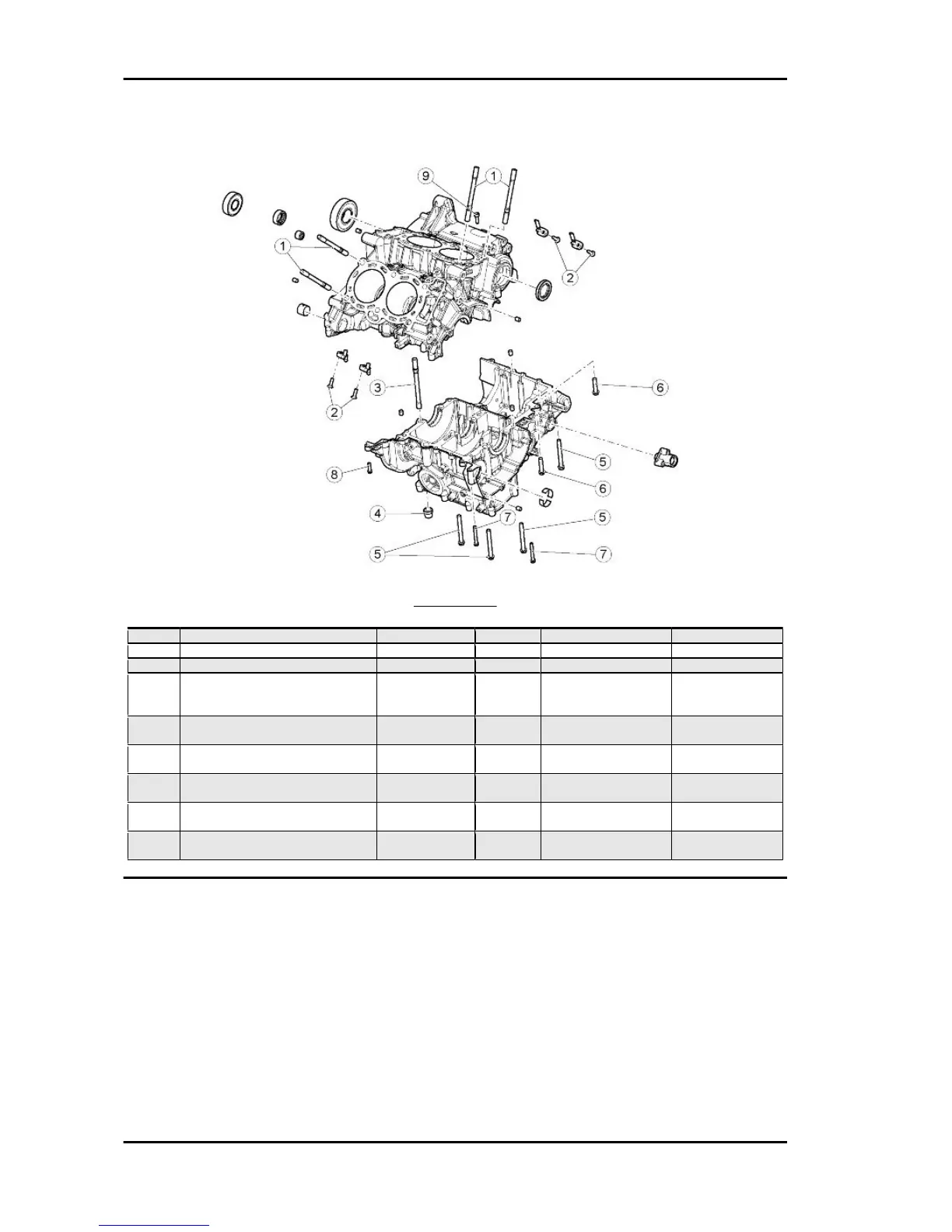

CRANKCASES
pos.
Description Type Quantity Torque Notes
1 Head stud bolts - 12 20 Nm (14.75 lbf ft) Loct. 648 or 270
2 Special screw for piston cooling oil jet - 4 6 Nm (4.42 lbf ft) Loct. 2045
3 Crankcase stud bolts - 6 20 Nm (14.75 lbf ft) Loct. 648 or 270
4 Main crank flanged nut - 6 30 + 55 Nm (22.13 +
40.57 lbf ft)
Molykote - lubricate
the thread and un-
der the head
5 Crankcase fixing screw M8x70 4 25 Nm (18.44 lbf ft) Lubricate the thread
and under the head
6 Crankcase fixing screw M8x35 3 25 Nm (18.44 lbf ft) Lubricate the thread
and under the head
7 Crankcase fixing screw M6x45 2 10 Nm (7.37 lbf ft) Lubricate the thread
and under the head
8 Crankcase fixing screw M6x20 5 10 Nm (7.37 lbf ft) Lubricate the thread
and under the head
9 Crankcase fixing screw M6x20 5 10 Nm (7.37 lbf ft) Lubricate the thread
and under the head
Engine RSV4 R
ENG - 314
