APRILIA RSV4 R User Manual

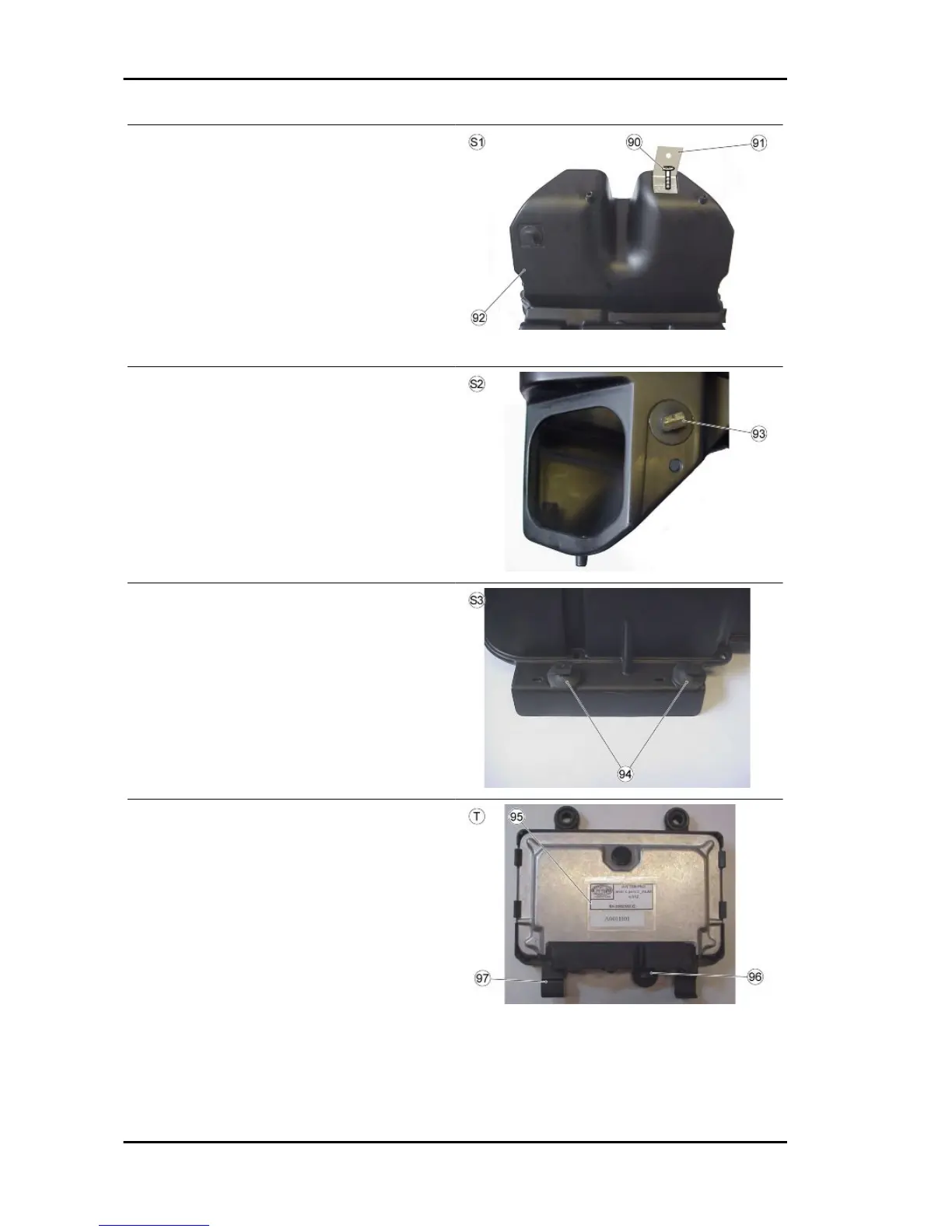

TABLE S1 - FILTER BOX COVER AND LOWER
FILTER BOX PREPARATION
Fit four mountings for the "coil" connectors and the
mounting for the "vehicle" connector as shown in
figures S1, S2 and S3.
Lower filter box
90. Self-tapping 5x20 screw
91. Connector mounting
92. Connector mounting
TABLE S2
Lower filter box
93. Connector mounting
TABLE S3
Filter box cover
94. Connector mounting
TABLE T - CONTROL UNIT MOUNTING PREP-
ARATION
Fit the three silent blocks (96) onto the seats on
the mounting; then, fit the 7SM control unit (95)
using the specific links.
95. 7SM control unit
96. Silent block
97. Control unit mounting
Electrical system RSV4 R
ELE SYS - 116
