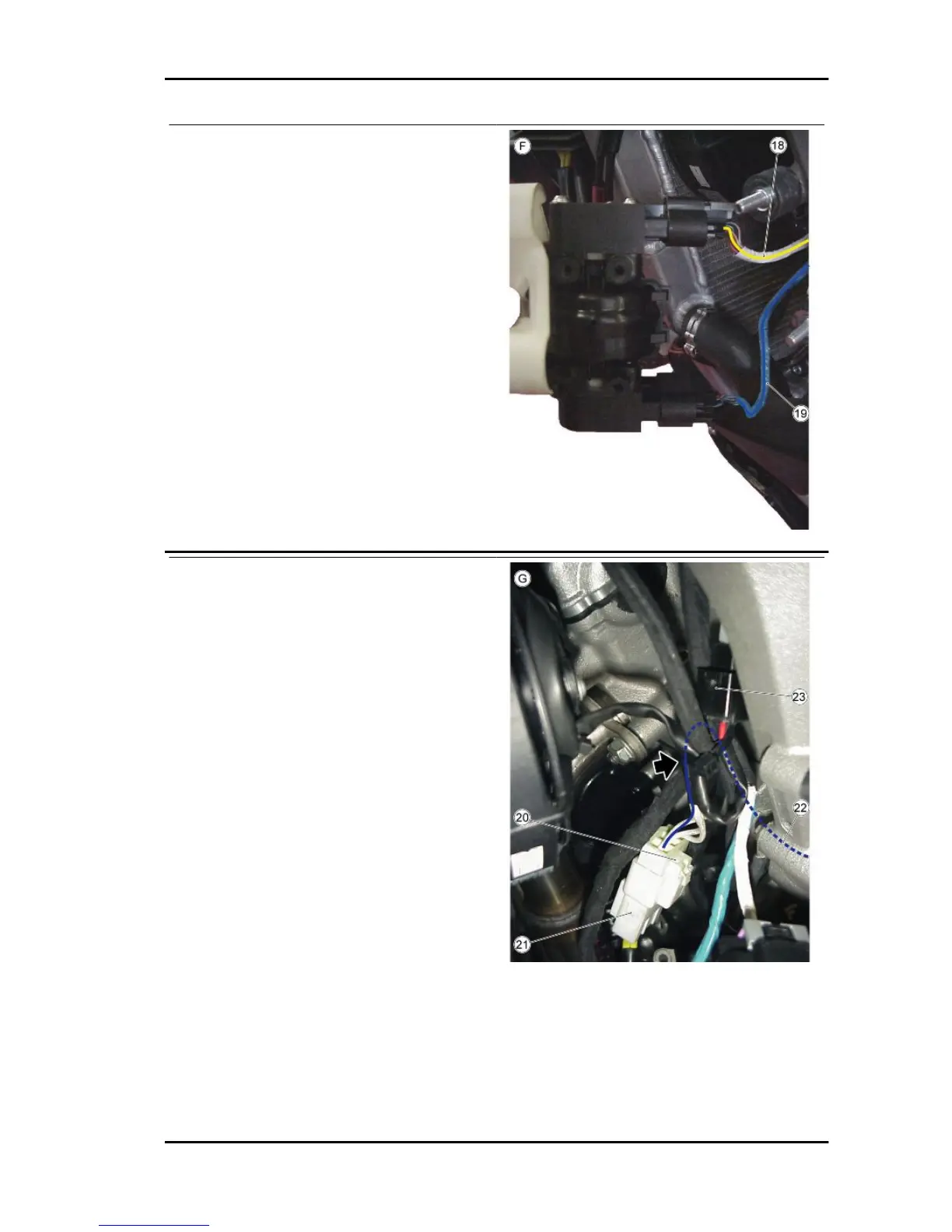

TABLE F - DEMAND SENSOR FITTING
18. Slave Demand cable harness routing (creating
a "U-bend" in the cable harness)
19. Master Demand cable harness routing (creat-
ing a "U-bend" in the cable harness)
TABLE G - DEMAND SENSOR FITTING
Clamp where indicated.
20. Flywheel connector
21. Flywheel connector to the regulator
22. Flywheel cable harness routing
TABLE H - DEMAND SENSOR FITTING
24. Clamp (flywheel cable harness and regulator cable harness routing)
25. Flywheel cable harness routing
The flywheel connectors must be positioned between the two demand connectors, so that they
remain away from the exhaust pipes.
26. Flywheel connector to the regulator
RSV4 R Electrical system
ELE SYS - 109
