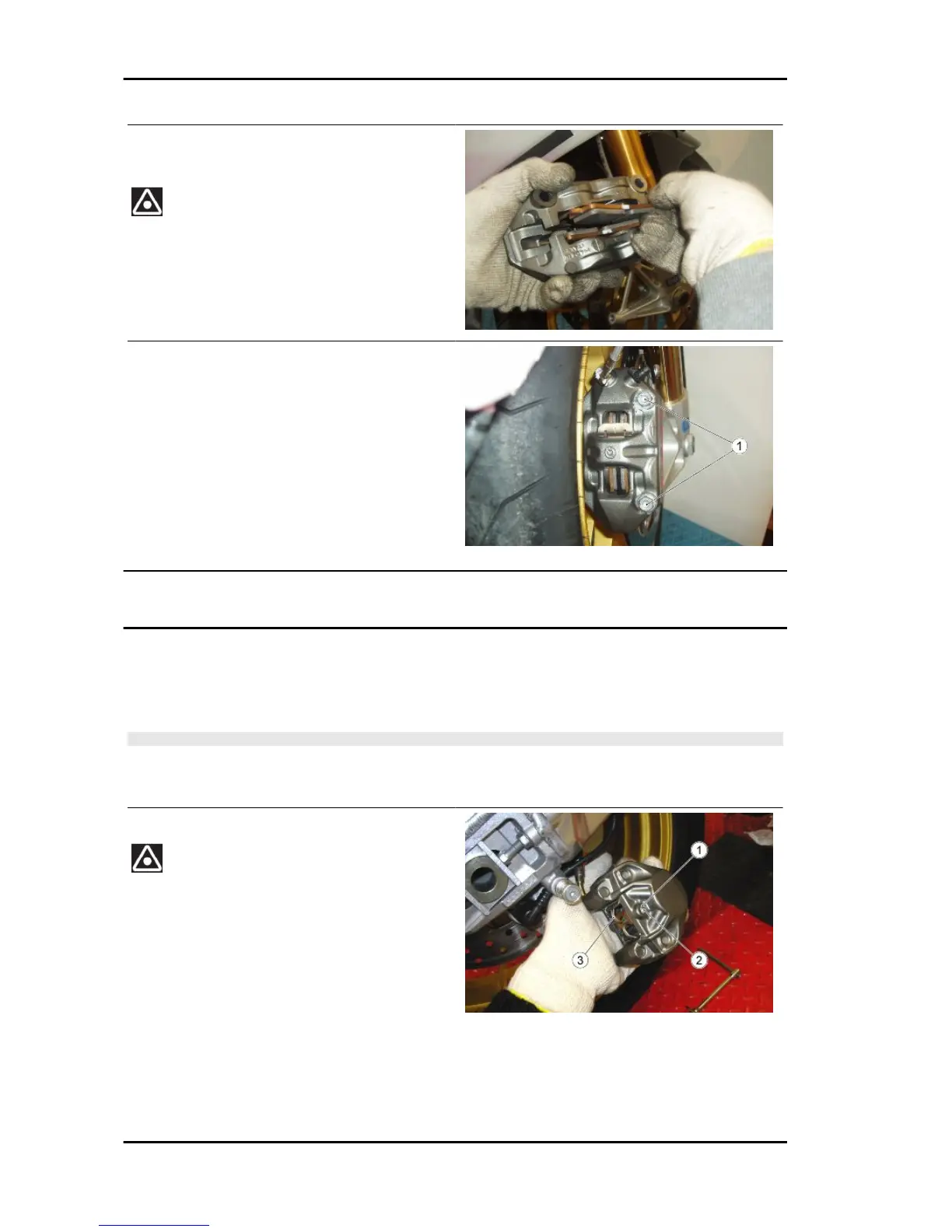

APRILIA RSV4 R User Manual

•
Fit the two new pads in the correct po-
sition.
ALWAYS REPLACE THE FOUR PADS AND MAKE SURE
THEY ARE CORRECTLY POSITIONED INSIDE THE CAL-
LIPER.
•
Fit the front brake calliper on the disc.
•
Hand-tighten the two screws (1) fully.
•
Pull the front brake lever to seat the
brake calliper correctly.
•
Tighten the two screws (1).
•
Check the front brake fluid level.
Rear brake pads
Removal
•
Rest the vehicle on its stand.
•
Remove the rear brake calliper.
CAUTION
DO NOT ACTUATE ON THE REAR BRAKE LEVER AFTER REMOVING THE WHEEL, OTHERWISE
THE CALLIPER PLUNGER COULD GO OUT OF ITS SEAT, RESULTING IN BRAKE FLUID LEAK-
AGE.
•
Remove the snap ring (1).
BEFORE REMOVING THE PIN (2), CHECK THAT THE
SAFETY SPRING (3) IS CORRECTLY POSITIONED; WHEN
REFITTED, IT MUST POSITIONED IN THE SAME WAY.
Braking system RSV4 R
BRAK SYS - 426

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
