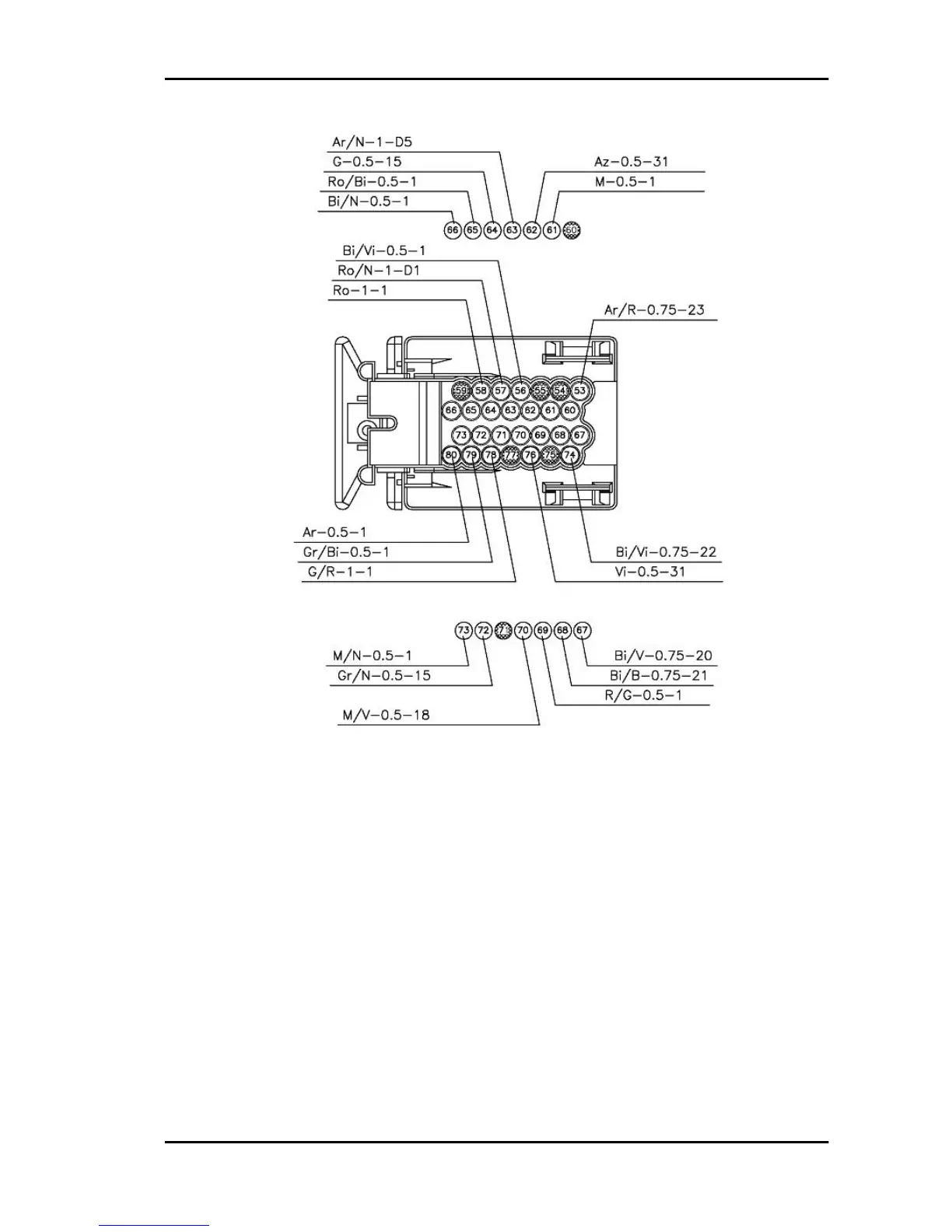

Vehicle pinout key:
Upper cylinder 1 injector control output PIN 53
Clutch sensor input PIN 56
Analogue ground connection 2 PIN 57
"Start engine" switch input PIN 58
Electric fan relay control output PIN 61
Variable geometry control unit control output PIN 62 (If available)
Reference voltage output + 5V: tracks B-D and front throttle PIN 63
Neutral input PIN 64
Fall sensor input PIN 65
CAN L line (high speed) PIN 66
Upper cylinder 2 injector control output PIN 67
Upper cylinder 4 injector control output PIN 68
Start-up control output PIN 69
RSV4 R Electrical system
ELE SYS - 217

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
