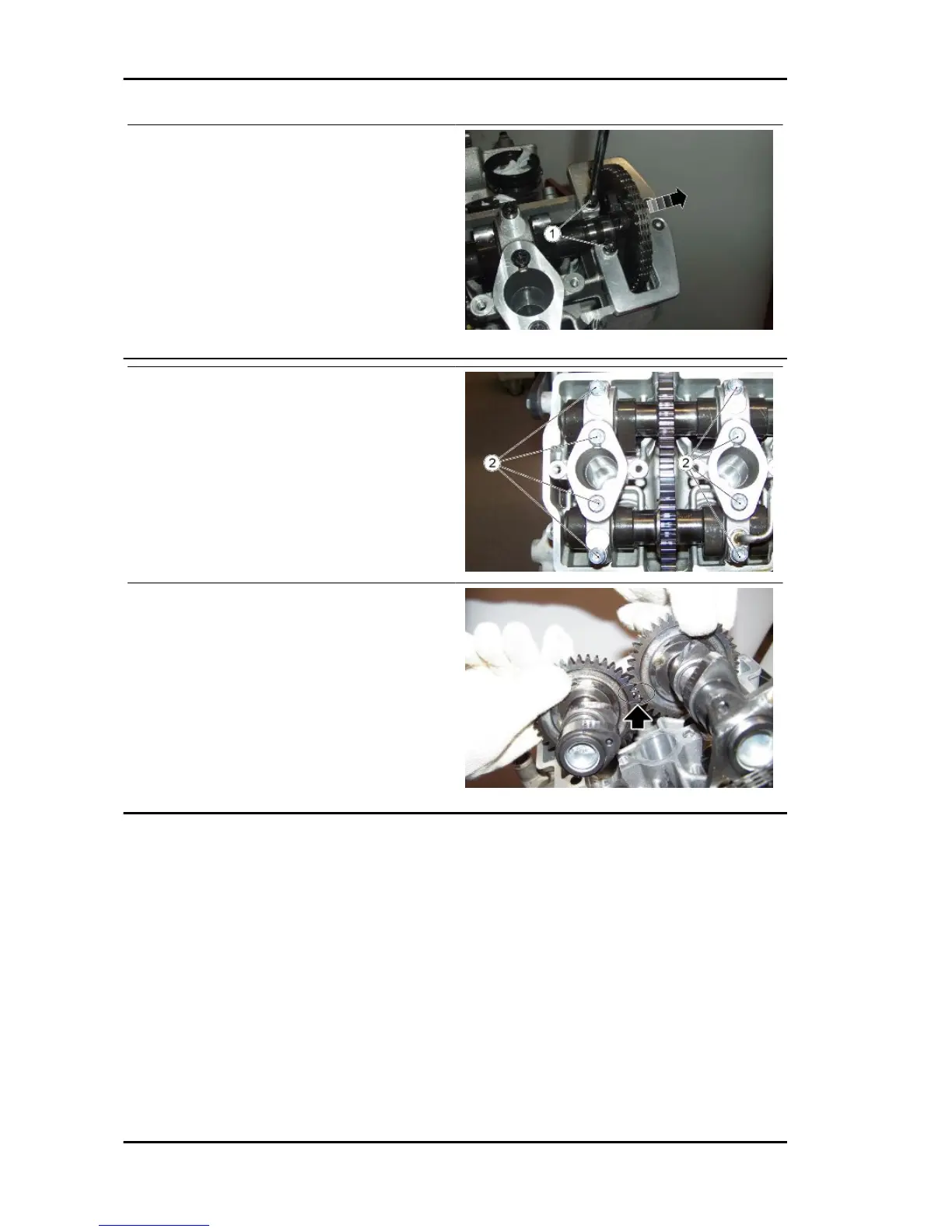

Install the specific camshaft gear sup-
port tool.
•
Fix it to the head using the two screws
(1).
•
Move the gear from the camshaft to the
tool.
Specific tooling
020865Y Support for camshaft gear on head
•
Unscrew and remove the eight screws
(2), proceeding in stages and diago-
nally.
•
Retrieve the washers from the screws
near the spark plug holes.
•
Remove the U bolts with the O rings
and locator pins.
•
Remove the intake and exhaust cam-
shafts.
If the two camshafts are timed correctly, the ex-
haust camshaft gear tooth (indicated with a dot) is
meshed with the trough of the intake camshaft
gear (indicated with two dots).
Inspecting camshafts
CAMSHAFT TOOTHED WHEEL CHECK
•
Check that the camshaft gear works properly: if it is damaged or does not move smoothly,
replace the timing chain and the camshaft gear.
CAMSHAFT LOBES
•
Check that they do not show blue colouring, cracks or scratches; otherwise, replace the
camshaft, gear and chain.
Engine RSV4 R
ENG - 278
