APRILIA RSV4 R - Instrument Panel

Instrument panel
•

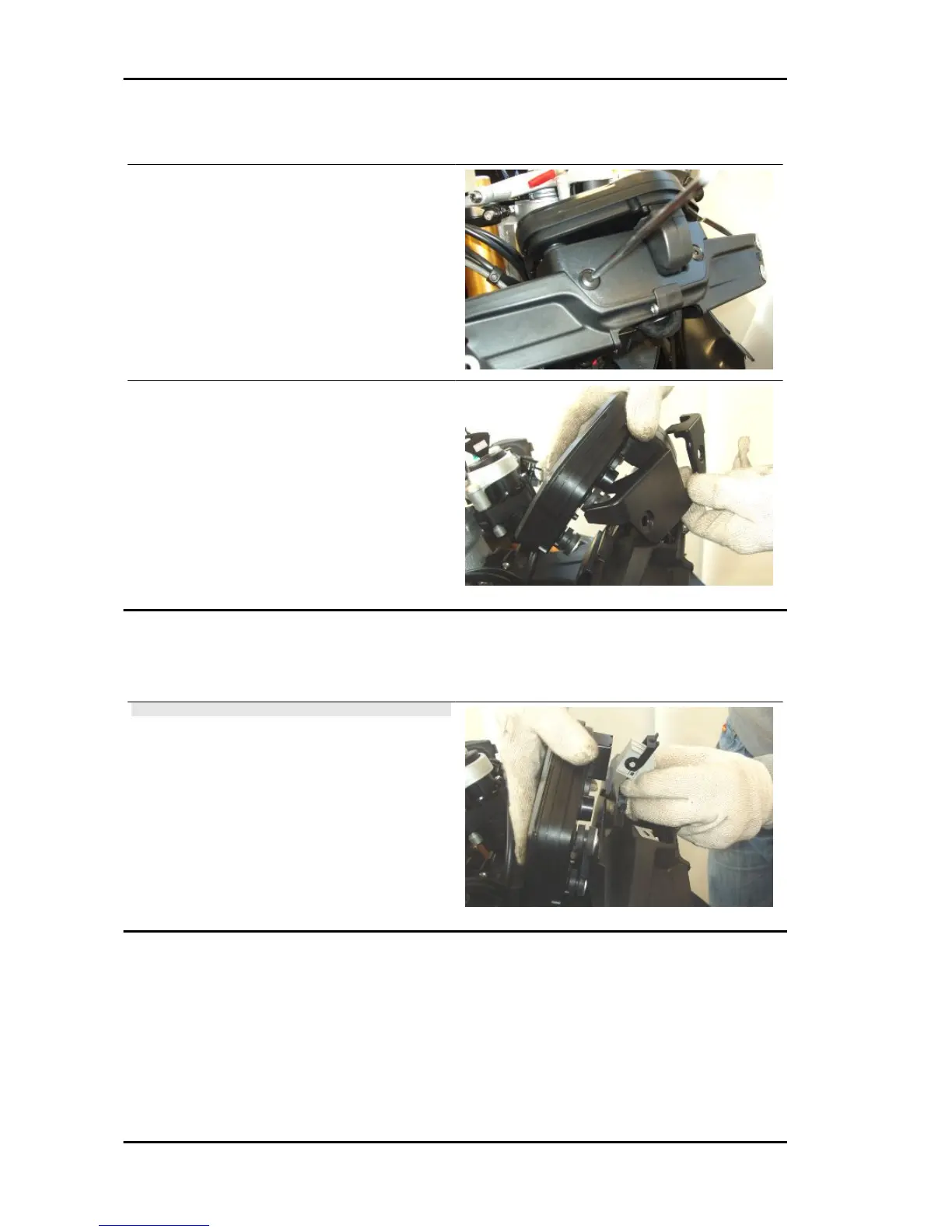

Remove the windshield.
•
Unscrew and remove the two screws.
•
Remove the instrument panel mount-
ing cover.
•
Move the instrument panel, removing
the rubber rings from the seats on the
arch brace.
•
Rotate the instrument panel connector retainer lever.
•
Remove the connector.
•
Remove the instrument panel.
NOTE
WHEN REFITTING THE CONNECTORS, THE SLIDES MUST
MOVE FREELY TO THE END OF STROKE, WHICH HELPS
WITH THE INSERTION OF THE CONNECTOR: YOU MUST
HEAR THE RELEASE OF THE RETAINING TANG AT THE
END OF STROKE.
