CRANKSHAFT
pos. Description Type Quantity Torque Notes
1 Connecting rod screws - 8 15 Nm (11.06 lbf ft) +
40° + 60°
Lubricate the thread
and under the head
with Molykote
2 Fastener ring nut for alternator side
timing sprocket
- 1 100 Nm (73.76 lbf ft) Loct. 243
3 Primary sprocket fixing ring nut - 1 200 Nm (147.51 lbf ft) Loct. 243
4 Alternator fixing screw M12x1.25 1 120 Nm (88.51 lbf ft) -
5 Tone wheel fixing screw M8x1.25 1 30 Nm (22.13 lbf ft) Loct. 3M or 270

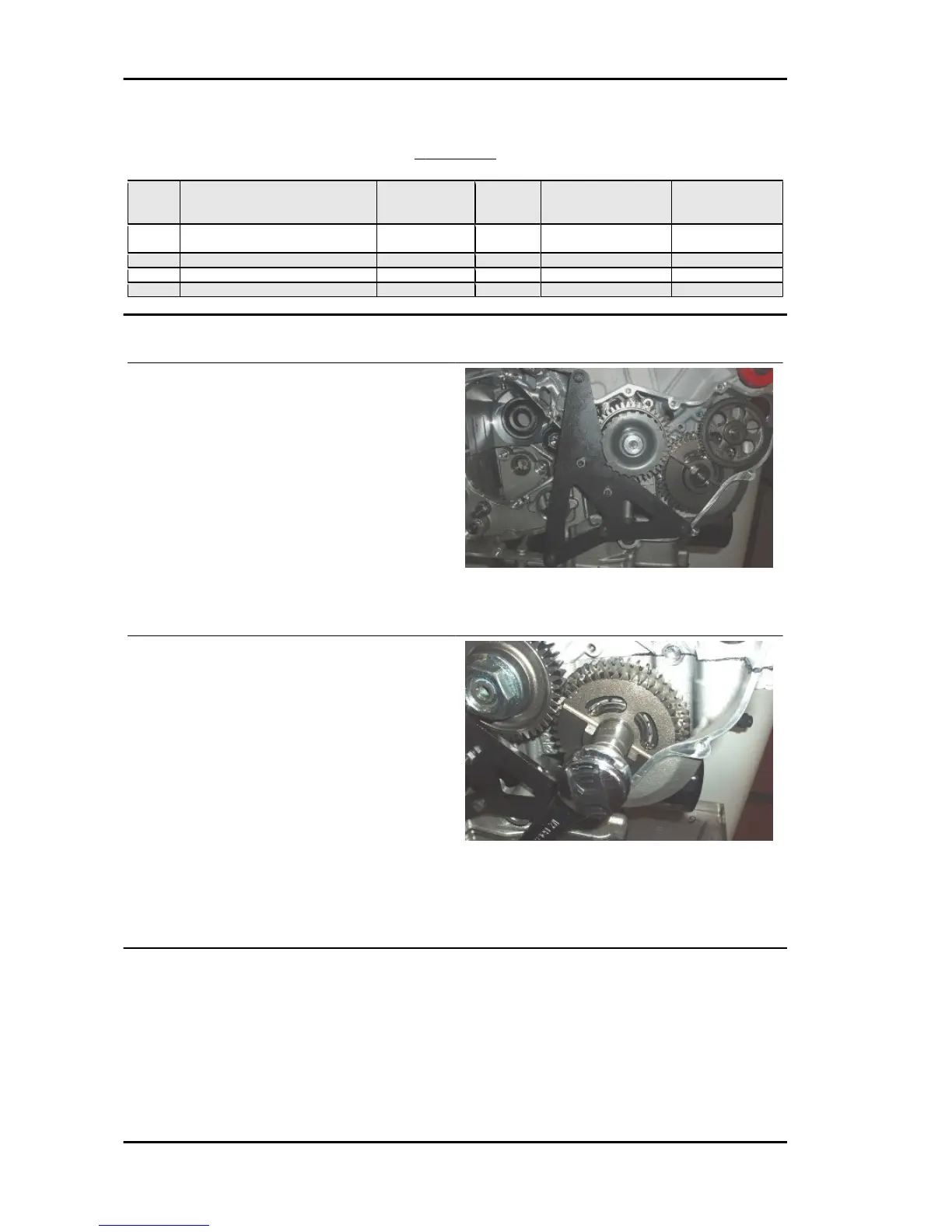

Balancing countershaft removal
•
To extract the balancing countershaft,
first remove: the clutch cover and the
alternator cover.
•
Turn the crankshaft and align the ref-
erences on the countershaft gear and
the primary shaft gear.
•
Block crankshaft rotation using the
specific tool.
Specific tooling
020850Y Primary gear lock
•
Remove the starting intermediate
gear.
•
Unscrew and remove the nut.
See also
Removing the
clutch cover
Removing the flywheel cover
Engine RSV4 R
ENG - 316
