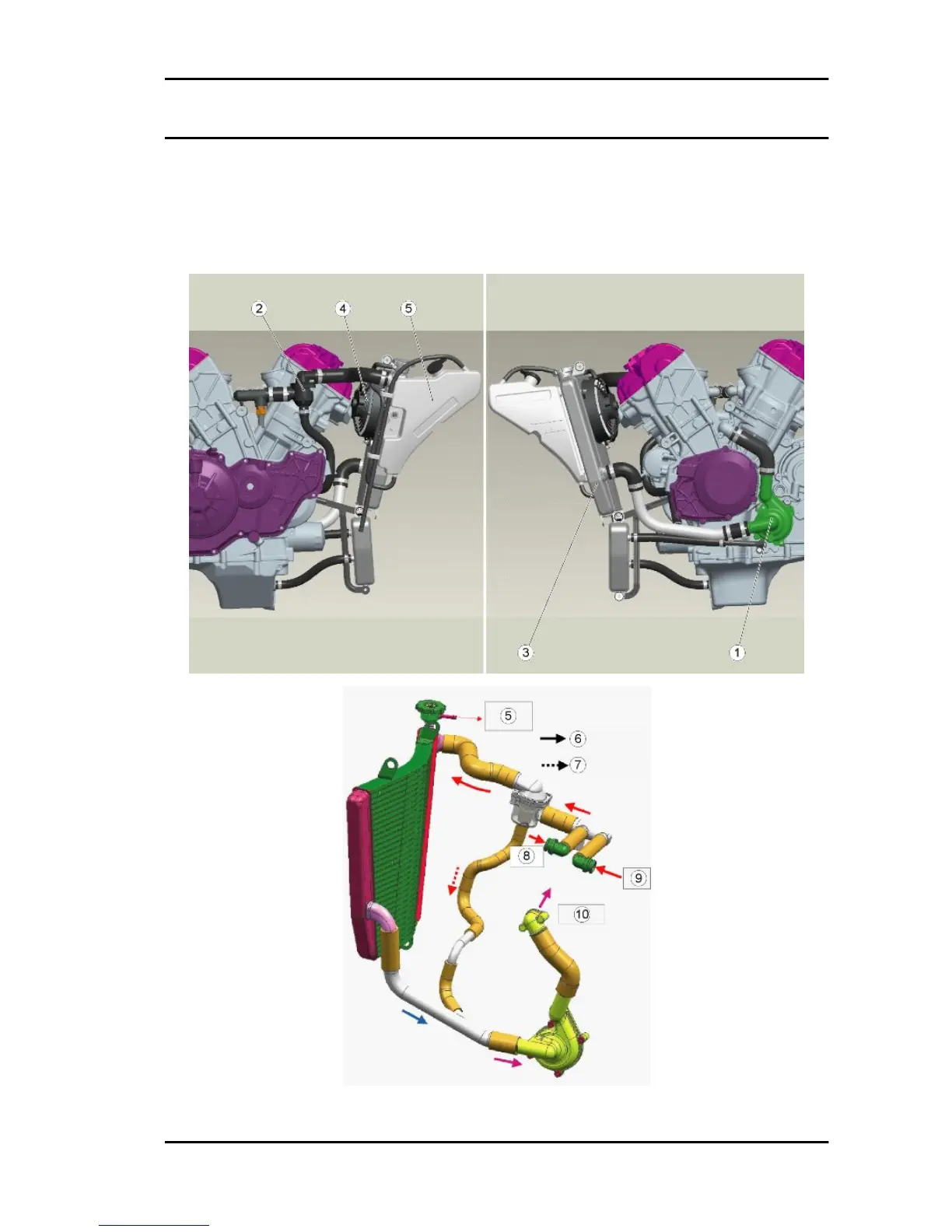

Circuit diagram
SYSTEM TYPE
Self bleeding cooling circuit with aspirating centrifugal pump (1), three-way thermostat valve (2), cooling
radiator (3) with electric fans (4) and expansion tank (5).
key:
RSV4 R Cooling system
COOL SYS - 433
