APRILIA RSV4 R User Manual

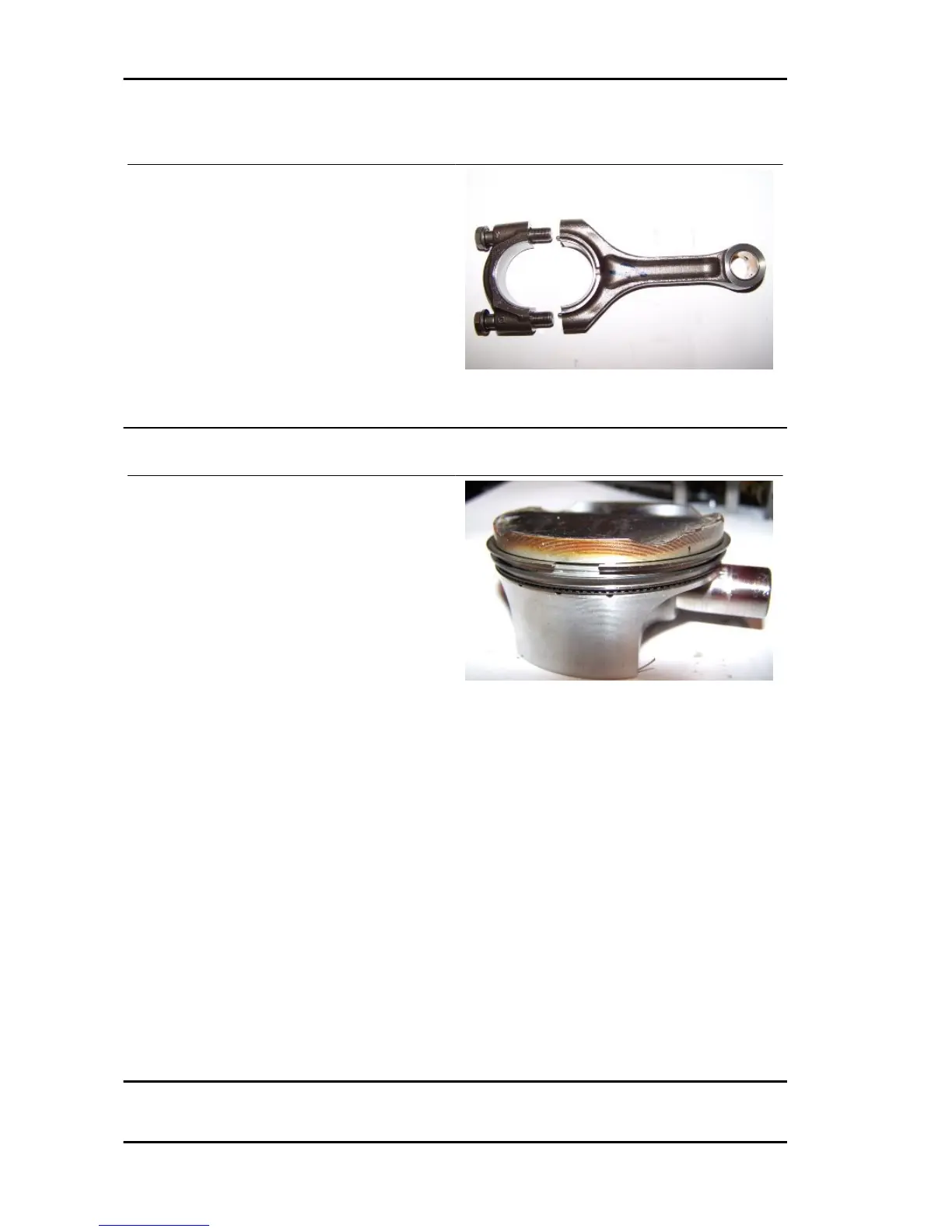

Connecting rod check
Characteristic
Maximum wear limit of the rod small end
17.05 mm (0.671 in)
Maximum rod small end radial clearance
0.055 mm (0.0022 in)
Maximum axial clearance between the con-
necting rod and the crank pin
0.55 mm (0.022 in)
Maximum connection rod pin clearance
0.08 mm (0.0031 in)
Inspecting pistons
Characteristic
Minimum piston diameter
77.914 mm (3.067 in)
Maximum clearance between the cylinder and
piston
0.1 mm (0.0039 in)
Maximum wear limit of the pin hole on the pis-
ton
0.055 mm (0.0022 in)
Maximum permitted clearance between piston
ring 1 (starting from the bottom) and the cor-
responding slot on the piston
0.1 mm (0.0039 in)
Maximum permitted clearance between piston
ring 2 (starting from the bottom) and the cor-
responding slot on the piston
0.1 mm (0.0039 in)
Maximum opening of the piston ring fit on the
piston
0.3 mm (0.0118 in)
Minimum wear limit of the thickness of piston
ring 1 (starting from the bottom)
0.077 mm (0.0030 in)
Minimum wear limit of the thickness of piston
ring 2 (starting from the bottom)
0.070 mm (0.0027 in)
Engine RSV4 R
ENG - 326

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
