4 Clic clamps
Motorcycle division

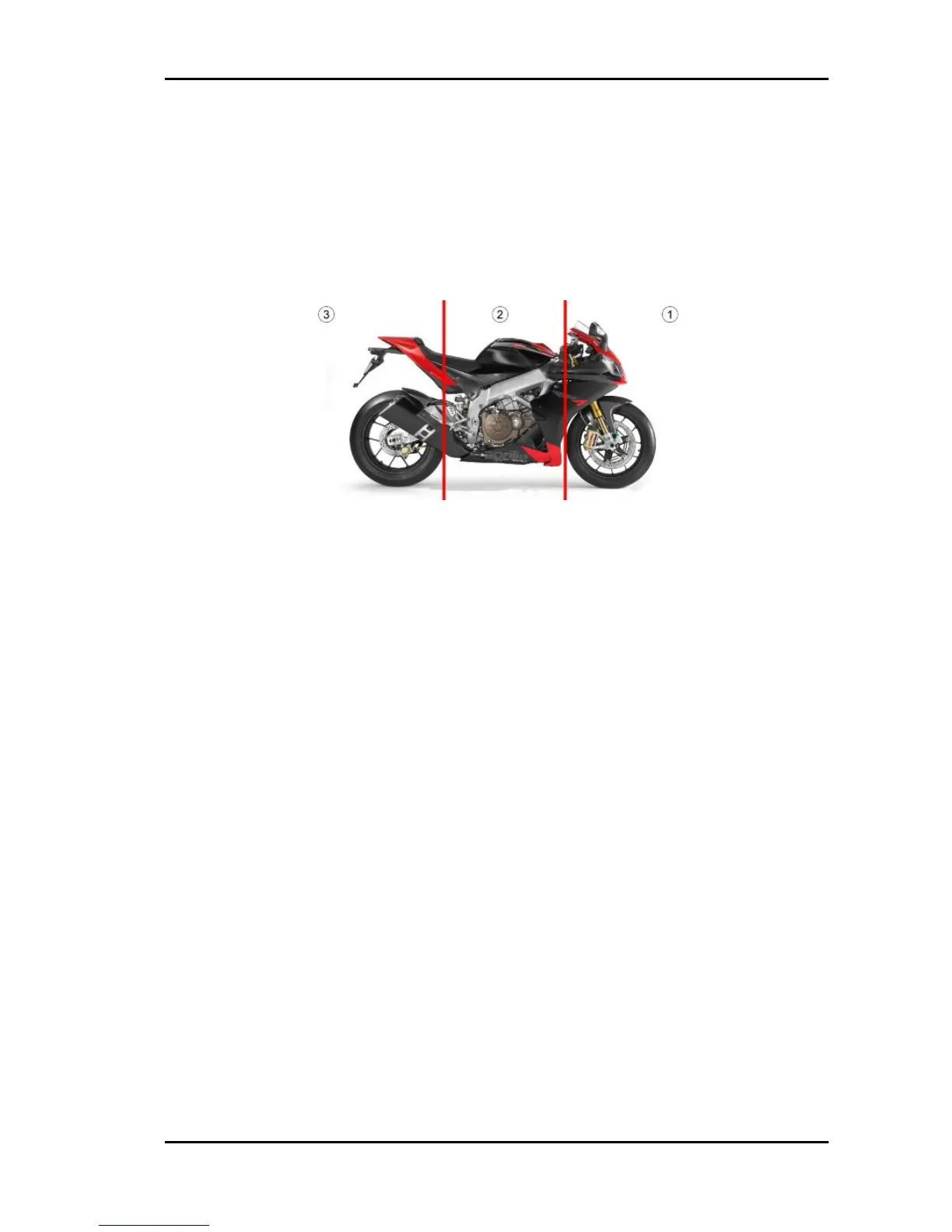

The wiring distribution is subdivided in three essential sections, as indicated in the figure.
1. Front section
2. Central section
3. Rear section
Special checks for the correct connection and laying of cables
It is extremely important that any security-locks for the following connectors are properly connected and
correctly tightened to ensure proper engine, and therefore proper vehicle, operation.
•
Instrument panel connector
•
Demand sensor connectors
•
Start-up relay connector
•
Speed sensor connector
•
Fall sensor connector
•
Safety relay connector
•
Protection relay connector
•
Injection relay connector
•
Taillight connector
•
Fuel pump connector
•
Exhaust valve actuator connector
•
Engine-vehicle interface connector
•
Flywheel connector
•
Regulator connector
•
Fan connectors
•
Starter motor eyelet
•
Stand switch connector
•
Right handlebar control connector
•
Left handlebar control connector
•
Clutch connector
RSV4 R Electrical system
ELE SYS - 99

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
