7. Breather pipe

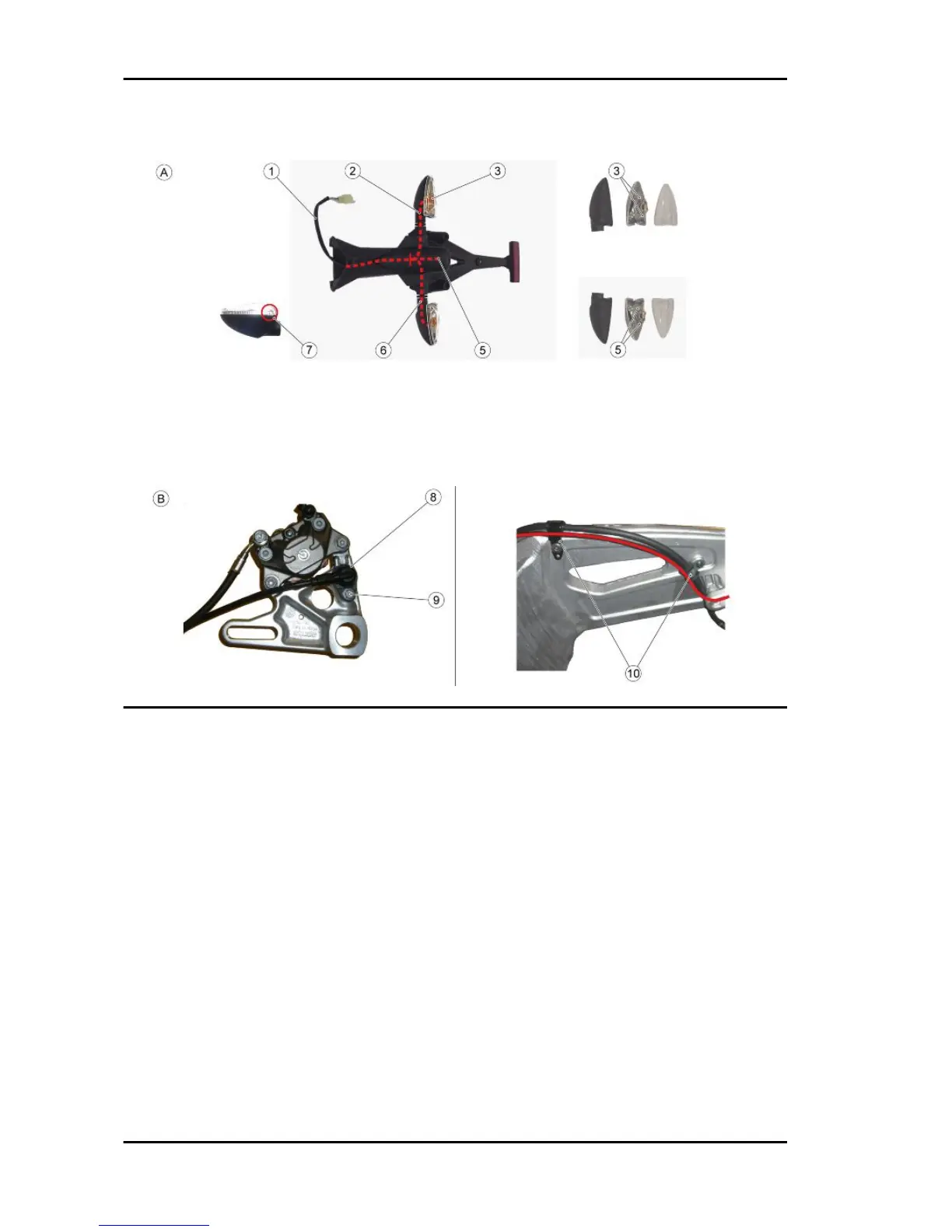

TABLE B - SPEED SENSOR PRE-FITTING
8. Speed sensor
9. TE M6x20 screw
10. Sensor cable harness routing in the cable grommet
TABLE C - START-UP RELAY PRE-FITTING
11. Starter motor cable on the vehicle cable harness
12. Positive battery cable
13. Start-up relay
14. Positive battery cable
15. M5x8 screw
The positive battery cable (14) must be connected with a screw (15) on the hole marked with the letter
B (battery).
M=starter motor
B=battery
Be careful not to bend the positive battery cable (14).
Electrical system RSV4 R
ELE SYS - 126

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
