APRILIA RSV4 R User Manual

•

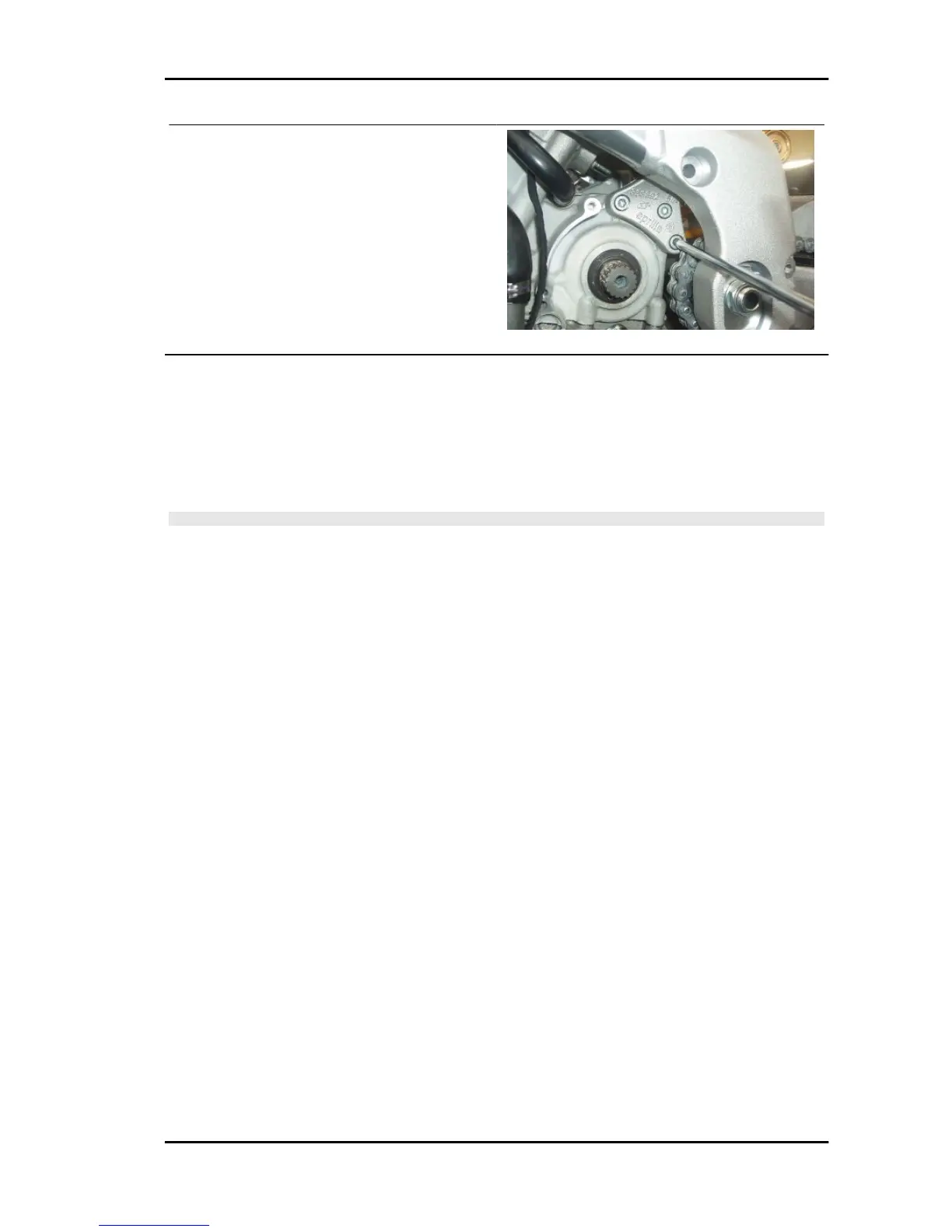

Working from the vehicle left side, in-
stall the left upper engine attachment,
tightening the three screws.
•
With the help of a second operator, secure the vehicle chassis with a hoist and onto a front
and rear stand and lift the engine to place it in position.
Specific tooling
020864Y Engine mounting plate
Centring the engine on the chassis
CAUTION
PAY SPECIAL ATTENTION DURING CENTRING PHASE OF THE ENGINE ON THE CHASSIS. OP-
ERATE WITH CAUTION SO AS NOT TO DAMAGE THE SCREWS AND THE CHASSIS INTERNAL
AND EXTERNAL SPACERS.
Working on the left side, place and screw without tighten:
•
the two front fixing screws (1);
•
the engine attachment upper fixing screw (6);
•
the lower rear fixing pin (3), so as to center the engine position.
Working on the right side, place and screw without tighten:
•
the two front fixing screws (2) and, from the chassis internal side, the specific spacers (4);
•
the upper rear fixing screws (5).
RSV4 R Engine from vehicle
ENG VE - 235

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
