ENGINE
pos. Description Type Quantity Torques Notes
1 Pinion protector casing fixing screws M6 3 8 Nm (5.9 lbf ft) -
2 Gearbox lever pin fixing screw M6 1 10 Nm (7.37 lbf ft) -
3 Gearbox lever fixing screws M6 1 10 Nm (7.37 lbf ft) -

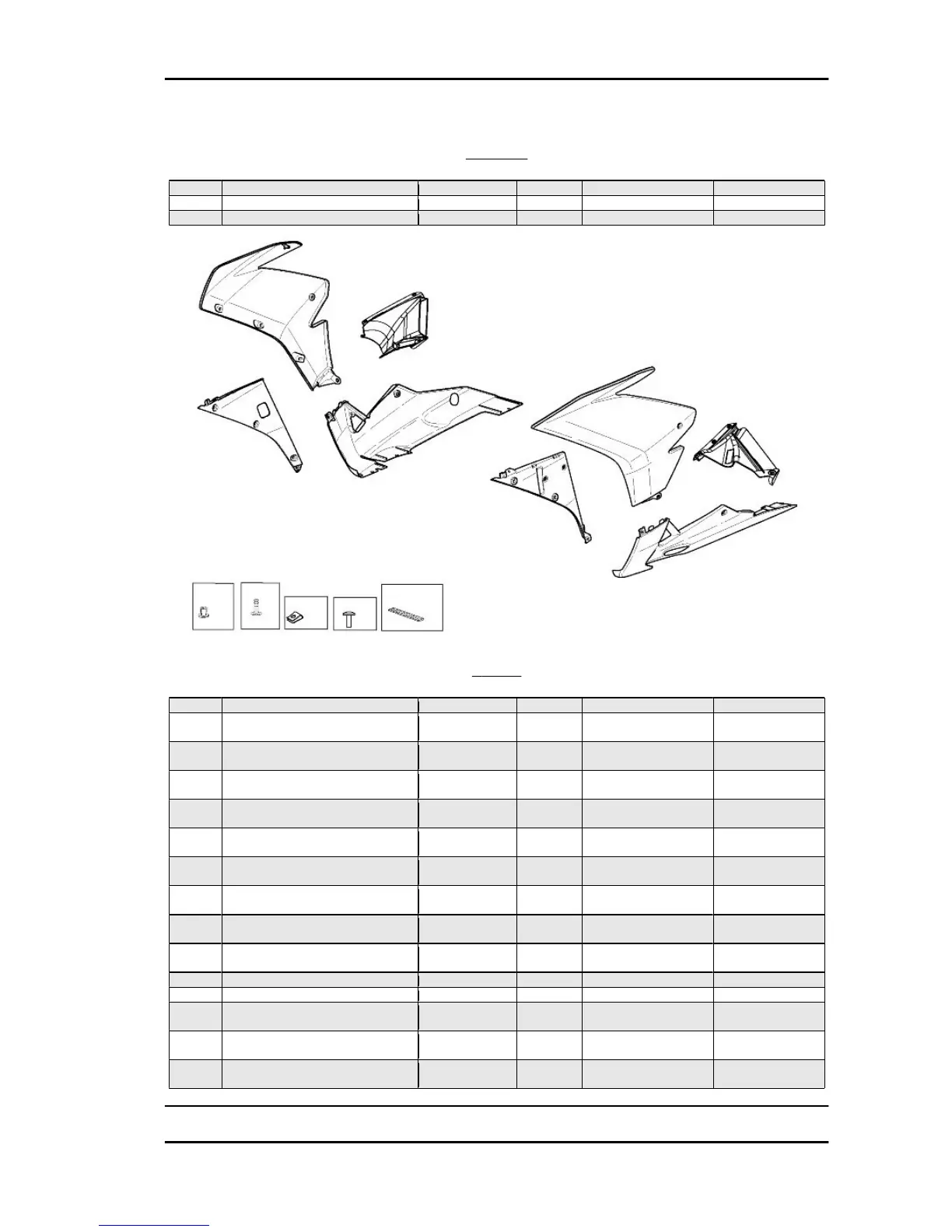

FAIRING
pos.
Description Type Quantity Torque Notes
- Centre screws fastening lower fairing M6 2 10 Nm (7.37 lbf ft) -
- Right hand lower fairing mounting
bracket
M6 2 10 Nm (7.37 lbf ft) -
- Left hand lower fairing mounting
bracket
M6 2 10 Nm (7.37 lbf ft) -
- Screws fixing the side fairings to the
side spacers
M5 2 1.5 Nm (1.11 lbf ft) -
- Screws fixing upper fairing fastener
to inlet duct
M5 2 1.5 Nm (1.11 lbf ft) -
- Screws fixing upper fairing fastener
to front fairing
M5 2 1.5 Nm (1.11 lbf ft) -
- Screws fixing upper fairing fastener
to inlet duct
self-tapping 2 1 Nm (0.74 lbf ft) -
- Screws fixing upper fairing fastener
to headlamp
self-tapping 2 1 Nm (0.74 lbf ft) -
- Screws fastening the lower fairing to
the bracket
M5 2 + 2 1 Nm (0.74 lbf ft) -
- Screws fastening the lower fairing to
the lug
M5 2 2 Nm (1.47 lbf ft) -
- Lower fairing lower fastening screws M5 2 2 Nm (1.47 lbf ft) -
- Lower fork fastener fixing screws M6 2 8 Nm (5.90 lbf ft) -
- Screws fixing lower front fairing fas-
tener to inlet ducts
SWP 3.9 2 1 Nm (0.74 lbf ft) -
- Inner screws fixing fairing to the low-
er front fairing fastener
M4 2 0.5 Nm (0.37 lbf ft) -
- Inner screws fastening the fairing to
the lug
M5 2 2 Nm (1.47 lbf ft) -
RSV4 R Characteristics
CHAR - 31
