APRILIA RSV4 R User Manual

REAR BRAKE PUMP
pos. Description Type Quantity Torque Notes
1 Rear brake rod lock nut M6 1 12 Nm (8.85 lbf ft) -
2 Rear brake pump fixing screws M6 2 8 Nm (5.9 lbf ft) -
3 Rear brake lever fixing screw M8 1 25 Nm (18.44 lbf ft) -

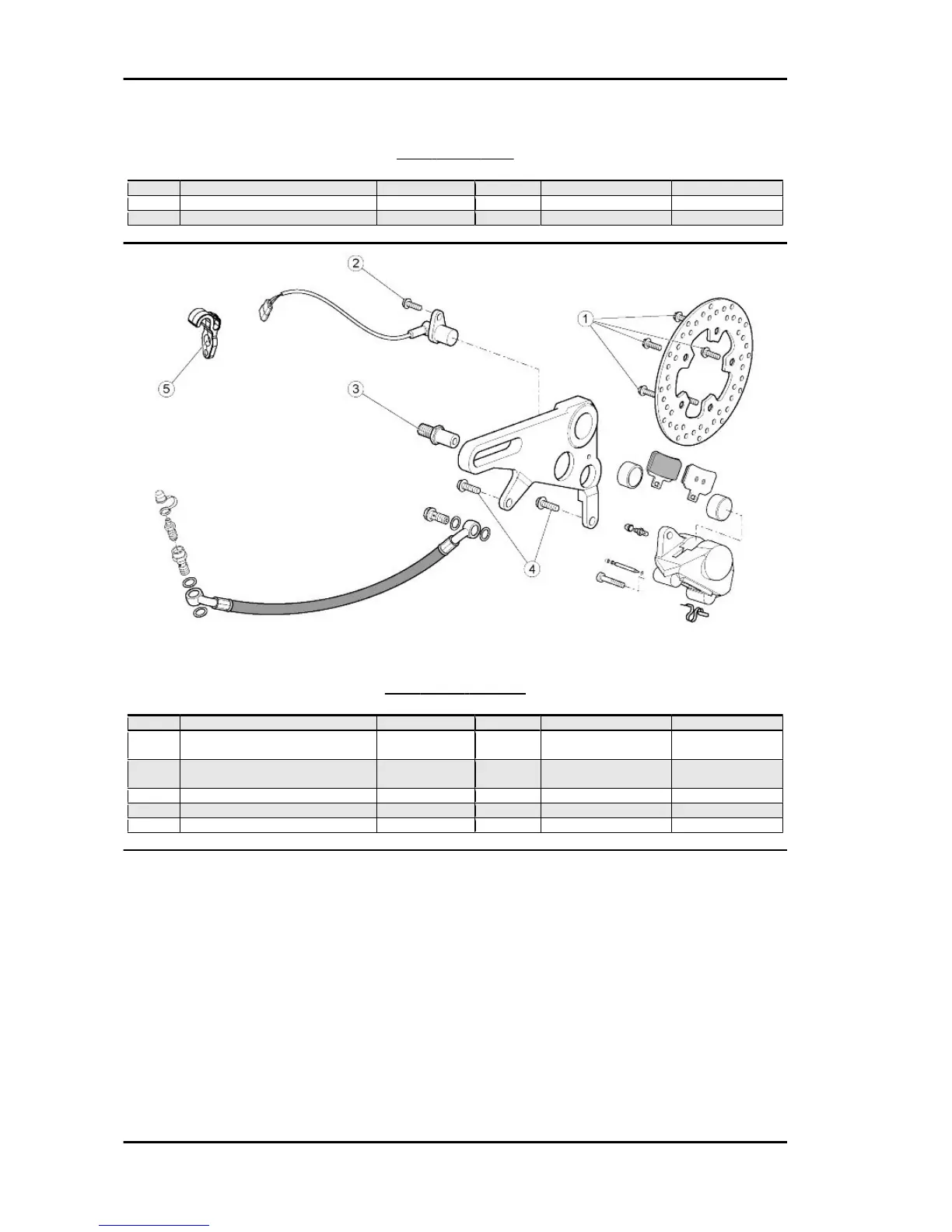

REAR BRAKE CALLIPER
pos.
Description Type Quantity Torque Notes
1 Rear brake disc fixing screws M8 5 30 Nm (22.13 lbf ft) Loct. 243
2 Screw fastening odometer sensor
onto rear brake calliper mounting
M6 1 12 Nm (8.85 lbf ft) -
3 Rear brake calliper mounting plate
lock pin
M12 1 50 Nm (36.88 lbf ft) Loct. 243
4 Rear calliper fixing screw M5 2 25 Nm (18.44 lbf ft) -
5 Brake pipe clamp fixing screw M5 2 4 Nm (2.95 lbf ft) -
- Brake pipe bracket fixing screw M5 2 4 Nm (2.95 lbf ft) -
Characteristics RSV4 R
CHAR - 34

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
