APRILIA RSV4 R User Manual

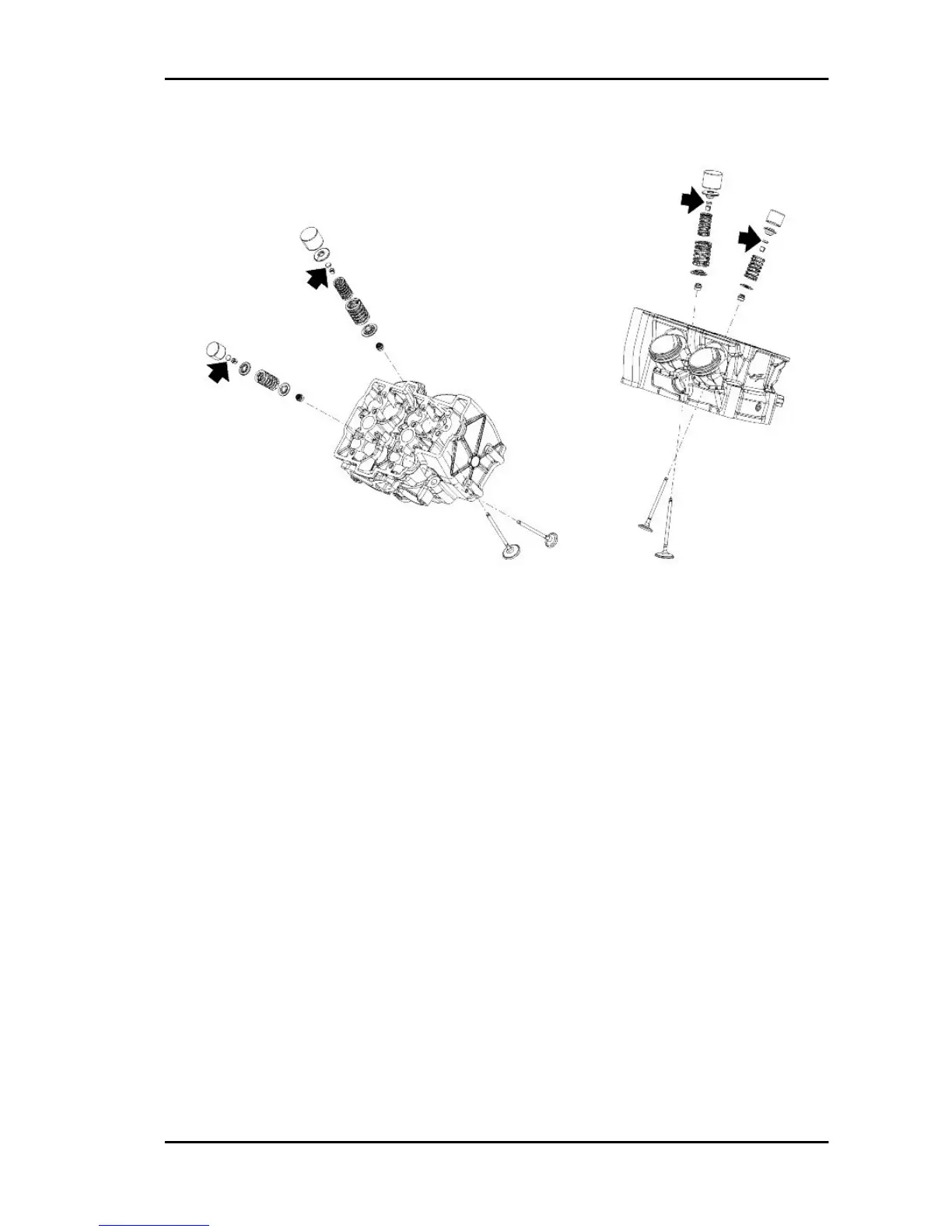

Calibrated pad thickness
Pad thicknesses for adjusting valve clearance correctly:
1.75 mm (0.0689 in)
1.80 mm (0.0709 in)
1.85 mm (0.0728 in)
1.90 mm (0.0748 in)
1.95 mm (0.0768 in)
2 mm (0.0787 in)
2.05 mm (0.0807 in)
2.1 mm (0.0827 in)
2.15 mm (0.0846 in)
2.2 mm (0.0866 in)
2.25 mm (0.0886 in)
2.3 mm (0.0905 in)
2.35 mm (0.0925 in)
2.4 mm (0.0945 in)
2.45 mm (0.0964 in)
2.50 mm (0.0984 in)
2.55 mm (0.1004 in)
2.6 mm (0.1024 in)
2.65 mm (0.1043 in)
2.7 mm (0.1063 in)
RSV4 R Maintenance
MAIN - 81

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
