APRILIA RSV4 R User Manual

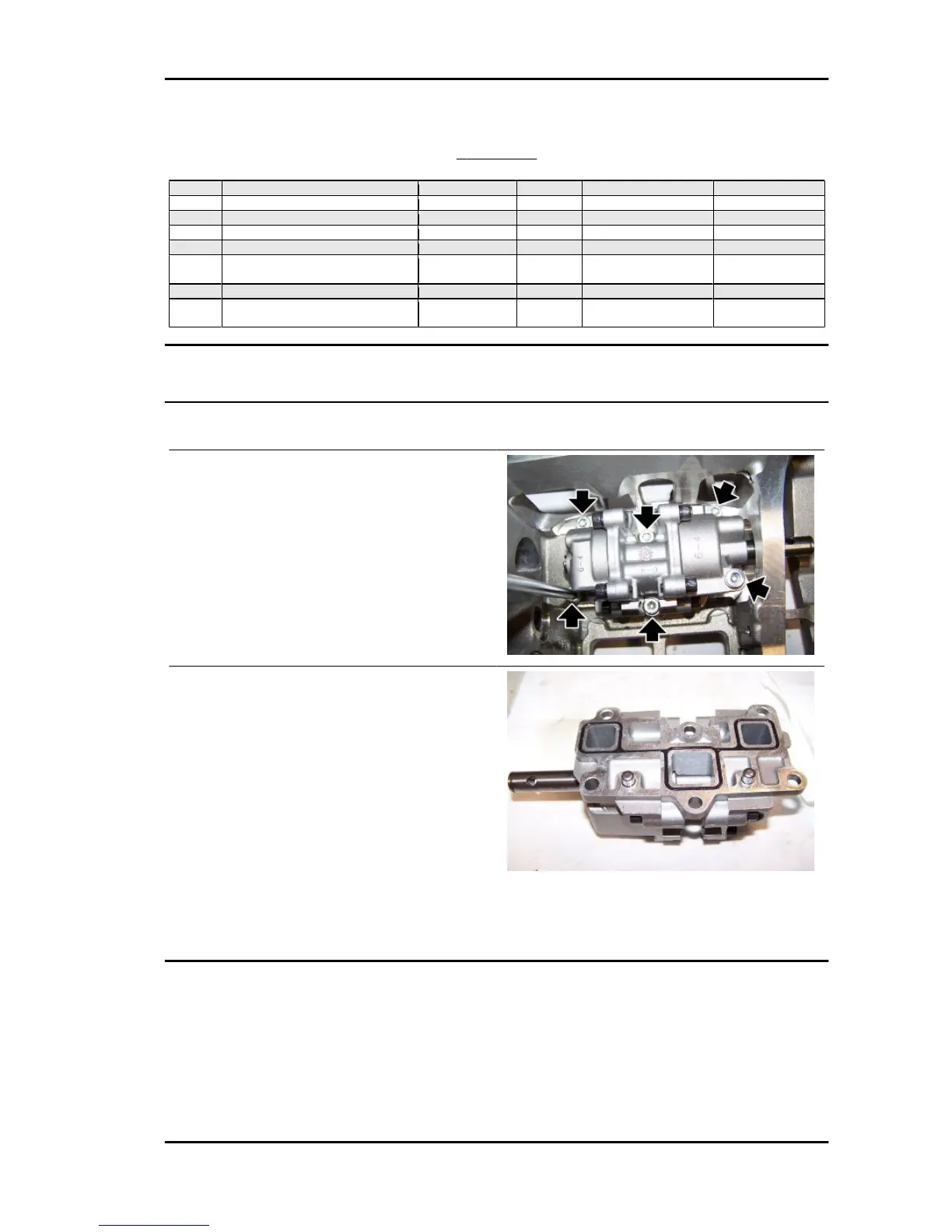

LUBRICATION
pos. Description Type Quantity Torque Notes
1 Oil filter union fixing screw - 1 30 Nm (22.13 lbf ft) -
2 Oil drainage plug - 1 30 Nm (22.12 lbf ft) -
3 Oil sump fixing screws M6x30 7 12 Nm (8.85 lbf ft) -
4 Oil sump fixing screws M6x22 4 12 Nm (8.85 lbf ft) -
5 Oil sump fixing screws M6x25 1 12 Nm (8.85 lbf ft) -
6 Screws fastening the pump to the
crankcase
M6 5+1 10 Nm (7.37 lbf ft) -
7 Oil pipe union fixing screw M6 1 8 Nm (5.90 lbf ft) Loct. 243
- Screw fastening the diffuser in the oil
sump
- 1 10 Nm (7.37 lbf ft) -
Oil pump
Removing
•
Remove the gearbox.
•
Remove the water pump.
•
Unscrew and remove the six screws
fastening the oil pump to the crank-
case.
•
Remove the oil pumps.
OIL PUMP REMOVAL
•
Place the oil pumps on a work table.
•
Remove the gasket.
See also
Removing the gearbox
Water pump
RSV4 R Engine
ENG - 341
