APRILIA RSV4 R User Manual

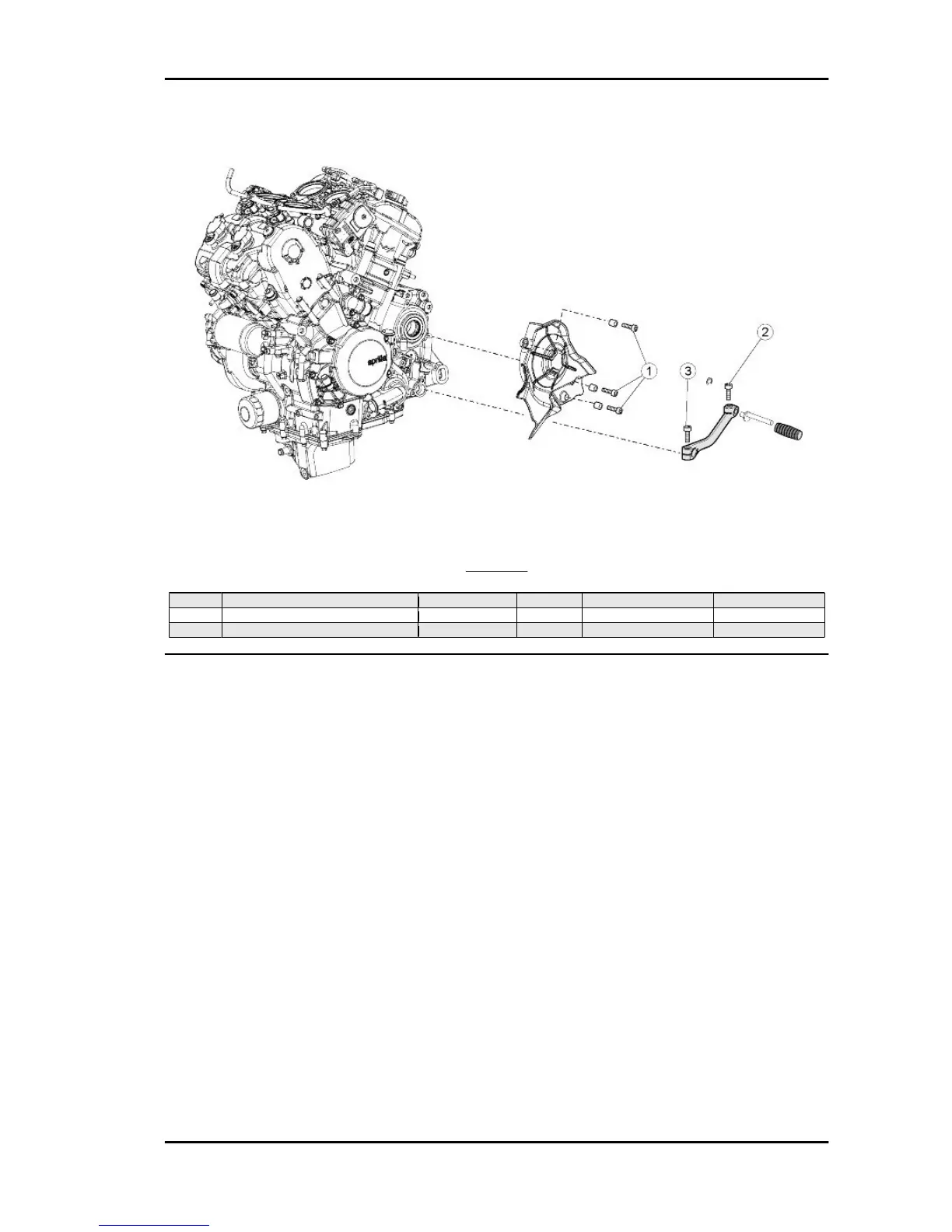

ENGINE
pos.
Description Type Quantity Torques Notes
1 Pinion protector casing fixing screws M6 3 8 Nm (5.9 lbf ft) -
2 Gearbox lever pin fixing screw M6 1 10 Nm (7.37 lbf ft) -
3 Gearbox lever fixing screws M6 1 10 Nm (7.37 lbf ft) -
Vehicle preparation
Proceed as follows to remove from the chassis:
•
Remove the underfairings, the fairing lug and the radiator cowl.
•
Remove the fuel tank and the battery.
•
Disconnect and remove the hand grip position sensor.
•
Remove the throttle body and the filter box.
•
Remove the complete exhaust.
•
Remove the lubrication and cooling system radiators.
•
Remove the side stand.
•
Remove the left hand rider footpeg.
Position the vehicle as described:
•
Fasten an appropriately sized belt for the weight of the vehicle to the semi-handlebars and
to a hoist.
•
Fit the rear and front stands.
•
Fit the specific under-sump engine support plate.
Specific tooling
020864Y Engine mounting plate
RSV4 R Engine from vehicle
ENG VE - 225

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
