APRILIA RSV4 R - Engine-Battery Ground Cable Routing

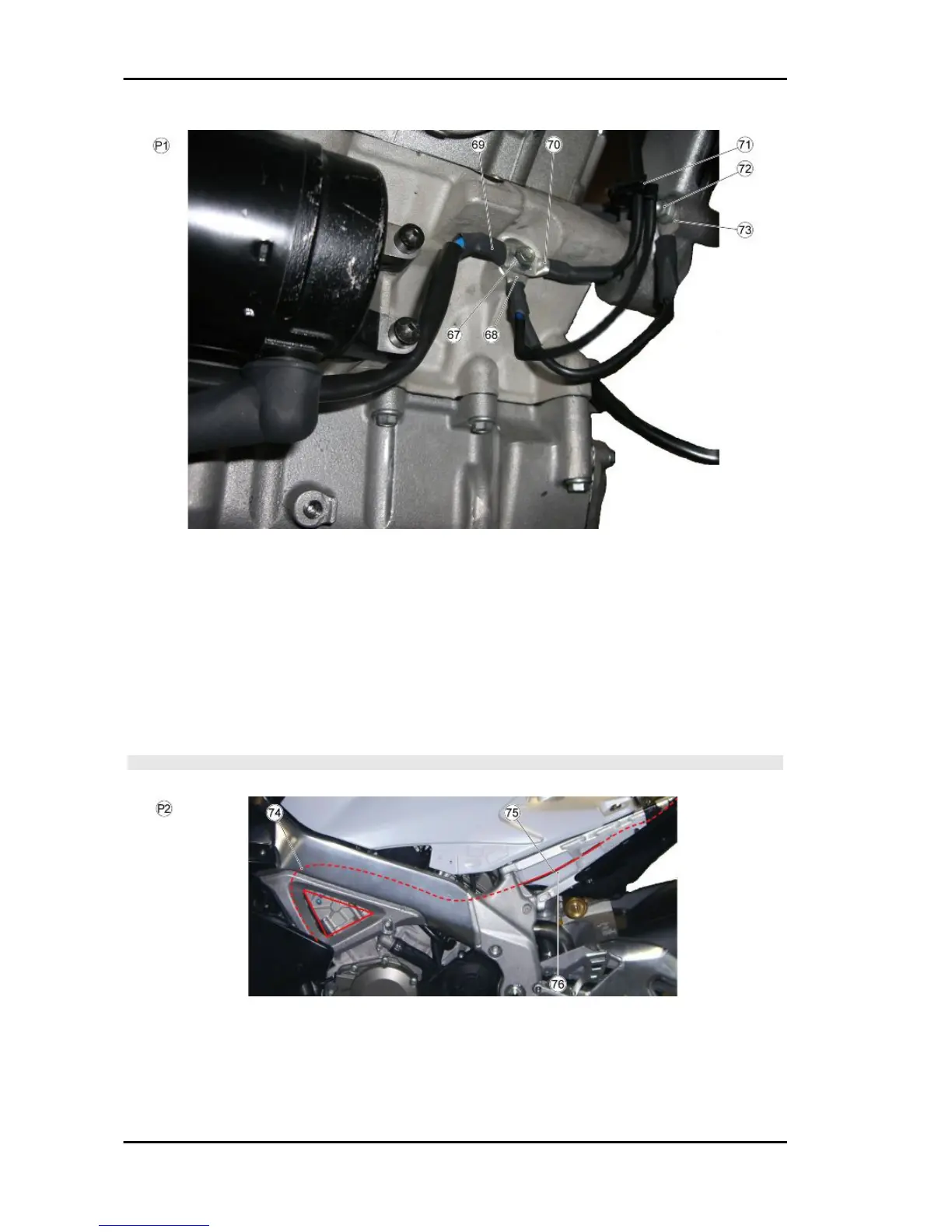

TABLE P2 - ENGINE - BATTERY GROUND CABLE ROUTING
Clamp the engine- battery ground cable harness to the Demand sensor cable harness as far up as
possible.
74. Clamp
75. Battery - engine ground lead
76. Engine - battery ground cable harness routing
The engine - battery ground cable harness must not be visible within the area indicated with a red
triangle.
CAUTION
BE CAREFUL NOT TO INVERT THE TWO GROUND LUG TERMINALS (68) AND (73).
Electrical system RSV4 R
ELE SYS - 114
