Fuel pump
Fuses

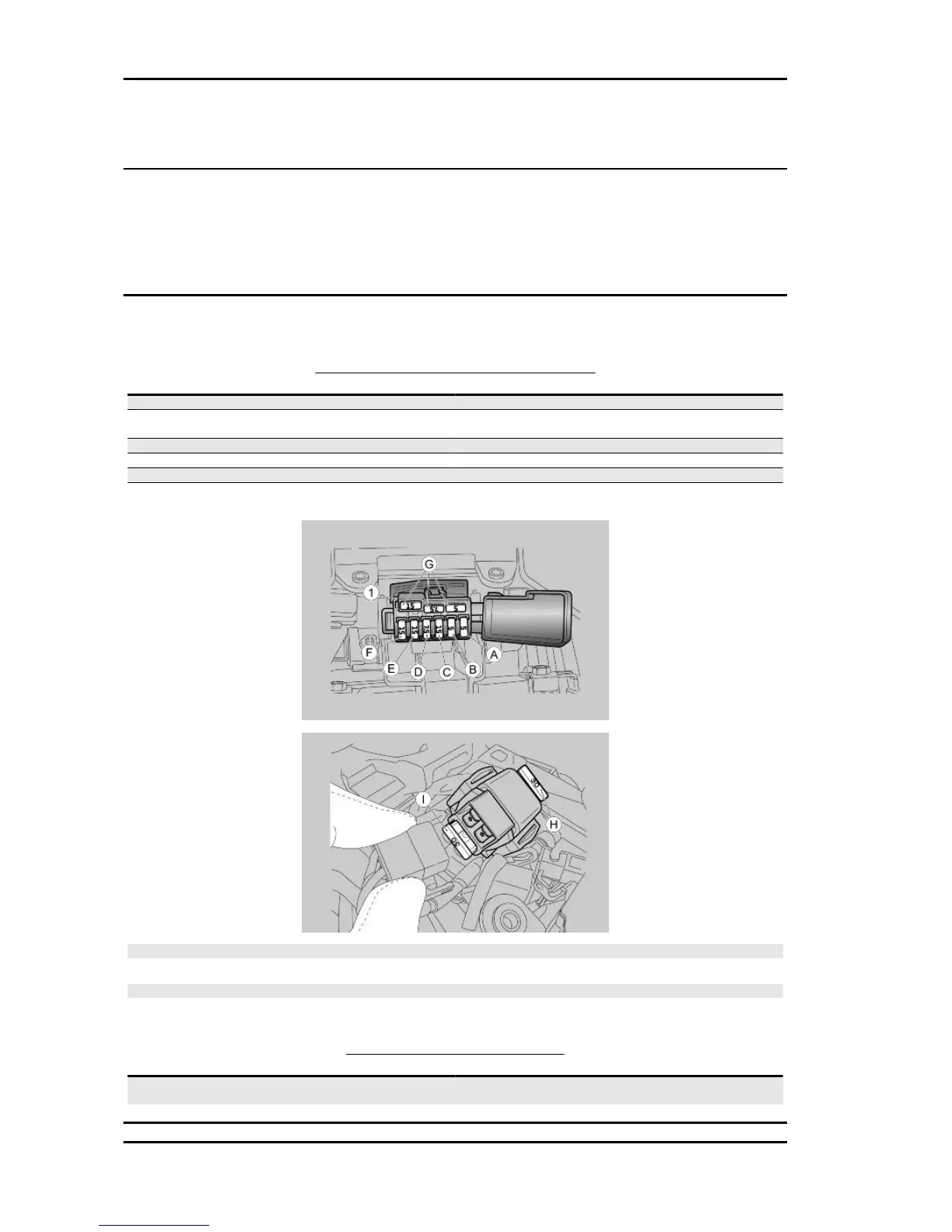

SECONDARY FUSES DISTRIBUTION
Specification Desc./Quantity
A) 5A fuse Stop and running lights relay
B) 5A fuse Instrument panel, turn indicators, speed and instrument panel
diagnostics.
C) 15A fuse Control unit
D) 7.5A fuse Control unit
E) 15A fuse High-beam light/low-beam light, horn and fans
F) 15A fuse Coils, injectors, fuel pump, oxygen sensor and secondary air
valve
CAUTION
THERE ARE THREE SPARE FUSES (G).
CAUTION
THERE IS ONE SPARE FUSE (H).
MAIN FUSES DISTRIBUTION
Specification
Desc./Quantity
I) 30A fuse Battery recharge and vehicle current consumers, injection cur-
rent consumers (red and red/white cables).
Electrical system RSV4 R
ELE SYS - 142

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
