APRILIA RSV4 R User Manual

•

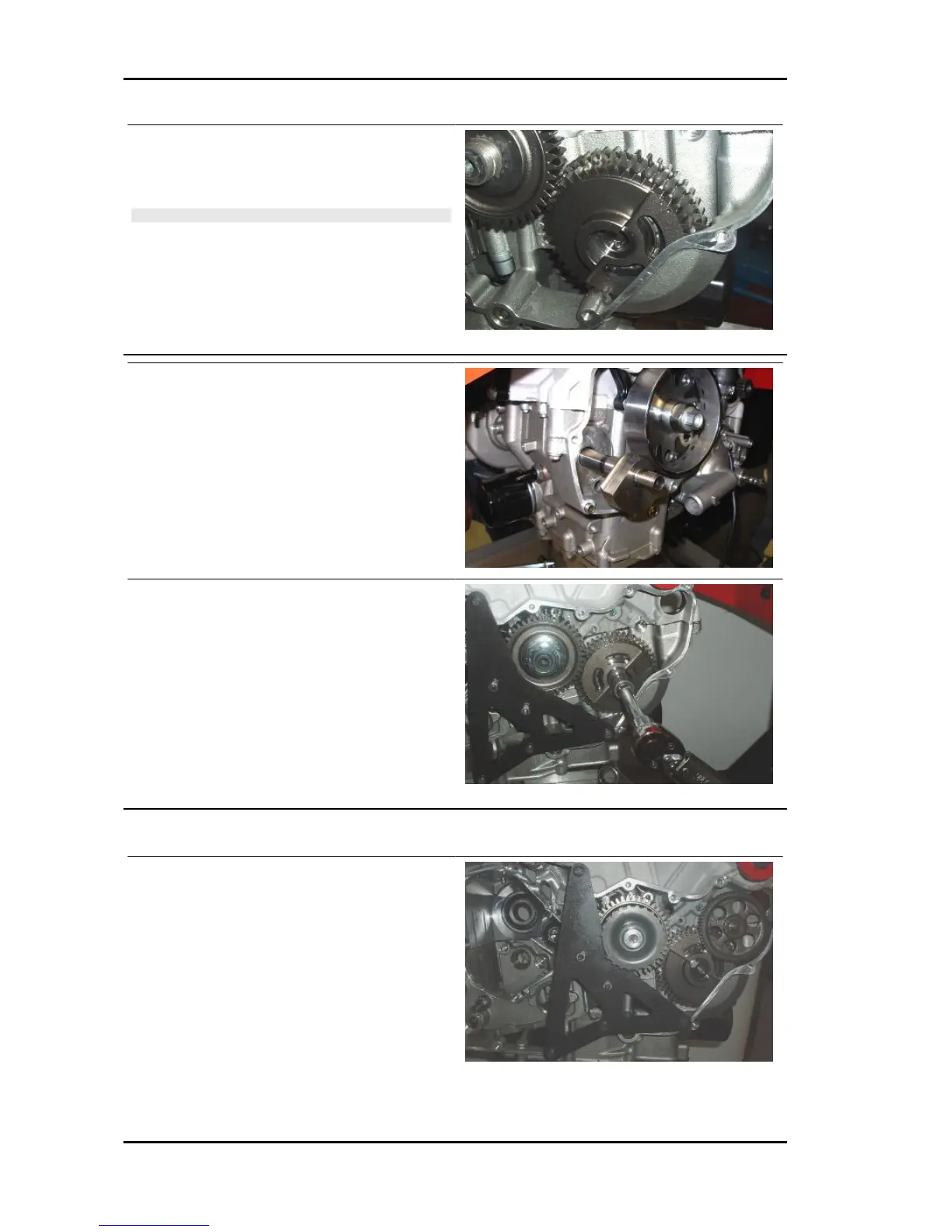

Install the countershaft gear aligning
the references on the countershaft
gear and the primary shaft gear.
NOTE
THE BURIN ON THE PRIMARY SHAFT GEAR TOOTH MUST
BE INSERTED INTO THE SLOT IDENTIFIED WITH TWO
BURINS ON THE COUNTERSHAFT GEAR.
•
Insert the countershaft from the alter-
nator side.
•
Turn the countershaft until aligning the
key seat on the countershaft and on the
gear.
•
Insert the drive key.
•
Turn the nut on the countershaft.
•
Block crankshaft rotation using the
specific tool.
•
Tighten the nut on the countershaft.
Specific tooling
020850Y Primary gear lock
Main transmission gear removal
•
Remove the clutch.
•
Turn the crankshaft and align the ref-
erences on the countershaft gear and
the primary shaft gear.
•
Block crankshaft rotation using the
specific tool.
Specific tooling
020850Y Primary gear lock
Engine RSV4 R
ENG - 318

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
