APRILIA RSV4 R User Manual

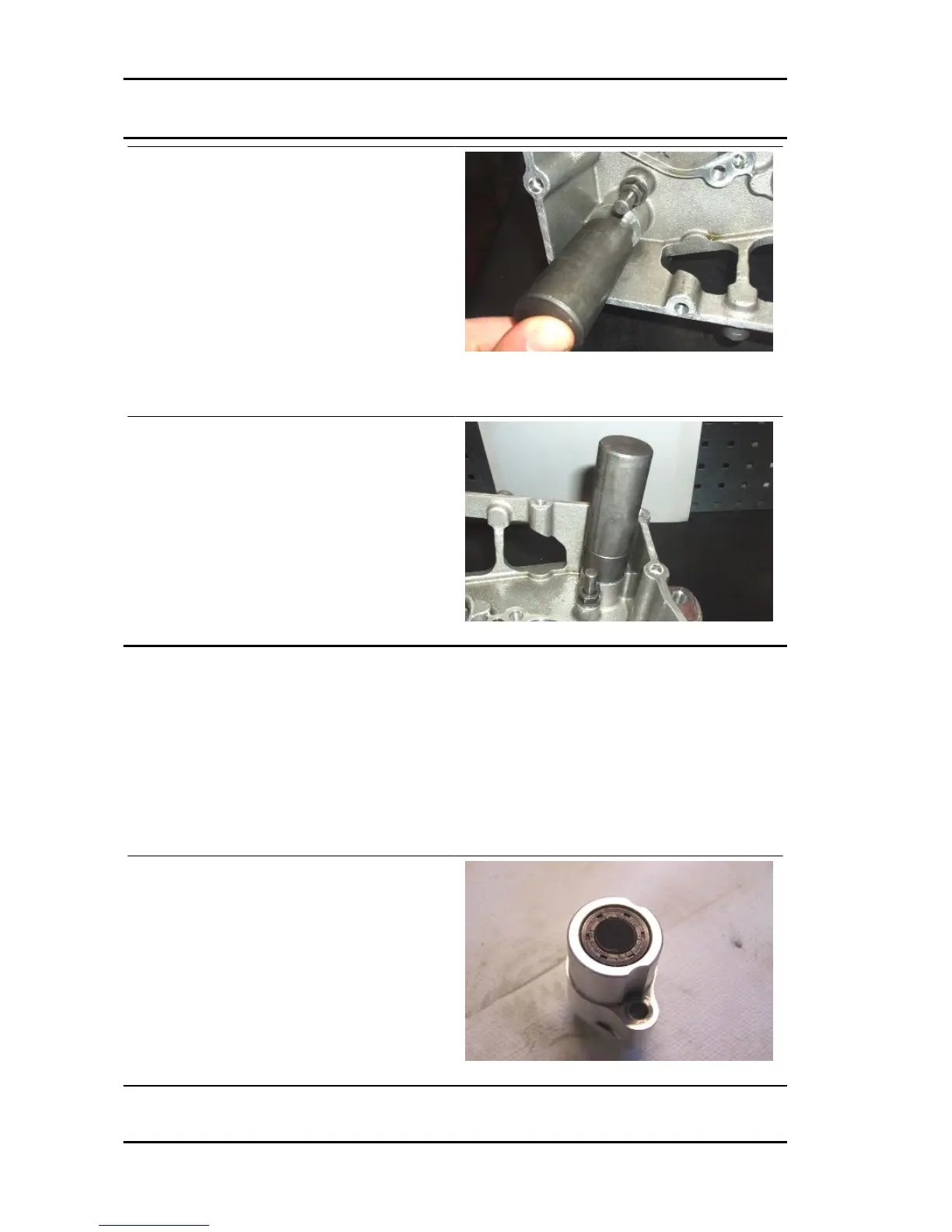

GEARBOX CONTROL ROD ROLLER CAGE,
CLUTCH SIDE
•
Remove the lower crankcase.
•
The specific tool without an adaptor
must be used to remove the gearbox
control rod roller cage from the clutch
side.
Specific tooling
020862Y Gearbox control rod roller cage fitting
punch
•
Fit the adaptor on the specific tool to
insert the roller cage at the controlled
depth.
•
Lubricate the seat and insert the new
roller cage from the clutch side.
Specific tooling
020862Y Gearbox control rod roller cage fitting
punch
GEARBOX CONTROL ROD OIL SEAL AND ROLLER CAGE, SPACER
•
Remove the gearbox control rod spacer.
•
Remove the oil seal and the roller cage.
•
Install a new gearbox control rod roller cage on the spacer, using the specific tool without
an adaptor.
Specific tooling
020862Y Gearbox control rod roller cage fitting punch
•
Position a new oil seal on the spacer
with the writing on the edge of the oil
seal facing outward.
•
Install the oil seal on the spacer using
the specific tool without an adaptor.
Specific tooling
020862Y Gearbox control rod roller cage fitting
punch
Engine RSV4 R
ENG - 254

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
