APRILIA RSV4 R User Manual

ECU

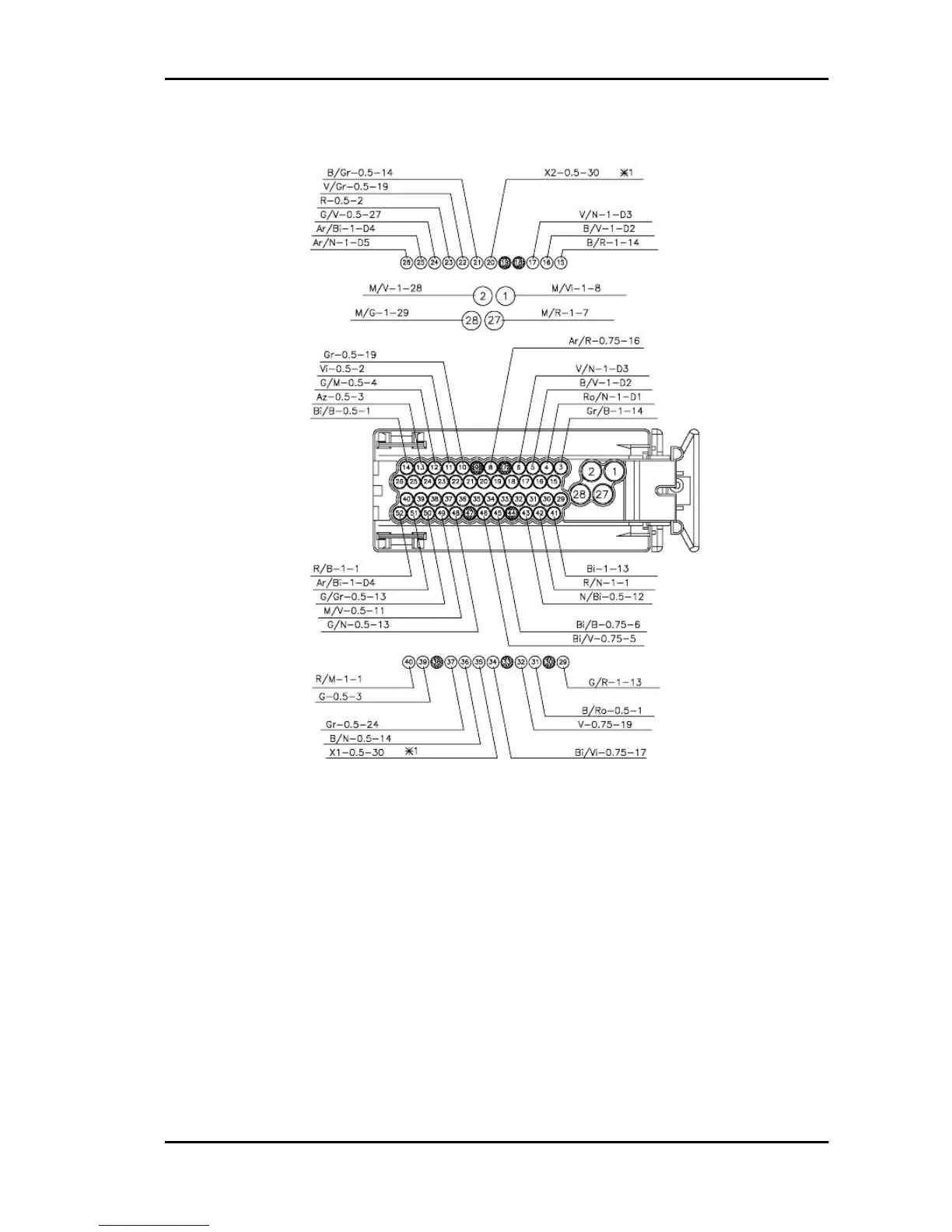

Engine pinout key:
Cylinder 4 coil control output PIN 1
Cylinder 3 coil control output PIN 2
Front throttle motor output (+) PIN 3
Analogue ground connection 2 PIN 4
Power ground connection 1 PIN 5
Analogue ground connection 1 PIN 6/17
Lower cylinder 1 injector control output PIN 8
Lambda sensor input (+) PIN 10
Track D throttle grip input PIN 11
Water temp. sensor input PIN 12
Track B throttle grip input PIN 13
Serial line K for diagnosis PIN 14
RSV4 R Electrical system
ELE SYS - 215

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
