APRILIA RSV4 R User Manual

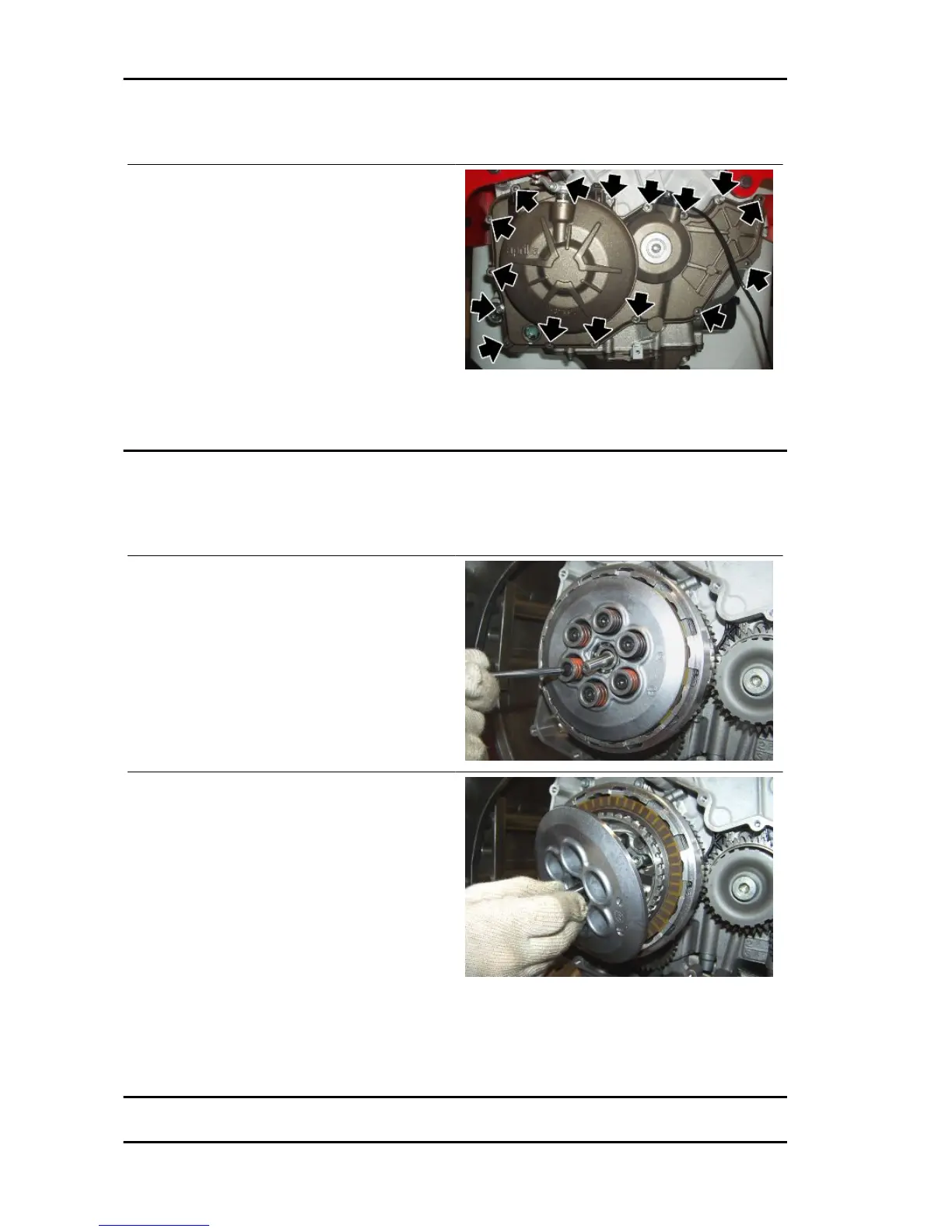

Removing the clutch cover
•
Drain the engine oil.
•
Unscrew and remove the sixteen peri-
metric fixing screws and retrieve the
washers
•
Remove the clutch casing, retrieving the gasket, the two locator pins and the starter motor
transmission gear.
Disassembling the clutch
•
Unscrew and remove the tone wheel fixing screw.
•
Remove the tone wheel.
•
Remove the clutch cover.
•
Unscrew and remove the six screws by
loosening them 1/4 of a turn at a time;
operate in stages and diagonally, and
retrieve the washers and the clutch
springs.
•
Remove the pressure plate and the
complete control rod.
•
Remove the discs.
See also
Removing the
clutch cover
Engine RSV4 R
ENG - 262

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
