APRILIA RSV4 R User Manual

Linkages
Removing
•

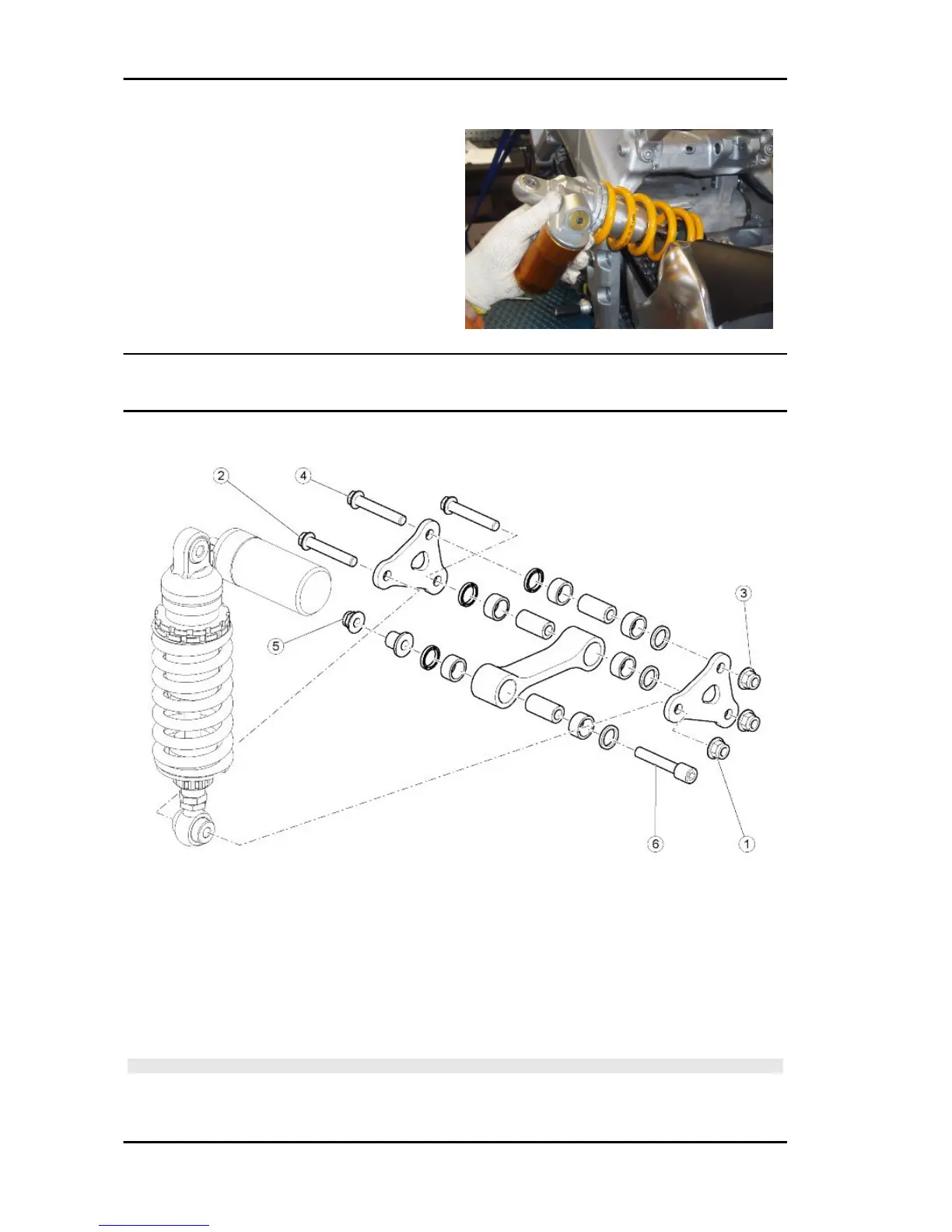

Working from the left side of the vehicle, loosen and remove the nut (1).
•
Slide off the screw (2) from the opposite side.
•
Loosen and remove the nut (3).
•
Slide off the screw (4) from the opposite side.
•
Loosen and remove the nut (5).
•
Slide off the screw (6) from the opposite side.
•
Remove the complete suspension connecting rod assembly unit.
CAUTION
Suspensions RSV4 R
SUSP - 396

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
