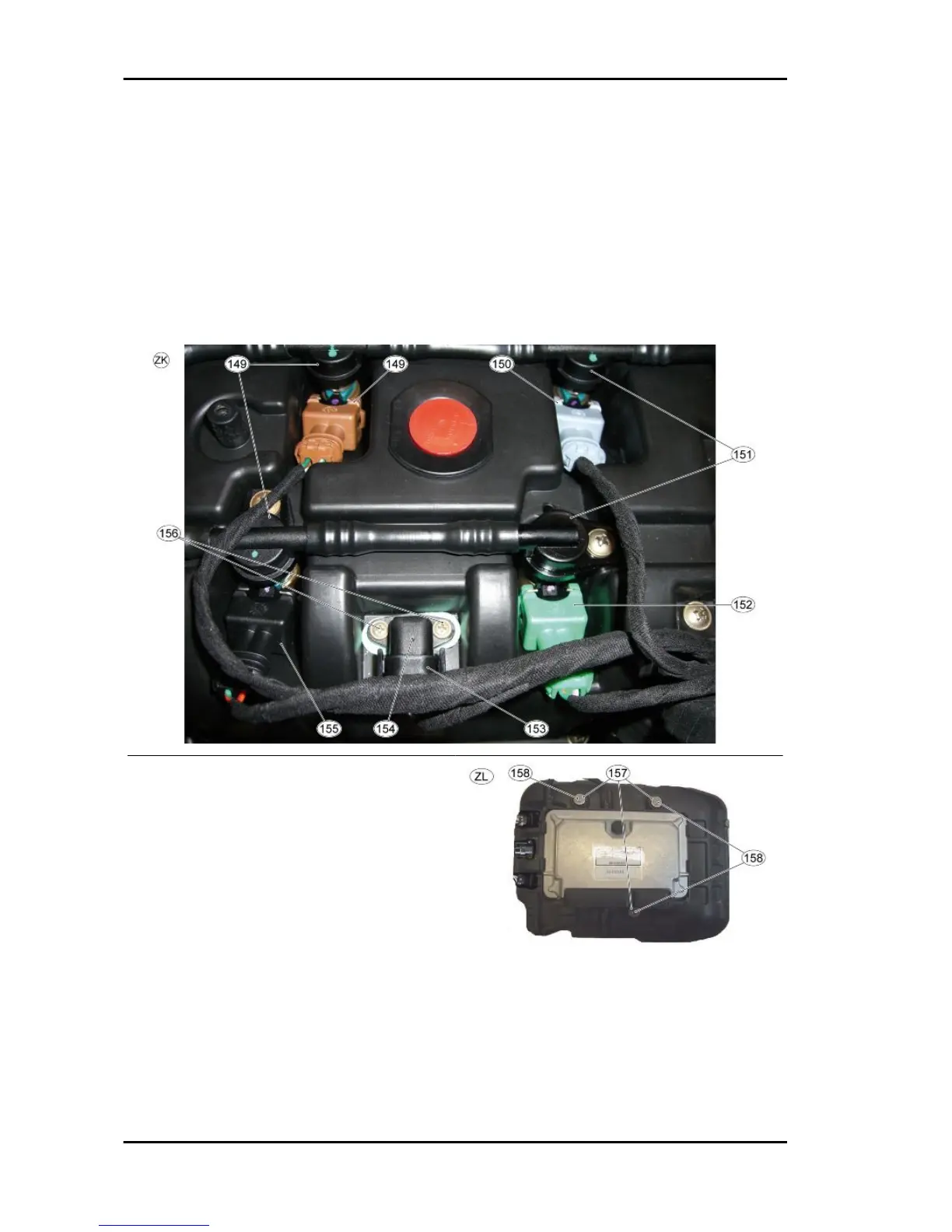

154. Air temperature sensor
155. Upper injector 1 cable harness connector (output "23") - black connector
156. Self-tapping screw
Connect the upper injectors as shown in the figure and according to the following sequence:
Injector 1 (output "23"): BLACK connector
Injector 2 (output "20"): BROWN connector
Injector 3 (output "22"): GREEN connector
Injector 4 (output "21"): GREY connector
TABLE ZL - 7SM CONTROL UNIT FITTING AND
CONNECTION
After connecting the upper injector connections
and the air temperature sensor connector, the
7SM control unit can be fastened, which was pre-
viously fastened to its relative mounting.
157 Washer
158. Self-tapping screw
Electrical system RSV4 R
ELE SYS - 122

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
