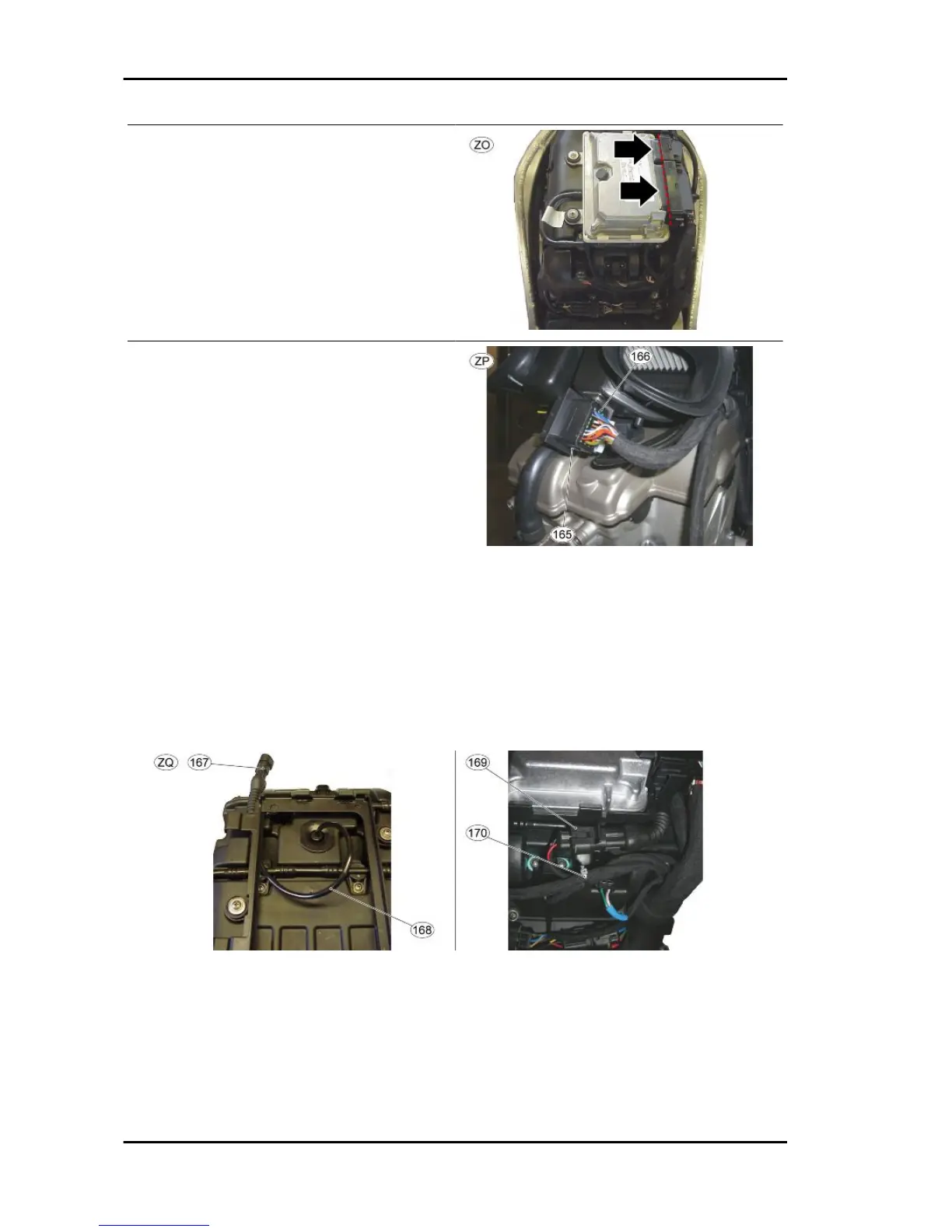

It is advisable to create a jig in order to check the
correct insertion of both connectors.
TABLE ZP - VEHICLE CONNECTOR FASTEN-
ING
The "VEHICLE" (output "1") connector (165) must
be fastened to the mounting with the white slide
pre-fit on the connector itself, in the position indi-
cated in the figure.
165. Vehicle cable harness connector (output "1")
166. Connector mounting
TABLE ZQ - CONNECTORS FOR INTAKE DUCT CONTROL UNIT AND INTAKE DUCT MOTOR
The "Intake duct mot." (output "32") connector (167) must be fastened with a small black clamp (170)
as shown in the figure.
167. Intake duct motor connector (output "32")
168. Cable harness routing
169. Intake duct motor cable harness connection (output "32")
170. Clamp
TABLE ZR (If available)
Clamp (170) the connector (171) together with the main cable harness and rear brake switch connected
as indicated in the figure.
Connect the connector (171) to the control unit.
170. Clamp
171. Intake duct "ECU" cable harness connector (output "31")
Electrical system RSV4 R
ELE SYS - 124
