APRILIA RSV4 R User Manual

41. T-shaped bushing
42. TE M6x30 screw

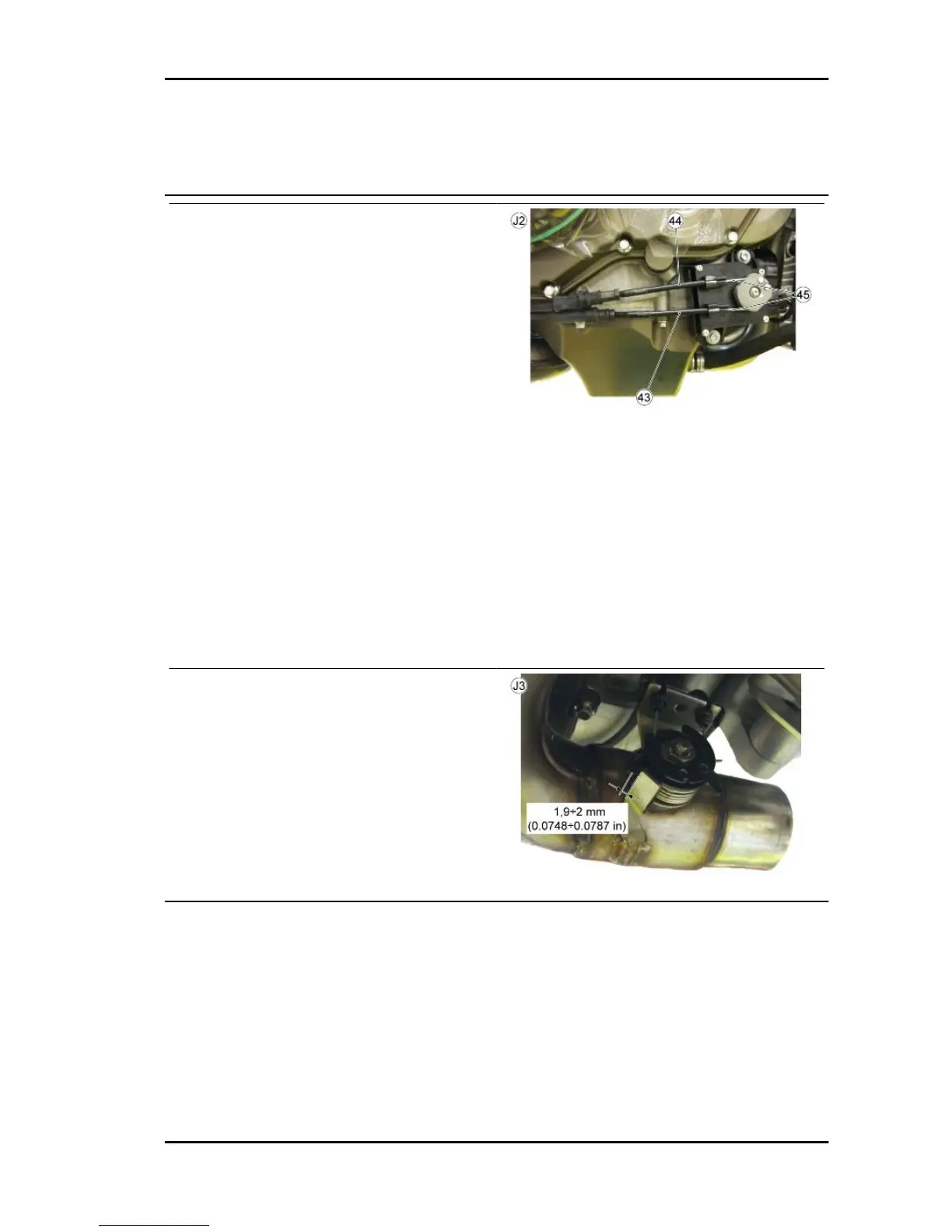

TABLE J2 - EXHAUST VALVE ACTUATOR
Positioning and calibration Actuator - valve
Bowden cable (45) fitting procedure
•
Insert the cables with the set screws
closed in the following sequence:
1. Valve side closing cable (44) (univocal fit-
ting)
2. Actuator side closing cable (44)
3. Valve side opening cable (45) (univocal fit-
ting)
4. Actuator side opening cable (45)
•
Turn the closing cable set screw until
there is a distance of 1.9-2 mm
(0.0748-0.0787 in) between the me-
chanical endstop and the pulley.
•
Finally tighten the lock nut on the set
screw.
TABLE J3 - EXHAUST VALVE ACTUATOR
Positioning and calibration Actuator - valve
Bowden cable (45) fitting procedure
•
Turn the opening cable (43) set screw
until the cable tension is identical to the
closing cable (44).
•
Finally tighten the lock nut on the set
screw.
RSV4 R Electrical system
ELE SYS - 111

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
