APRILIA RSV4 R User Manual

Engine speed sensor P0336
•
signal not valid
Error cause
•
Probable bad contact in the electric circuit detected at PIN 20 - 35 of the ENGINE connector
Troubleshooting
•
Check the electric circuit is in good conditions and the flywheel teeth cleaning and correct
positioning of the sensor in its own housing: if it is not, replace it. If it is OK, replace the
sensor

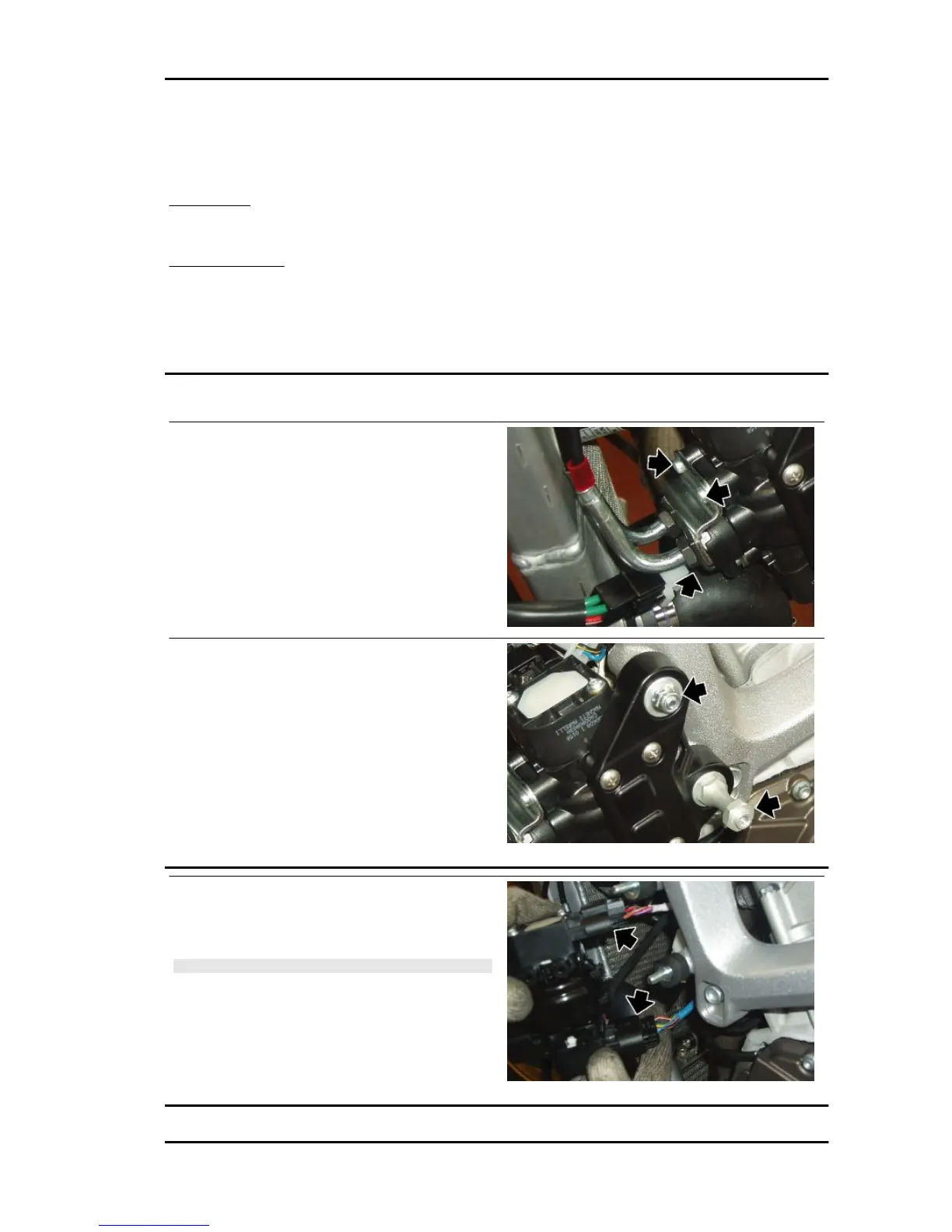

Twistgrip position sensor
Removal
•
Remove the left fairing.
•
Loosen the two throttle cable nuts.
•
Unscrew and remove the three plate
fixing screws.
•
Remove the throttle cables.
•
Unscrew and remove the nut and the
stud bolt.
•
Retrieve the washers.
•
Move the hand grip position sensor,
disconnect the two connectors.
•
Remove the hand grip position sensor.
NOTE
WHEN REFITTING, REMEMBER NOT TO INVERT THE
CONNECTORS.
THE LIGHT BLUE CONNECTOR HAS THE BLUE CABLE
AND THE WHITE CONNECTOR HAS THE WHITE CABLE.
RSV4 R Electrical system
ELE SYS - 155

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
