SADDLE
pos. Description Type Quantity Torque Notes
1 Rider saddle fixing screw M5 2 6 Nm (4.42 lbf ft) -

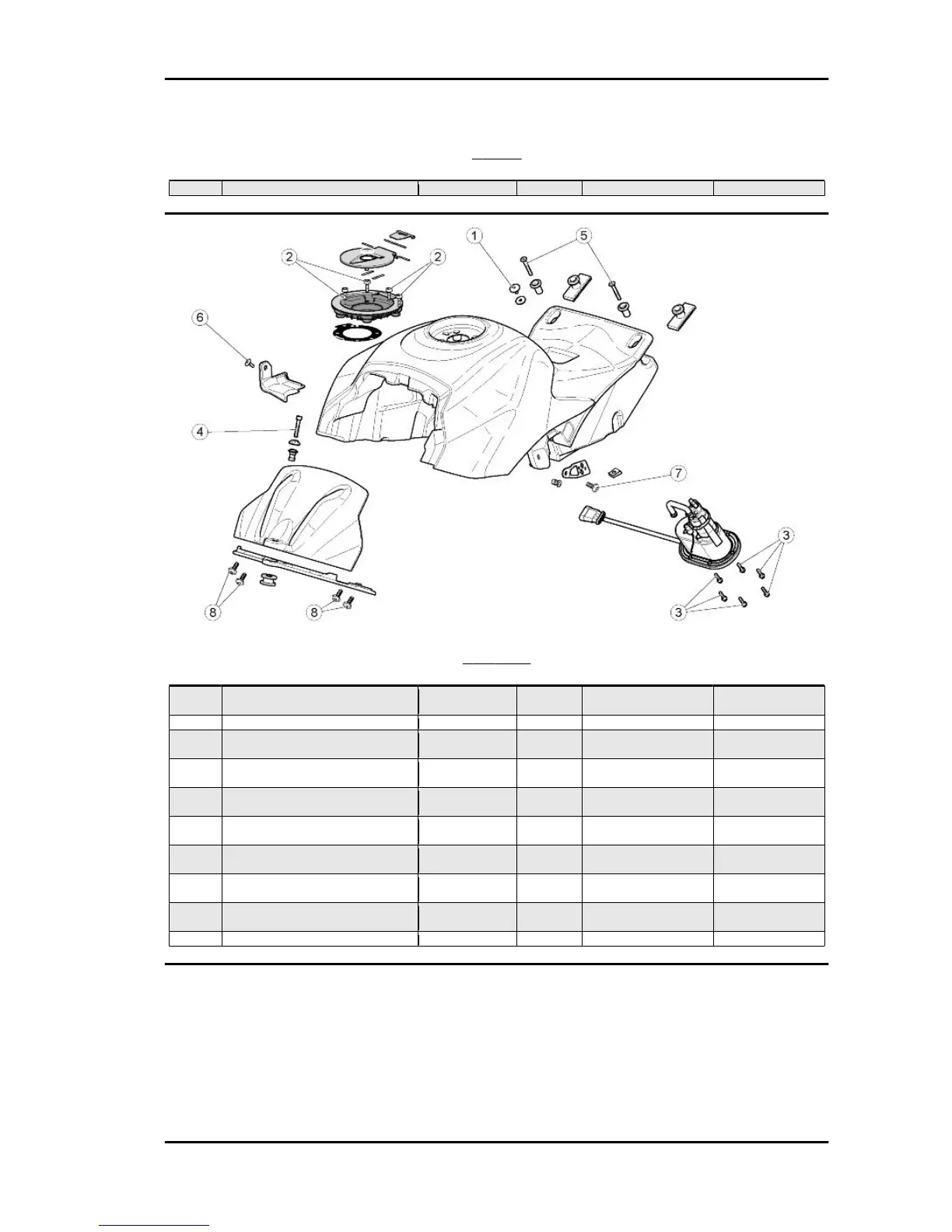

FUEL TANK
pos.
Description Type Quantity Torque Notes
1 Special screw fastening rider saddle
to the tank
M6 1 4 Nm (2.95 lbf ft) -
2 Screws fixing the filler to the tank M5 4 4 Nm (2.95 lbf ft) -
3 Screws fixing the fuel pump flange to
the tank
M5 8 3 Nm (2.21 lbf ft) -
4 Front screws fastening the tank to
the chassis
M6 1 8 Nm (5.9 lbf ft) -
5 Rear screws fastening the tank to the
rear chassis
M6 2 7 Nm (5.16 lbf ft) -
6 Screws fastening plastic fuel pipe
mounting
M5 1 2.5 Nm (1.84 lbf ft) -
7 Left fairing mounting bracket fixing
screws
M5 1 3 Nm (2.21 lbf ft) -
8 Screws fastening structural tank
mounting to tank
M6 4 3 Nm (2.21 lbf ft) -
- Central screw fastening the cover to
the tank
M4 1 0.5 Nm (0.37 lbf ft) -
- Fuel tank breather pipe unions M7 2 3 Nm (2.21 lbf ft) -
RSV4 R Characteristics
CHAR - 25
