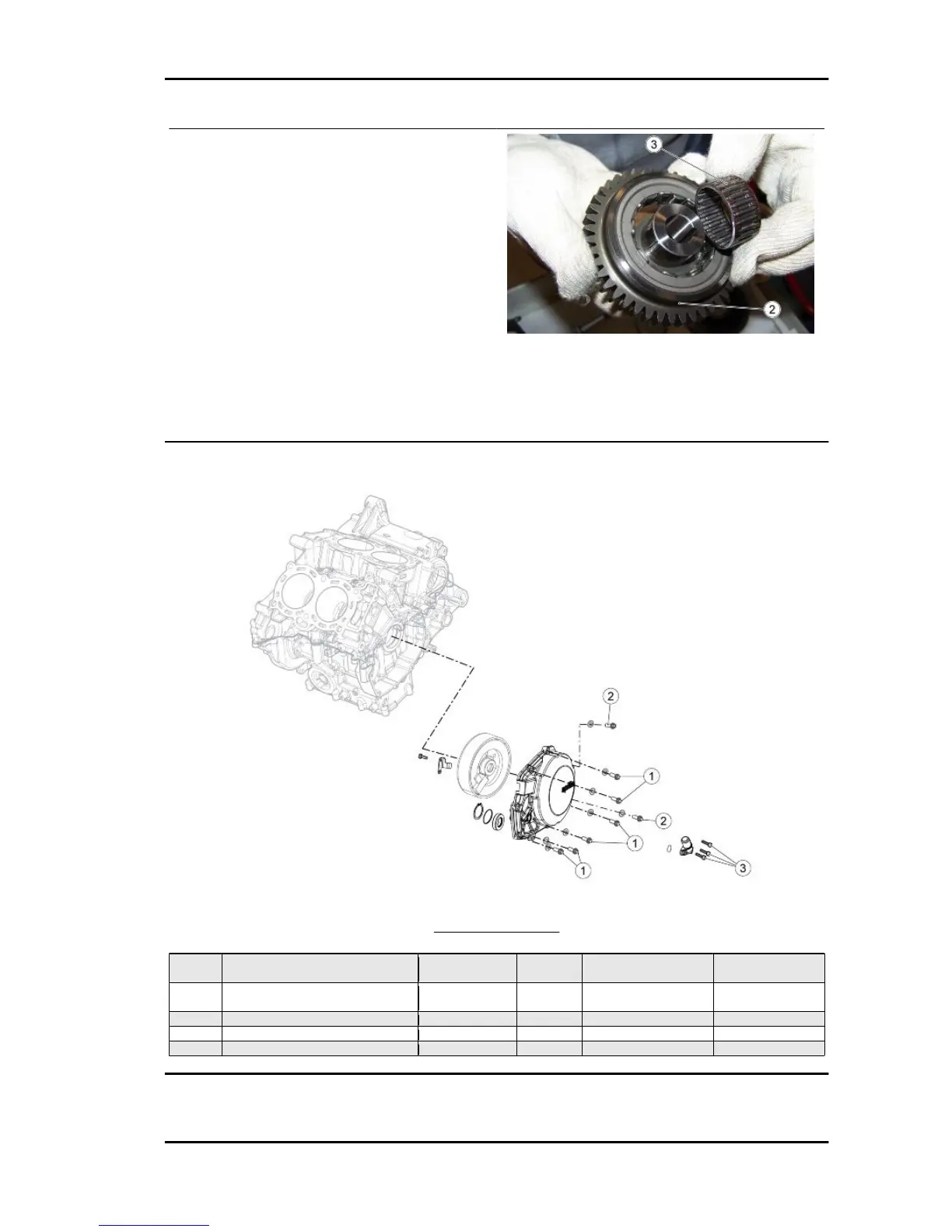

If deformations or broken material are found on the
sliding surface, replace the freewheel gear (2).
Check the freewheel sliding surface (2) for wear.
Make sure that the woodruff key slot is in perfect
condition.
Remove the needle cage (3) and the roller cage (4) from their housings on the freewheel (2) and check
the rollers/needles for wear.
Check for wear on the freewheel sliding surface (2).
Generator side
ALTERNATOR COVER
pos.
Description Type Quantity Torque Notes
1 Screws fastening cover onto centre
pins
M6x25 6 12 Nm (8.85 lbf ft) -
2 Cover fastener screws, alternator
side
M6x40 2 12 Nm (8.85 lbf ft) -
3 Blow-by union fastener screws M5x16 3 7 Nm (5.16 lbf ft) -
- Stator fixing screw UNI 5931 CL8.8 M6x25 3 10 Nm (7.37 lbf ft) Loct. 243
- Flanged screw M5x12 1 6 Nm (4.42 lbf ft) Loct. 243
RSV4 R Engine
ENG - 257
