APRILIA RSV4 R User Manual

Gearbox

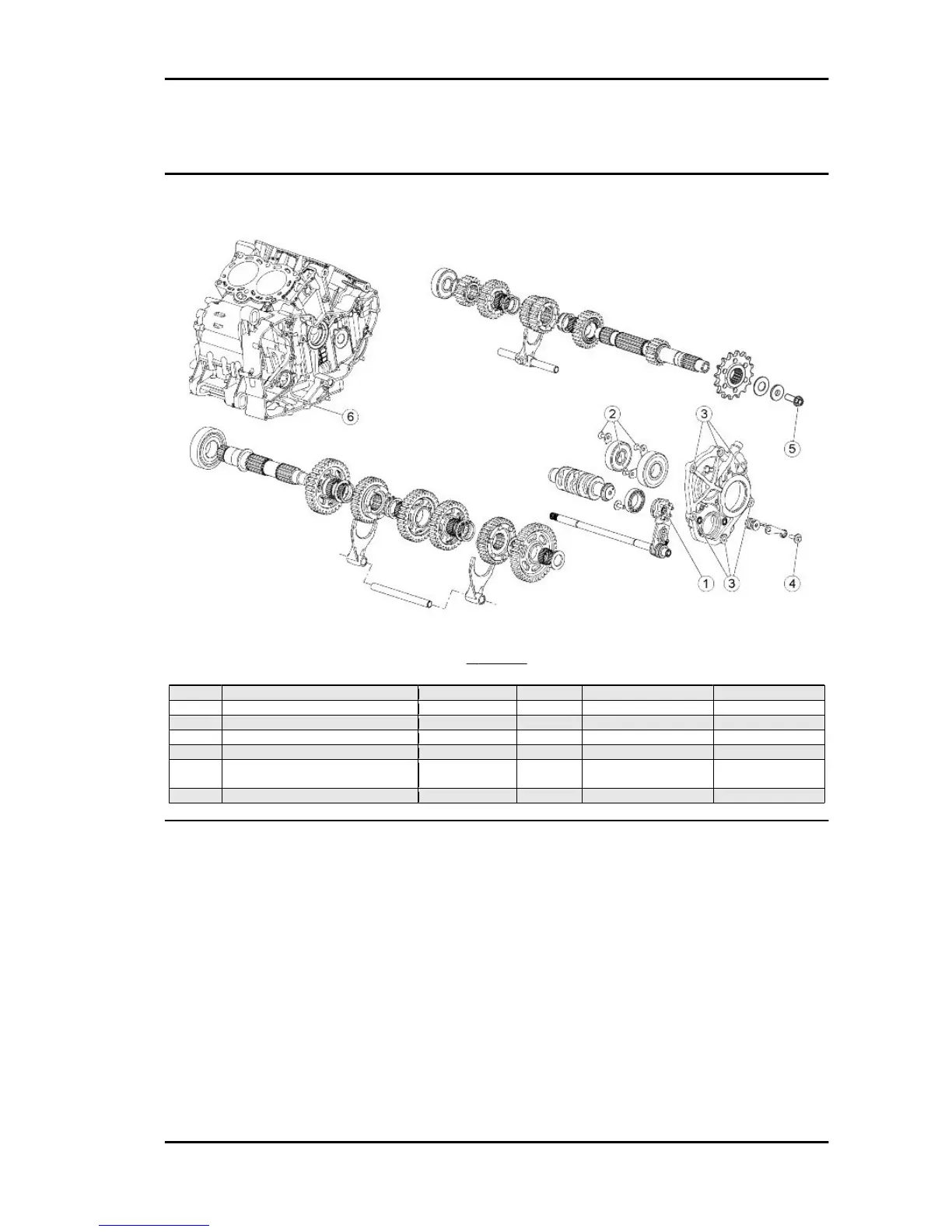

Diagram
GEARBOX
pos.
Description Type Quantity Torque Notes
1 Connector drum fastener screw M6x20 1 10 Nm (7.37 lbf ft) Loct. 243
2 Bearing retainer plate fixing screw M6x16 3 10 Nm (7.37 lbf ft) Loct. 243
3 Flange fixing screws M8x25 6 25 Nm (18.44 lbf ft) -
4 Index lever fixing screw M6 1 10 Nm (7.37 lbf ft) Loct. 243
5 Pinion retainer - 1 50 Nm (36.88 lbf ft) Loct. 243
6 Screw retaining pre-selector on
crankcase
- 1 25 Nm (18.44 lbf ft) Loct. 270
- Gear indicator fixing screw M5x15 2 6 Nm (4.42 lbf ft) -
Removing the gearbox
•
Remove the gearbox selector.
•
Remove the clutch bell.
•
Remove the gear sensor from the flywheel side.
RSV4 R Engine
ENG - 245
