APRILIA RSV4 R User Manual

•

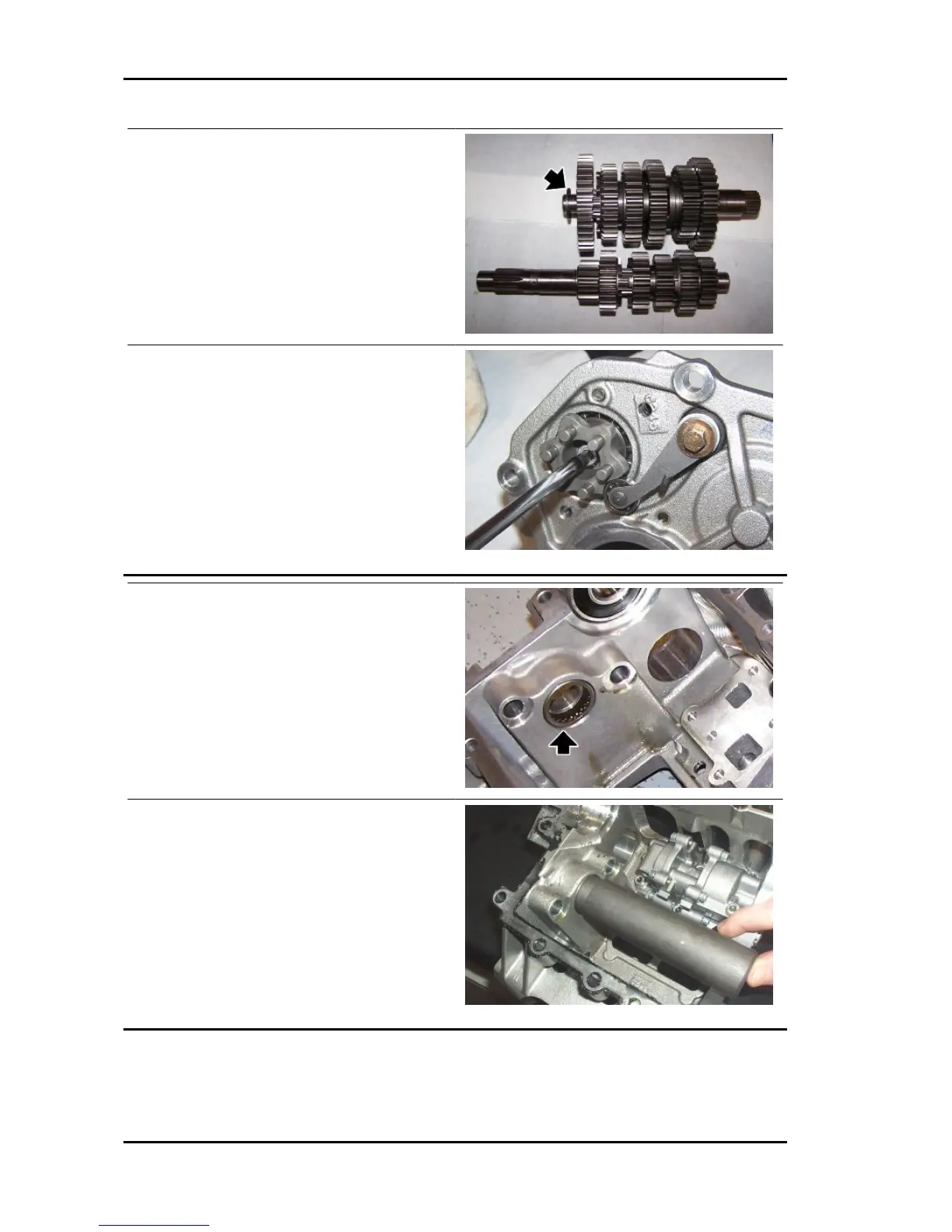

Remove both gearbox shafts from the
cover.
•
Collect the shim washer that is located
on the secondary shaft between the
shaft and the cover.
•
Unscrew and remove the screw.
•
Remove the selector drum.
DESMODROMIC GEARBOX CONTROL ROD
DRUM ROLLER CAGE, ALTERNATOR SIDE
•
Remove the lower crankcase.
•
A suitable extractor must be used to
remove the desmodromic gearbox
control rod drum roller cage from the
alternator side.
•
A specific punch is required to install
the desmodromic gearbox control rod
drum roller cage.
•
Lubricate the seat and insert the new
roller cage.
Engine RSV4 R
ENG - 248

APRILIA RSV4 R Specifications

General

Displacement	999.6 cc
Torque	115 Nm @ 10, 000 rpm
Transmission	6-speed
Frame	Aluminum dual beam chassis
Seat Height	845 mm
Dry Weight	179 kg
Bore x Stroke	78 x 52.3 mm
Front Tire	120/70 ZR17
Rear Tire	190/55 ZR17
Wheelbase	1420 mm
Power	180 hp @ 12, 500 rpm
Front Suspension	Upside-down fork, 43 mm
Front Brakes	Dual 320 mm discs, radial calipers
Rear Brakes	220 mm disc, Brembo caliper
Fuel System	Fuel injection
Fuel Capacity	18.5 L (4.9 US gal)
